2024 Hydra - Glide Revival
To celebrate its 75th anniversary, a champion of the Panhead era is resurrected with the release of the limited-edition 2024 Hydra-Glide Revival motorcycle.
KEY FEATURES

The slash

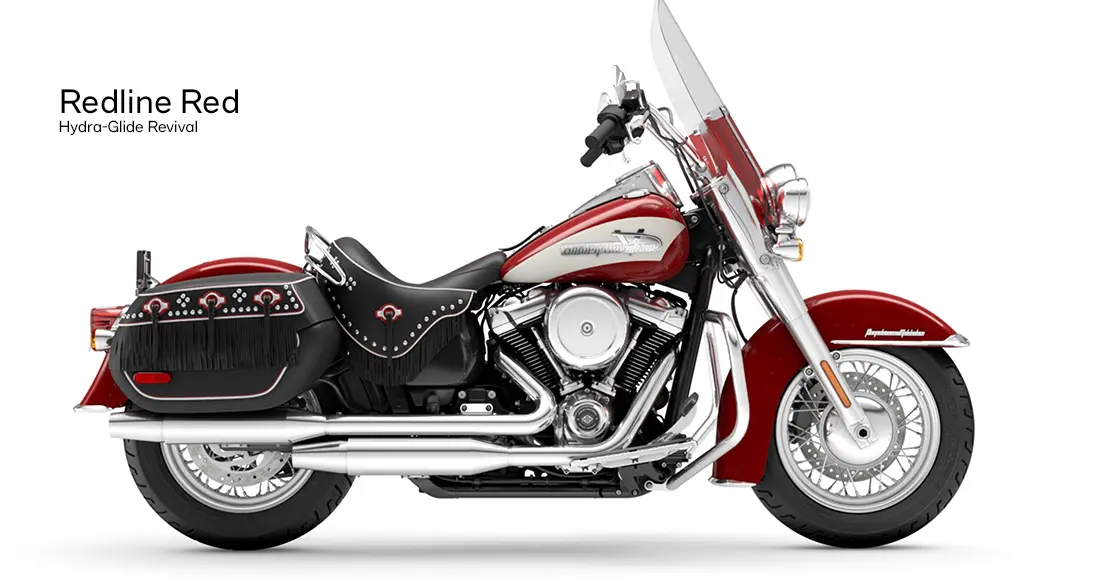

The famous two-tone “slash” color scheme from the 1956 model year is reintroduced in Redline Red and Birch White.

Seat and side bag
Inspired by a 1956 custom FLH, the solo seat and saddlebags feature candy-colored rose trim, white stitching, and red stitching.

Two-tone windshield
The Hydra-Glide Revival's removable two-tone windshield is a period piece with a matching Redline finish.

Limited Edition
Limited to just 1,750 units, each motorcycle features “Hydra-Glide Revival” badging, serial numbers on the handlebar riser covers and “Icons Motorcycle Collection” graphics on the rear fender.

Milwaukee-Eight ™ 114 Engine
The Panhead's 74 cubic inch engine was a marvel in the early days of American highways, but it still couldn't compete with today's Milwaukee-Eight 114 V-twin, which delivers modern performance and the classic Harley-Davidson look, sound and feel.

Speed control system
While cruise control was first introduced in the 50s and wasn’t available on the original Hydra-Glide, we’re sure it will be appreciated by 50s riders and other touring riders.

Screamin' eagle™ High-Flow air filter
Any old tuner will tell you to "let your engine breathe," which is why a Screamin' Eagle High-Flow air filter comes standard on the Hydra-Glide Revival.

Softail™ Chassis
The modern Softail chassis’ hidden, lowered monoshock suspension gives it a strong, vintage look without the need for a traditional waistband.
DETAILED SPECS
Dimensions
Length | 2,415 mm. |
Seat Height, Laden | 685 mm. |
Height from ground | 120 mm. |
Front fork offset | 30 |
Rear range | 145 mm. |
Wheelbase | 1,630 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 130/90B16,73H,BW |
Rear tire specifications | 150/80B16,77H,BW |
Fuel capacity | 18.9 liters |
Engine oil capacity (with filter) | 4.7 liters |
Shipping weight | 319 kg. |
Ready to ride weight | 332 kg. |
Luggage capacity - volume | 0.043 m. 3 |
Engine
Engine | Milwaukee-Eight ™ 114 |
Cylinder size | 102 mm. |
Stroke duration | 114.3 mm. |
Engine capacity | 1,868 cc |
Compression ratio | 10.5:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | Short catalytic converter 2-into-2 |
Capacity
How to test engine torque | EC 134/2014 |
Engine torque | 156 Nm |
Engine torque (rpm) | 3000 |
Horsepower | 91 hp / 68 kW at 5020 rpm |
Right turning angle (degrees) |
27.4
|
Left turning angle (degrees) |
27.4
|
How to test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive System
Main propulsion system
| Chain gear ratio 34/46 |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.454
|
Gear Ratios (overall) 3rd | 4.793
|
Gear Ratios (overall) 4th | 3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
| 49mm Dual Bending valved telescopic fork with triple clamp aluminum shock column; Integrated dual-value spring; "beer can" cap |
Rear shock | Independent hidden piston, single shock with spring, 43 mm stroke and Cam-style preload adjustment. |
Type of front wheel | Chrome steel spoke wheels |
Type of rear wheel | Chrome steel spoke wheels |
Types of brake calipers | 4 front pistons fixed and 2 rear pistons floating |
Brake disc type | Constant expansion brake disc |
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and indicators, Zeppelin style tail lights, front turn signals - Bullet style, rear turn signals - Bullet style light bar. |
Gauges
| 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer. |
Color Options
Redline Red | ฿1,316,000 |
