COLOR OPTIONS

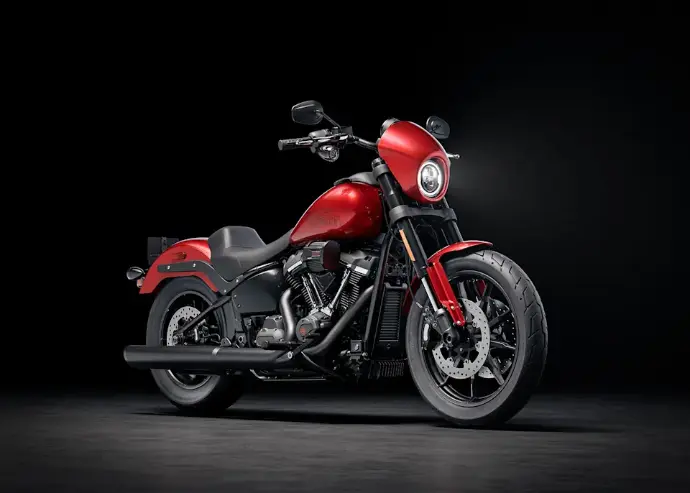

2025 Low Rider S
With bold styling, an aggressive stance, and unrelenting power from the Milwaukee-Eight® 117 High Output V-Twin Engine
the Low Rider S is a custom-style cruiser that is ready to rip from the factory.
KEY FEATURES

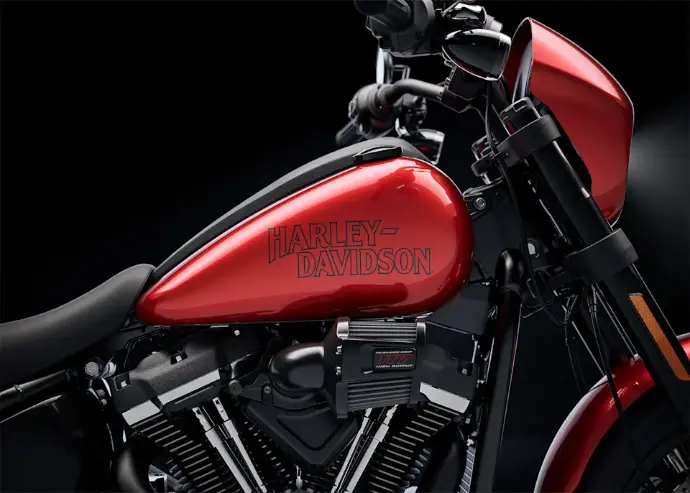

TRIM + GRAPHICS
New Performance Red accents on the intake, timing cover, and derby cover pop against the contrast of matte and gloss black finishes—an exclusive detail reserved for Harley-Davidson performance-oriented motorcycles like the Low Rider® ST and Sportster® S.

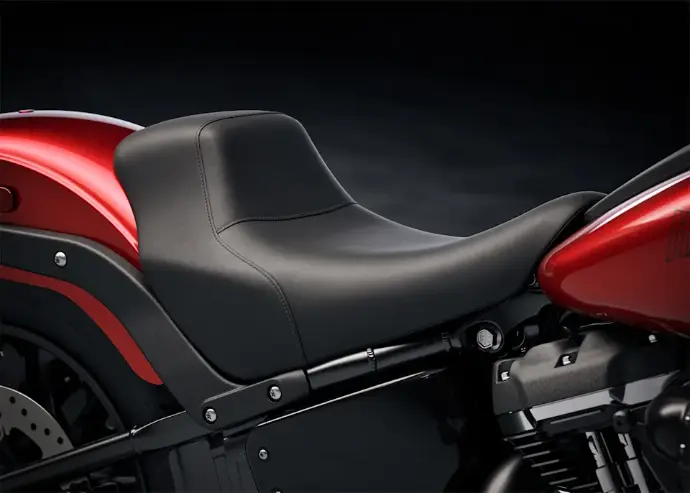

SOLO SEAT
Steep-backed solo seat provides support for hard launches and rapid acceleration.
PREMIUM PAINT
Five premium paint options to match your personal style, including Factory Custom color Mystic Shift, which changes from a dark gunmetal to purple to blue, and finally to an almost orange in full sunlight.

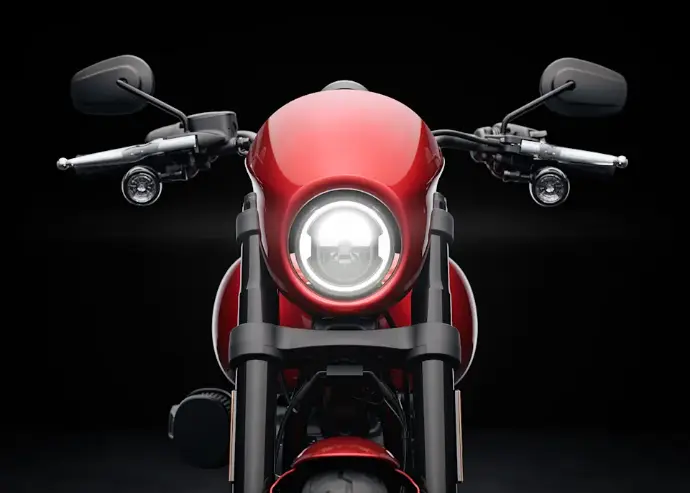

NEW ALL-LED LIGHTING
Light up the road with a bright 5.75-inch LED headlight, and let LED turn indicators and taillight give clear signals of where you’re going.

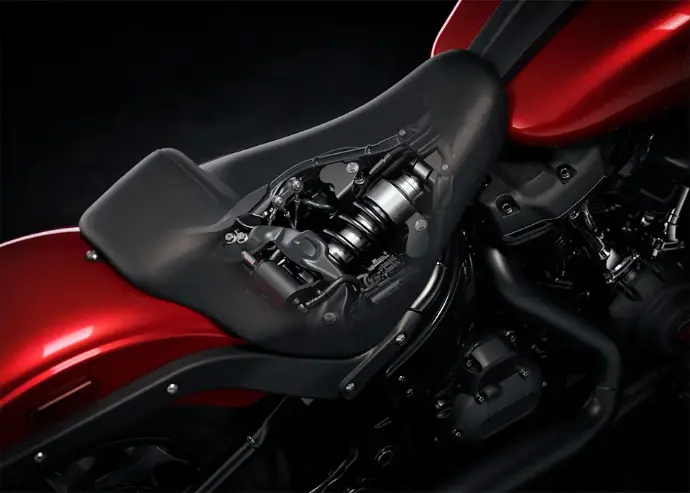

RETUNED REAR SUSPENSION
A tall monoshock kicks up the rear end, giving you extra cornering clearance when you're pushing the limits.

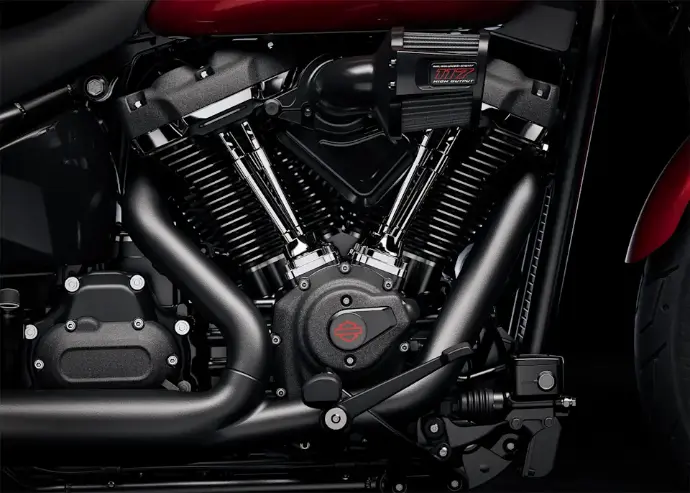

MILWAUKEE-EIGHT® 117 HIGH OUTPUT V-TWIN ENGINE
High Output Milwaukee-Eight® 117 is a new engine variant that builds on the standard 117, delivering more power at higher RPMs for riders want to push their bike to the limit.

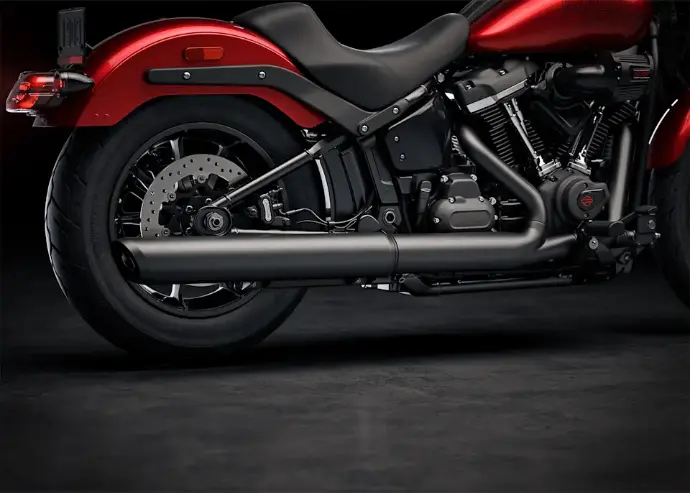

NEW TWO-INTO-ONE EXHAUST
Lightweight and blacked-out, the new exhaust system delivers strong performance and a streamlined look while providing a base for future performance-based customization.

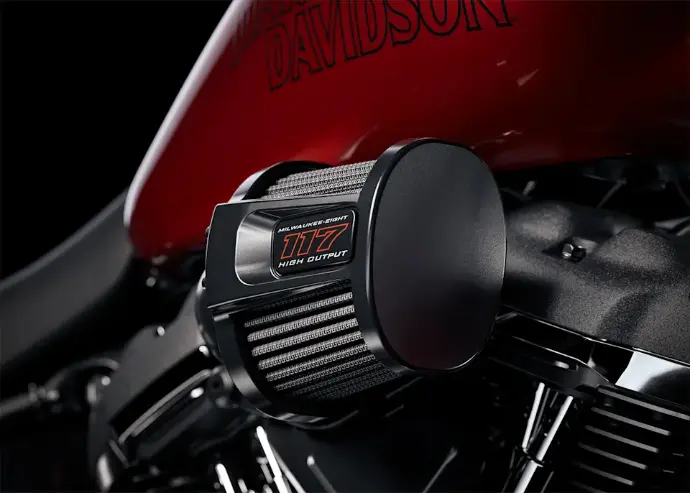

HEAVY BREATHER INTAKE
Heavy breather intake is angled into the wind for high-flowing performance and aggressive style.

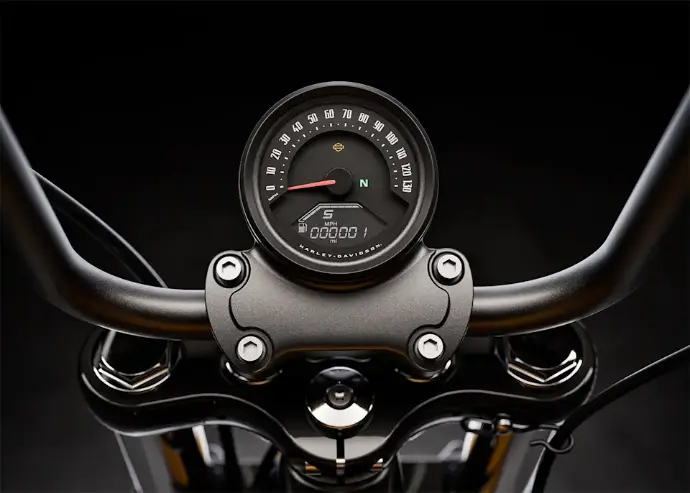

NEW SELECTABLE RIDE MODES + FOUR-INCH DISPLAY
The four-inch display features a large, easy-to-read analog gauge positioned above an LCD screen. Hand controls enhance ergonomics and give you quick access to new selectable Ride Modes (Road, Rain, Sport), so you can fine-tune your ride like never before.

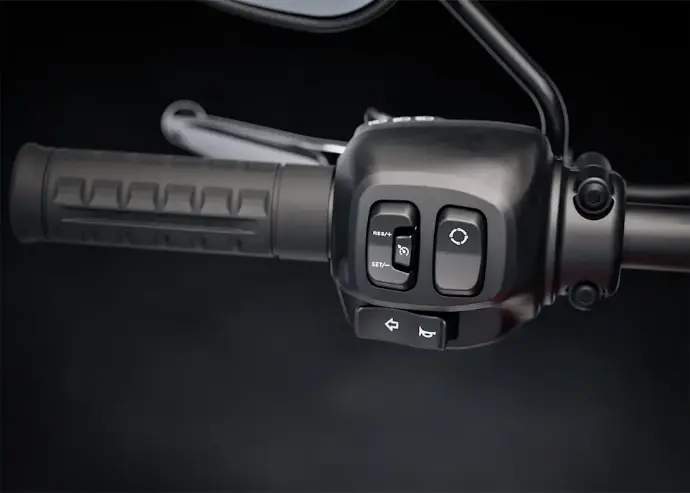

NEW HAND CONTROLS
Updated hand controls accommodate Rider Safety Enhancements like Cruise Control and Traction Control, while an adjustable brake lever lets riders tune ergonomics to their preferences.

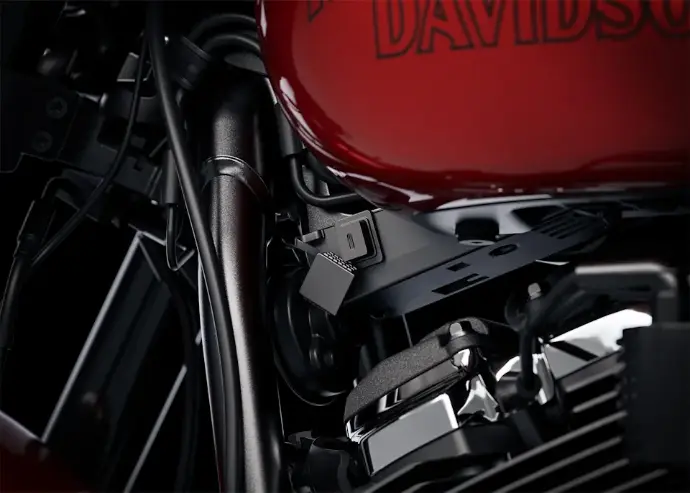

NEW USB-C CHARGING
USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
DETAILED SPECS
Dimensions
Length |
92.9 in. |
Width | 35 in. |
Seat Height, Unladen
| 27 in. |
Ground Clearance
| 5.7 in. |
Trail
| 5.7 in. |
Wheelbase
| 63.6 in. |
Tire, Type | Michelin® Scorcher 31, front and rear |
Tires, Front Specification
| 110/90B19,62H,BW |
Tires, Rear Specification
| 180/70B16,77H,BW |
Fuel Capacity
| 5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 670 lb. |
Engine
Engine | Milwaukee-Eight® 117 High Output |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
Compression ratio | 10.3:1 |
Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1; catalyst in header |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque |
128 ft-lb |
Engine Torque (rpm) | 4000 |
Horsepower | 114 HP / 85 kW @ 5000 rpm |
Lean angle, right (deg.) | 31.3 |
Lean angle, left (deg.) | 31.3 |
Fuel economy testing method | Estimated City/Hwy |
Fuel economy | 47 mpg |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.45 |
Gear Ratios (overall) 3rd | 4.793 |
Gear Ratios (overall) 4th | 3.882 |
Gear Ratios (overall) 5th | 3.307 |
Gear Ratios (overall) 6th |
2.79 |
Chassis
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers |
Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
Wheels, Front Type | Black, Annihilator cast aluminum |
Wheels, Rear Type | Black, Annihilator cast aluminum |
Brakes, Rotor Type | Solid, uniform expansion rotors |
Brakes, caliper type | 4-piston fixed front and 2-piston floating rear |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | Headlamp: LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; Tail/Stop/Front Signal Lights: 8W/28W |
Gauges |
4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
|
Color Options

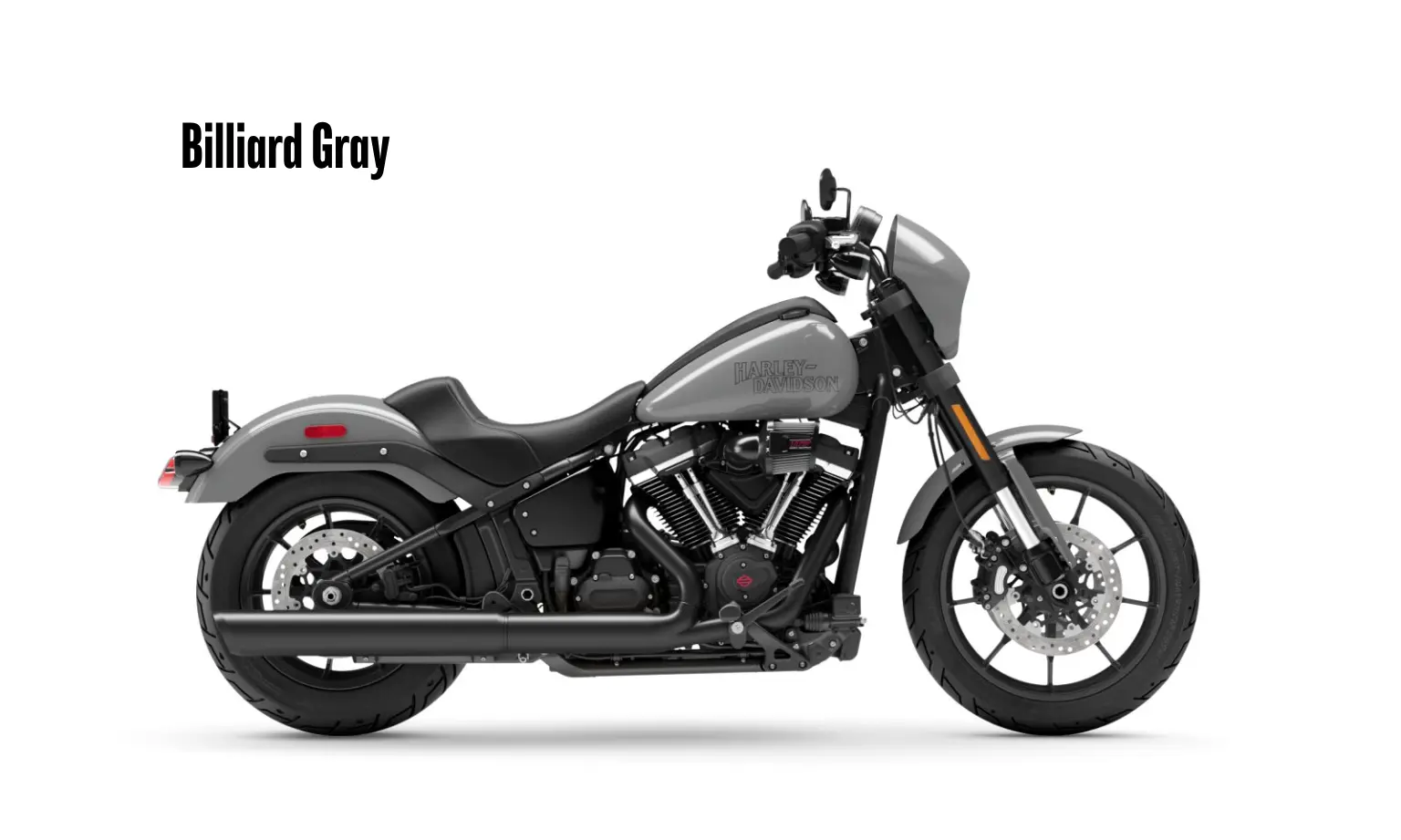

Billiard Gray | 1,171,000฿ |
| Vivid Black | 1,171,000฿ |

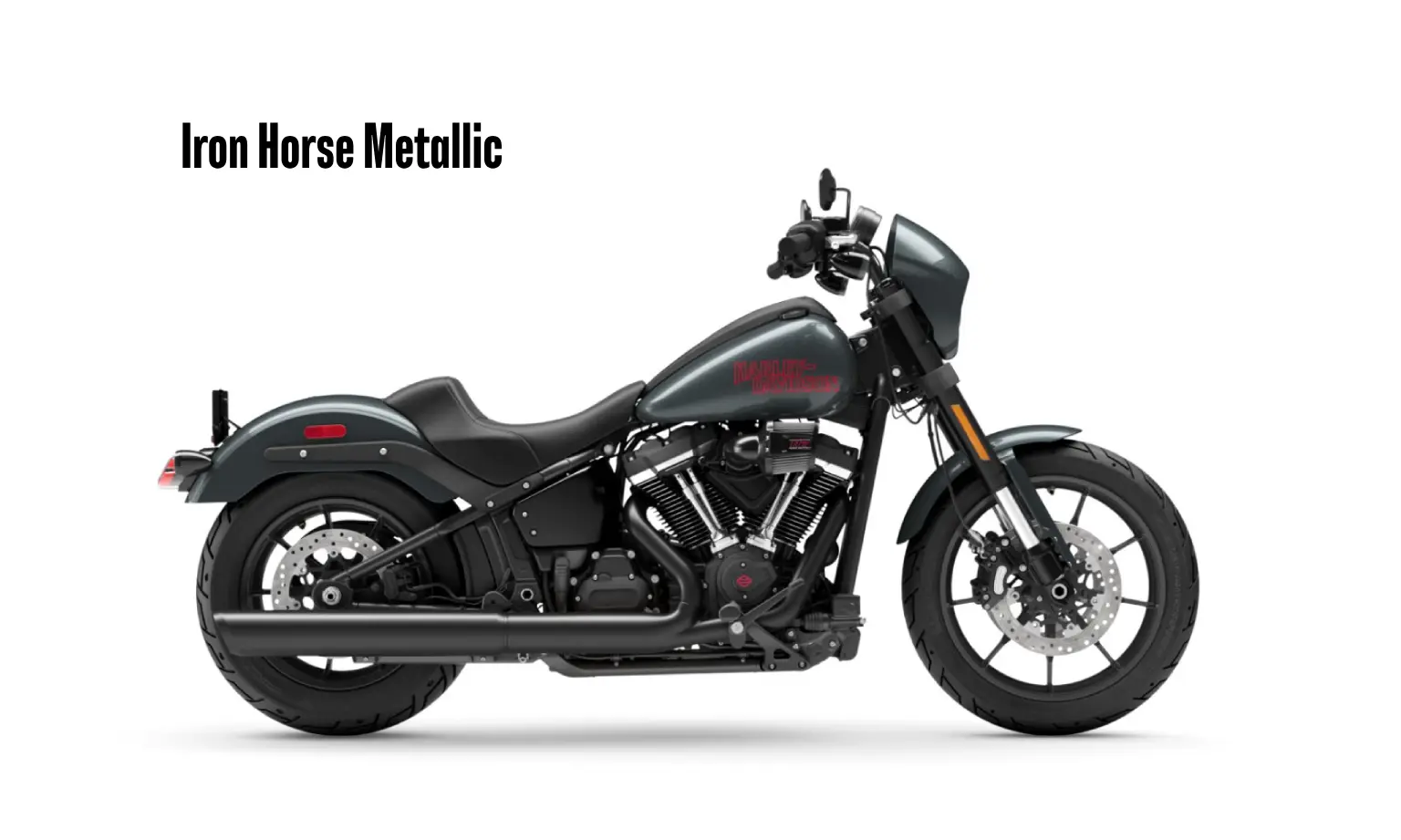

| Iron Horse Metallic | 1,179,000฿ |

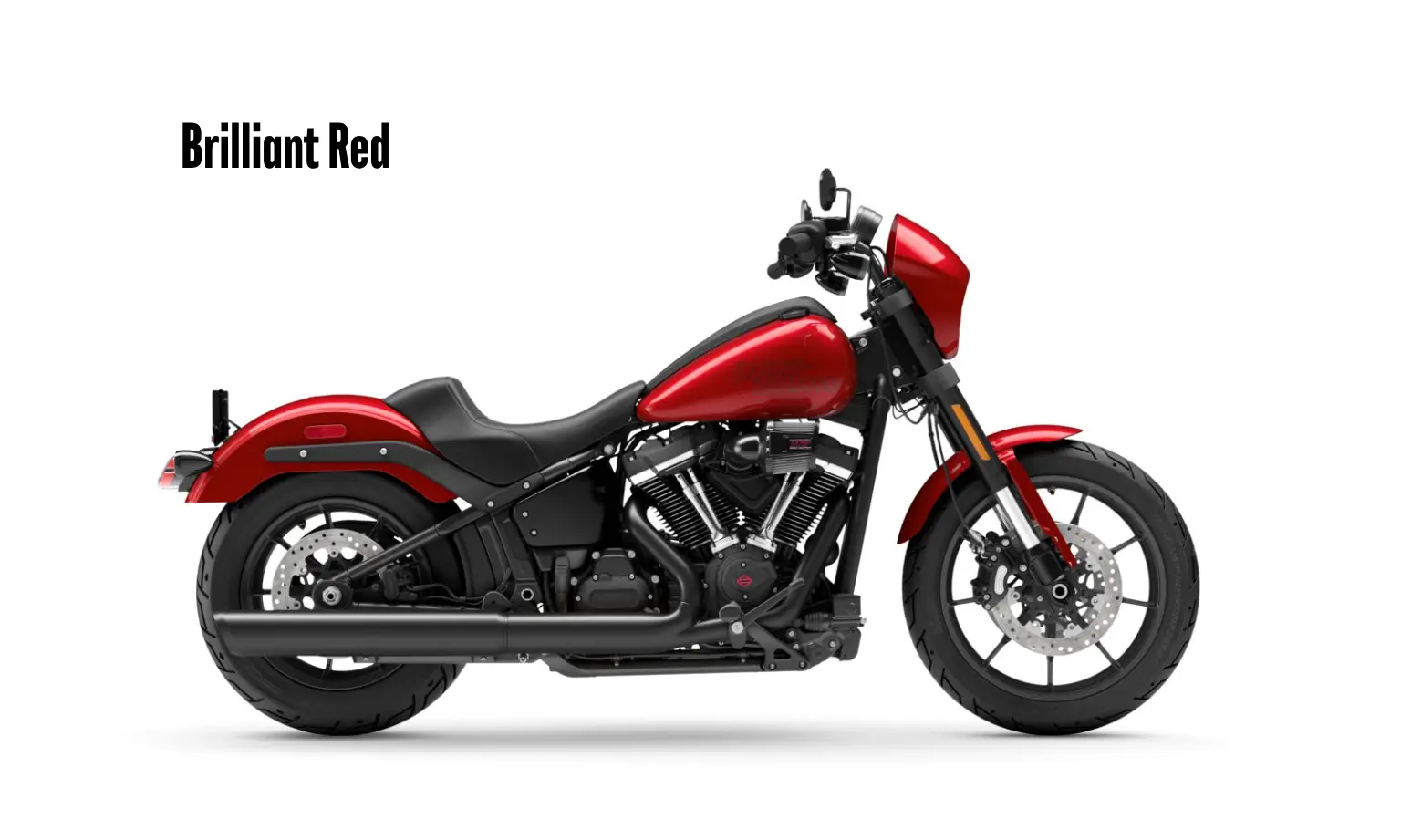

Brilliant Red | 1,179,000฿ |

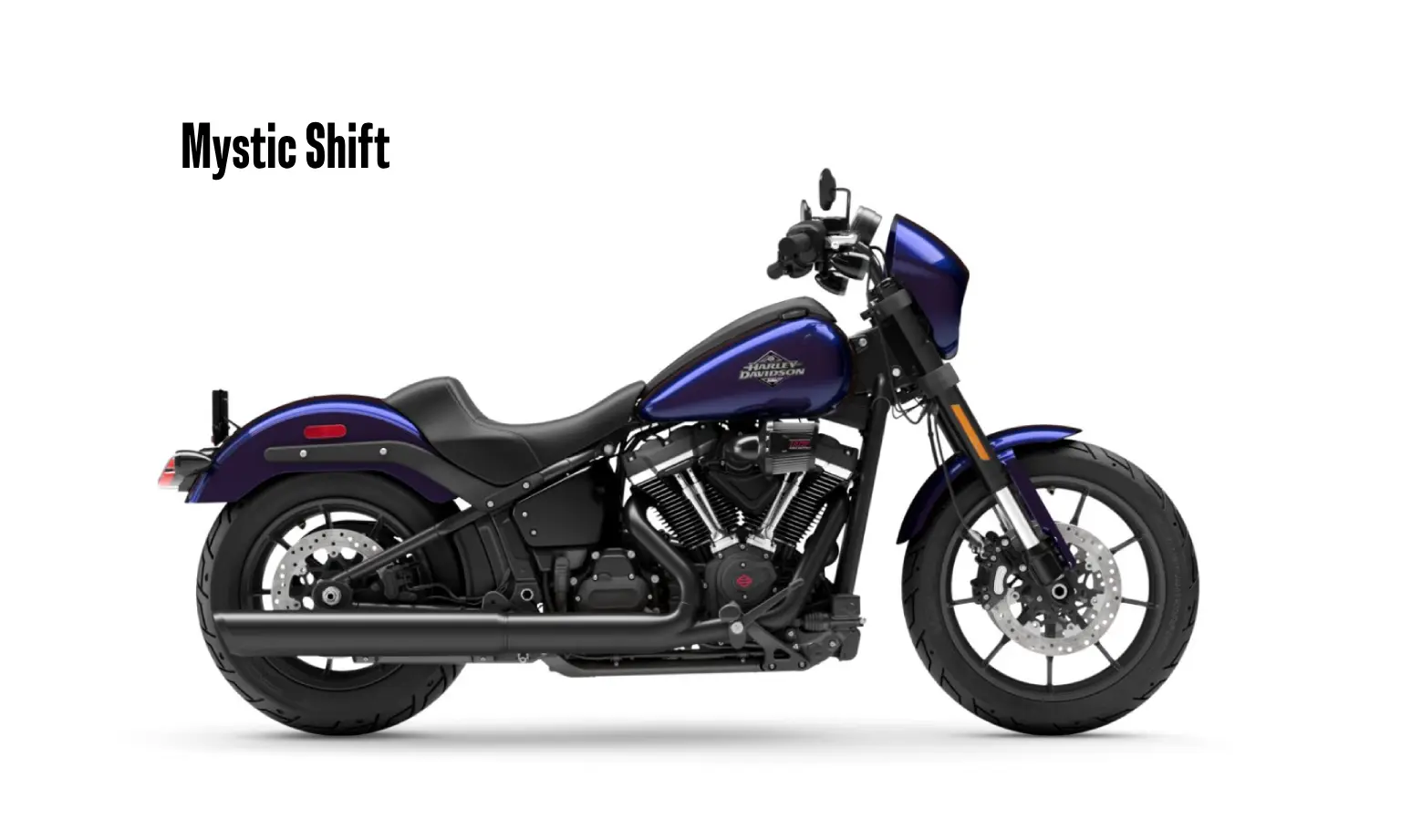

Mystic Shift | 1,204,000฿ |
