2026
CVO™ Street Glide™ Limited
“It's like Harley took every long distance wish
I ever had and turned it into one ideal touring machine.
This is what I want in a bike, and this is what I found with this one.”
COLOR OPTIONS
AT A GLANCE
Luxury Engineered to Obsession.
Nothing on the new 2026 CVO Street Glide Limited is left to chance. This is the ultimate luxury touring machine, from the split seven-spoke custom wheels and Citrus Heat tri-tone paint to the new Grand Tour-Pak™ with flush LED lighting. Every line, every contour, and every nut and bolt on this motorcycle is deliberate. Underneath, the Milwaukee-Eight™ VVT 121 motor and Skyline™ OS infotainment system set the standard for performance and innovation. This is more than attention to detail. It’s absolute devotion to it.
KEY FEATURES
Premium Paint + Graphics
From the fiery warmth of Citrus Heat Tri-Tone to the coastal cool of Electric Coast Two-Tone, these new finishes elevate the art of Harley-Davidson touring. Each one radiates the kind of presence only a CVO can carry. Paint? Hardly. This is American craftsmanship you can see well before you ever hit the start button.

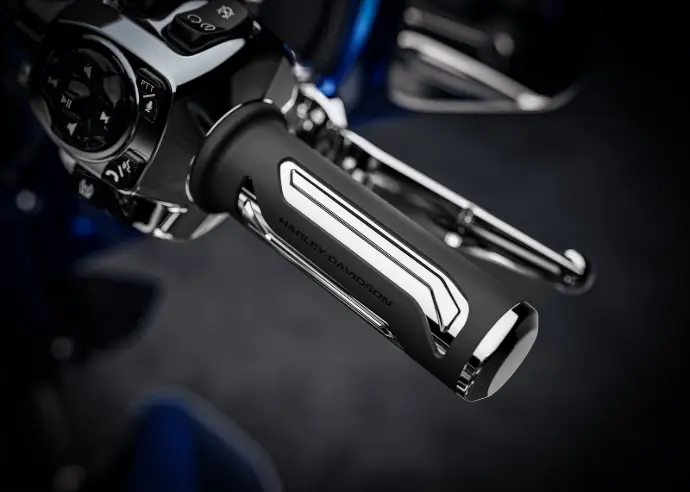

The Carbide Collection
Every contact point, from the newly heated grips to the floorboards and peg set, belongs to the new Carbide Collection. It’s a cohesive design language that unites tactile luxury with visual dominance, letting riders experience warmth, control, and unmistakable craftsmanship mile after mile.

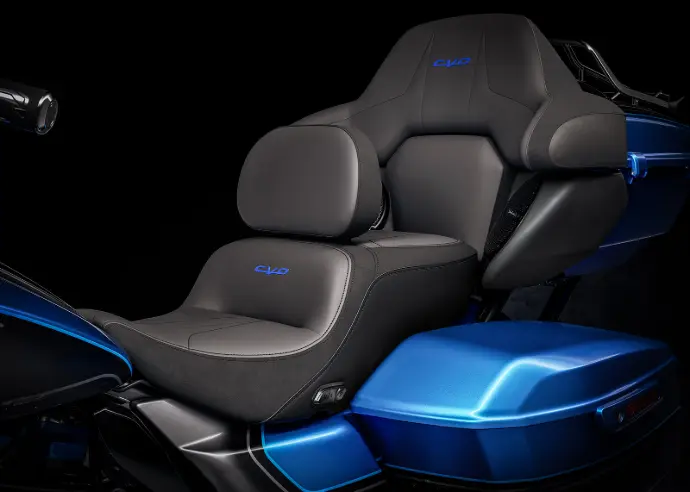

Comfort in Every Contour
The all-new heated rider and passenger seat has been completely redesigned for next-generation touring comfort. Sculpted padding, refined stitching, and improved ergonomics support you mile after mile, whether you’re chasing horizons or just stretching the day a little farther. A removable rider backrest and matching passenger backrest provide personalized support, while a taller light-smoke windshield, highway pegs, and a heel shifter complete a setup built for long-haul relaxation and control.

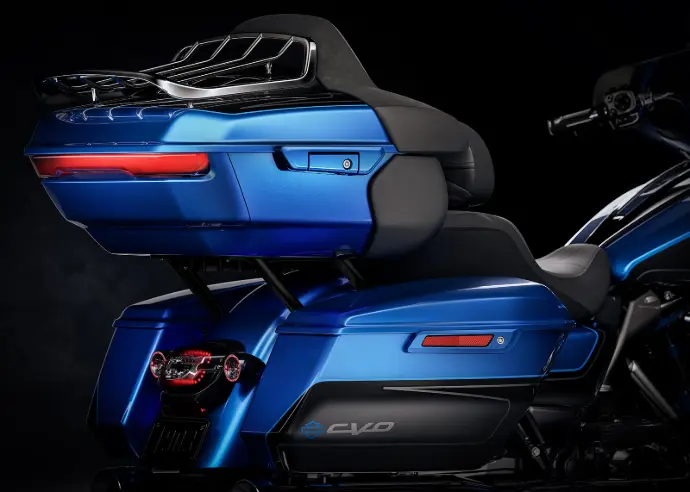

Redesigned Tour-Pak with Integrated LED Lighting
The new Grand Tour-Pak brings refined function to luxury touring. Flush lighting, integrated speaker pods, and a reimagined rack design create a seamless visual flow, while electronic locking saddlebags, pull-out liners, and improved storage access make every mile of travel that much easier.

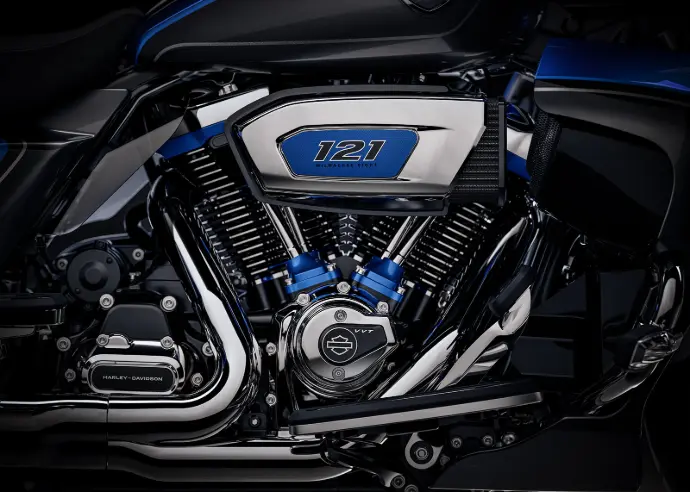

Milwaukee-Eight VVT 121 Power
The Milwaukee-Eight VVT 121 delivers 86 kW @ 5020 rpm and 183 Nm @ 3,500 rpm, with its Variable Valve Timing technology broadening the powerband for smooth, usable torque throughout the rev range. Variable valve timing optimizes low-end pull, fuel efficiency, and mid-range torque, making it the refined side of Harley-Davidson performance built for long-haul confidence. Think: power meets poise in the purest expression of Grand American performance.
DETAILED SPECS
Dimensions
Length | 2,625 mm |
Width | 1,035 mm |
Seat Height, Unladen
| 740 mm |
Ground Clearance
|
140 mm |
Rake | 26 |
Trail
|
170 mm |
Wheelbase
|
1,625 mm |
Tire, Type | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
Tires, Front Specification
| 130/60B19 M/C 61H |
Tires, Rear Specification
| 180/55B18 M/C 80H |
Fuel Capacity
|
22.7 l |
Oil Capacity (w/filter)
|
4.7 l |
Weight, In Running Order
| 418 kg |
| Luggage Capacity -Volume | 0.136 m³ |
Engine
Engine +
| Milwaukee-Eight™ VVT 121 |
Bore
|
103.5 mm
|
Stroke
|
117.5 mm
|
Displacement
| 1,977 cc |
Compression ratio | 11.4:1 |
Fuel System +
|
Electronic Sequential Port Fuel Injection (ESPFI)
|
Exhaust |
2-1-2 dual exhaust with tapered mufflers
|
Performance
Engine Torque Testing Method
| EC 134/2014 |
Engine Torque |
183 Nm |
Engine Torque (rpm) | 3500 |
Horsepower | 115 HP / 86 kW @ 5020 rpm |
Lean angle, right (deg.) | 31 |
Lean angle, left (deg.) | 31 |
Fuel economy testing method | EU 134/2014 |
Fuel economy | 6 l/100 km |
CO2 Emissions Testing Method | EU 134/2014 |
CO2 Emissions | 140 g/km CO2 |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.593 |
Gear Ratios (overall) 2nd | 6.65 |
Gear Ratios (overall) 3rd | 4.938 |
Gear Ratios (overall) 4th | 4 |
Gear Ratios (overall) 5th | 3.407 |
Gear Ratios (overall) 6th | 2.875 |
Chassis
Front Fork |
47 mm Inverted 1x1 Front Forks |
Rear Shocks | Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock |
Wheels, Front Type +
| Dual Grain, Chrome, 14-spoke |
Wheels, Rear Type +
| Dual Grain, Chrome, 14-spoke |
Brakes, Caliper Type | 4-piston fixed dual radial mounted front, and single axial mounted rear |
Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
| Headlamp: LED; Tail/Stop: LED; Front Signal Lights/Rear Turn Signals: LED |
Gauges |
Digital gauges integrated within the display
|
Infotainment
Infotainment system
| Skyline™ OS |
Screen Size
|
312 mm
|
Type | Full Color TFT |
Watts per channel | 125 (4) & 150 (2) |
Speakers | 6 |
Speaker size | Two 165 mm fairing speakers, two 165 mm Tour-pak speakers, and two 165 mm lower fairing speakers |
Headset specifications (if equipped) | Harley-Davidson™ Packtalk Edge wireless Bluetooth™ headset |
AM | Standard |
FM | Standard |
SD Card, Flash Drive and MP3 - via USB Connection
| Supported |
Languages |
Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
|
Hands-free mobile phone — via Bluetooth | Standard |
Voice recognition: phone functions only | Phone dependent |
Voice Recognition Languages: Tuner / Media / Navigation | Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain), Swedish |
Rider / passenger intercom |
Standard (Passenger Headset Sold Separately); VOX is available for H-D headsets
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
| Standard |
Text-to-Speech (TTS) Languages | Same as Languages list |
USB |
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
|
Phone Connectivity | Apple CarPlay |
Bluetooth | Phone/Media Player, Headset |
Color Options

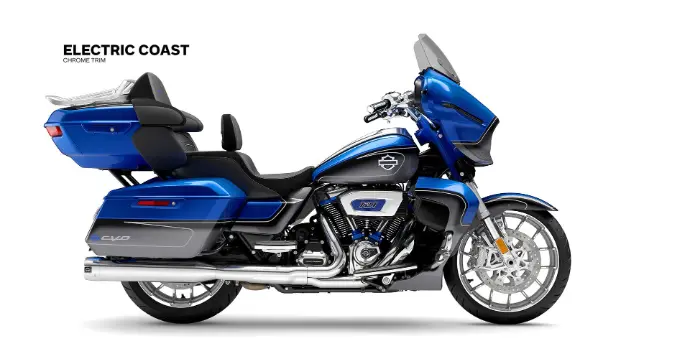

Electric Coast
| ฿ - |
