2026
Sportster™ S
The 2026 Sportster S is what happens when you take a legend,
strip it to muscle and intent, and tune it to go harder,
lean sharper, and keep pulling long after
you should have called it a day.
COLOR OPTIONS
What Came Before, Refined for Now
With 121 HP from the liquid-cooled Revolution Max® 1250T motor, a wide front tire, 2-1-2 scrambler-style exhaust, and suspension tuned to optimize performance and rider comfort, the 2026 Sportster S reimagines classic styling with sharp, modern intent. Inspired by the iconic Sportster Forty-Eight, it channels Harley-Davidson heritage into a bike built to go harder, handle sharper, and look better doing it.
KEY FEATURES

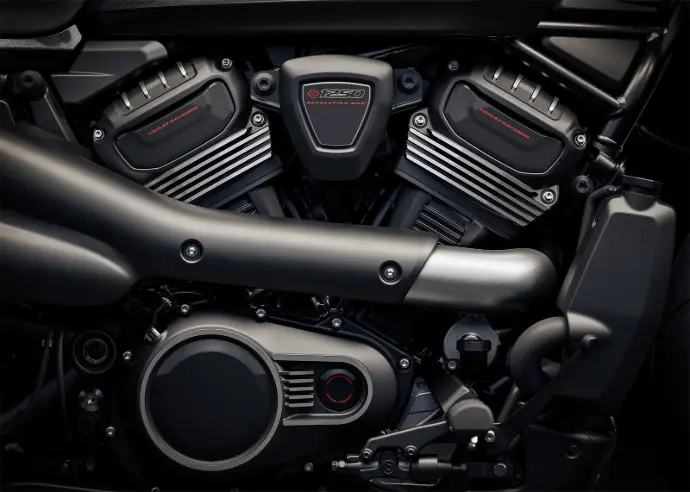

Revolution Max 1250T Motor
The liquid-cooled 1250T puts out 121 horsepower with torque on tap, ready the moment you roll on.

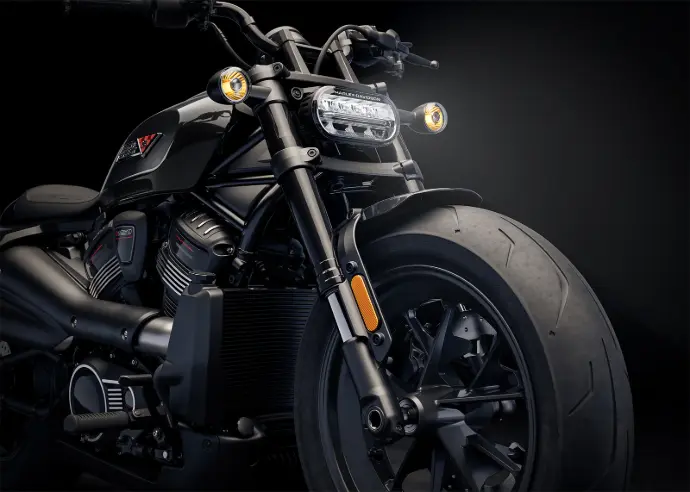

Performance-Tuned Front Forks
Re-tuned front forks work with the upgraded rear suspension to keep the Sportster S razor-sharp in the corners and steady everywhere else.

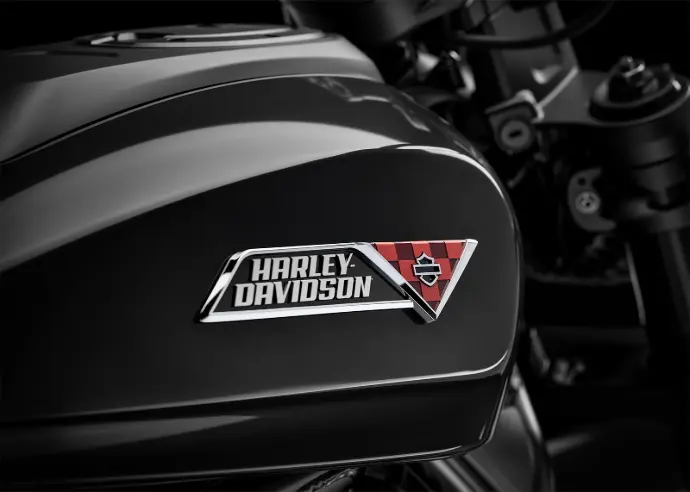

Vintage-Inspired Tank Medallion
The tank medallion wears the Sportster’s history proudly, etched into a design tuned for speed, precision, and purpose built into every line.

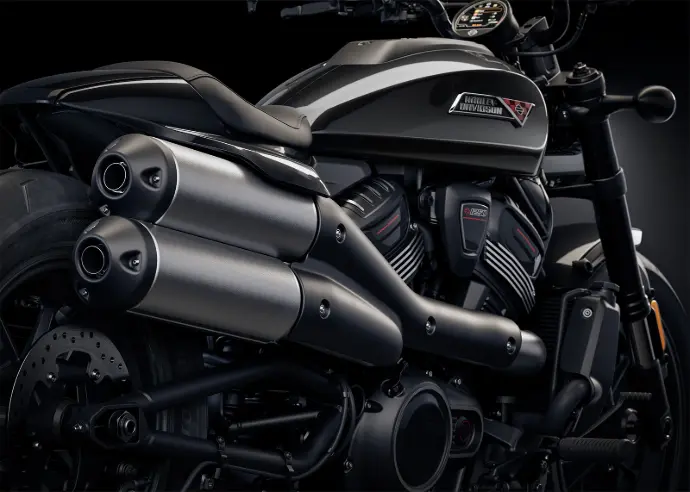

High-Mount 2-1-2 Exhaust
Inspired by flat-track racers, the high-mount 2-1-2 exhaust tucks in tight for aggressive cornering, and fires off a deep, commanding note built for the paddock, not the parkway.
Round 4” TFT Infotainment
The round 4-inch TFT serves up maps, audio, and bike data in one clean view, ready the second you glance down and gone the second you look back up.
DETAILED SPECS
Dimensions
Length | 89.4 in. |
Width | 33.1 in. |
Seat Height, Laden +
| 28.9 in |
Ground Clearance
| 3.5 in. |
Rake
| 30 |
Trail
| 5.8 in. |
Wheelbase
| 59.8 in. |
Tire, Type
| Dunlop® Harley-Davidson Series, radial |
Tires, Front Specification
| 160/70R17 73V |
Tires, Rear Specification
| 180/70R16 77V |
Fuel Capacity
| 3.1 gal. |
Oil Capacity (w/filter)
| 4.75 qt. |
Weight, In Running Order
| 502 lb. |
Engine
Engine +
| Revolution® Max 1250T |
Bore
| 4.134 in. |
Stroke
| 2.846 in. |
Displacement
| 76.4 cu in. |
Compression Ratio
| 12.0:1 |
Fuel System +
| Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1-into-2; catalyst in muffler |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque +
| 93 ft-lb |
Engine torque (rpm) | 6000 |
Horsepower | 121 hp / 90 kW at 7500 rpm |
Right turning angle (degrees) | 35 |
Left turning angle (degrees) | 35 |
| Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy
| 49 mpg |
Drive System
Main propulsion system
| Gear, 49/89 ratio |
Gear Ratios (overall) 1st | 12.21 |
Gear Ratios (overall) 2nd | 9.022 |
Gear Ratios (overall) 3rd | 6.994 |
Gear Ratios (overall) 4th | 5.641 |
Gear Ratios (overall) 5th | 4.731 |
Gear Ratios (overall) 6th | 4.131 |
Chassis
Front shock
| 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps |
Rear shock | Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
|
Wheels, Front Type +
| Aluminum cast, satin black |
Wheels, Rear Type +
| Aluminum cast, satin black |
Brakes, Caliper Type
| Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
Brakes, Rotor Type
| Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
| Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
Gauges
| 4-inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
Infotainment system
Screen size
| 4 in |
Type
| Color TFT |
Headset Specifications (if equipped) |
Bluetooth |
Language | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
Hands-free mobile phone - via Bluetooth | standard |
Speech recognition system language: Phone function only | Phone dependent |
Speech recognition system language: Tuner/Media/Navigation | Phone dependent |
Driver/Passenger Intercom |
Headset function only
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS) |
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
|
Text-to-speech (TTS) languages |
Phone dependent
|
USB |
Charging and Instrument update, USB-C, 5V, 3A
|
Bluetooth |
Phone/Media Supported
|
Color Options
| Dark Billiard Gray | ฿ - |

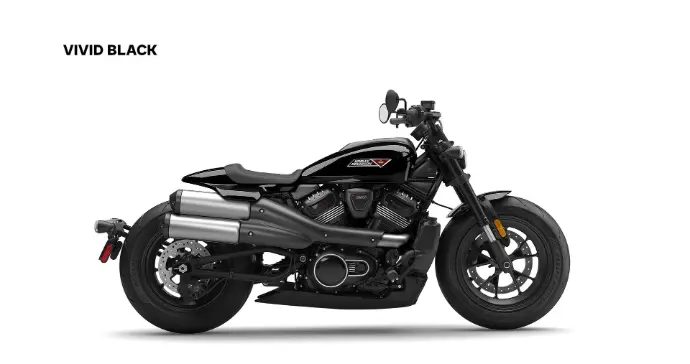

| Vivid Black | ฿ - |

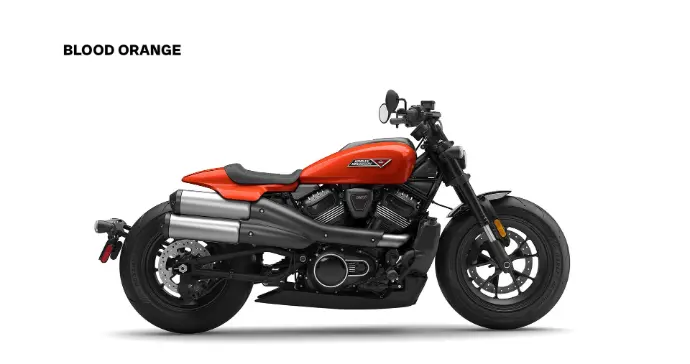

Blood Orange
| ฿ - |
White Onyx Pearl
| ฿ - |

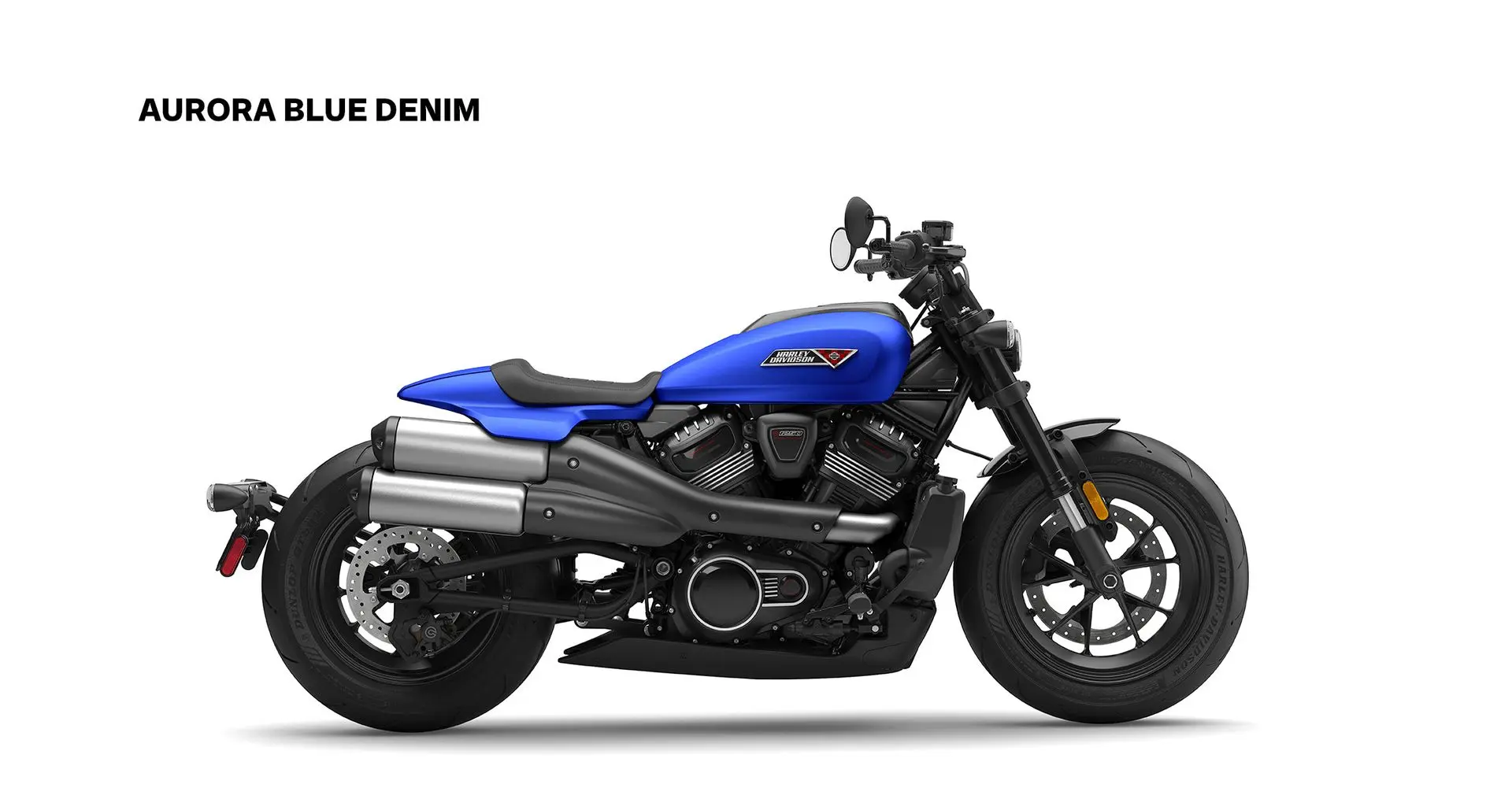

Aurora Blue Denim | ฿ - |
