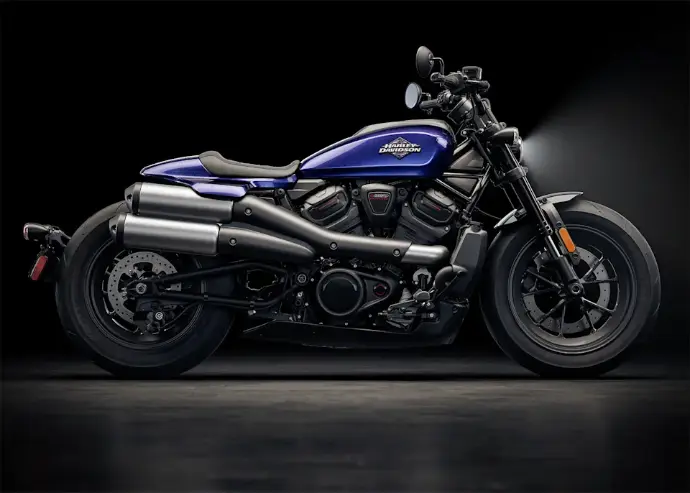

2024 Sportster™ S
Engineered to thrill, the Sportster® S is built around the big and powerful Revolution® Max 1250T engine that puts out 121 horsepower and 93 ft-lb of torque. With rider-assist electronics, optimized handling, and a lightweight frame, this next-generation Sportster is all about performing rather than conforming.
KEY FEATURES

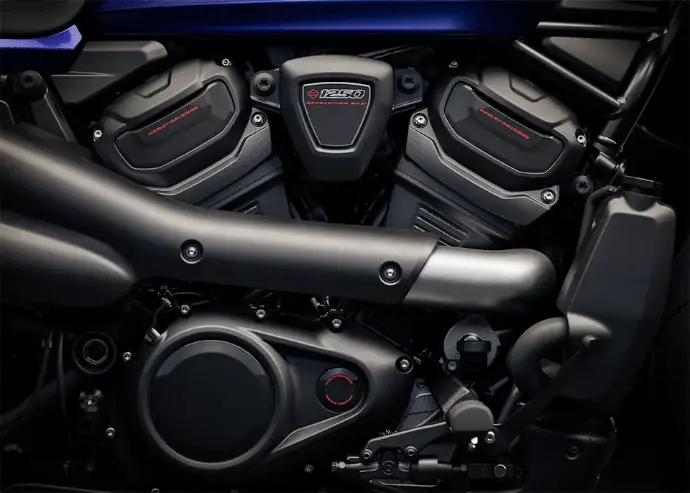

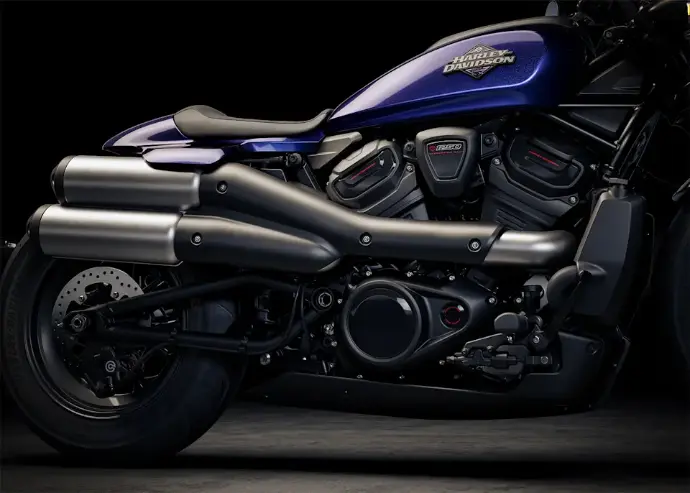

BLACKED-OUT POWERTRAIN
Strong and understated, the blacked-out Revolution Max 1250T powertrain features a mix of gloss and matte black finishes for depth and contrast.
PREMIUM PAINT
Premium paint options now include Factory Custom color Mystic Shift, which changes from a dark gunmetal to purple to blue, and finally to an almost orange in full sunlight.
VINTAGE MEETS MODERN SPORT
With a flat line running through the gas tank and tail section, a tubular frame, and the new "Checkered V" tank medallion, it nods to Sportster® heritage while delivering the performance that today’s riders expect.

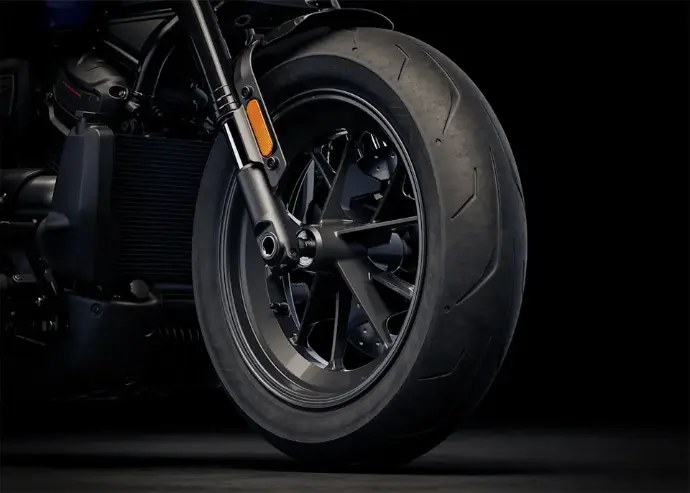

FRONT TIRE
Big, beefy, 17-inch front tire provides responsive handling and a strong, muscular look.

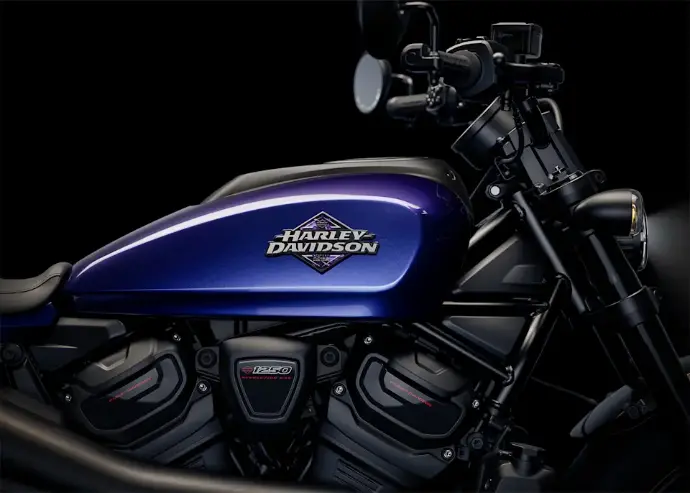

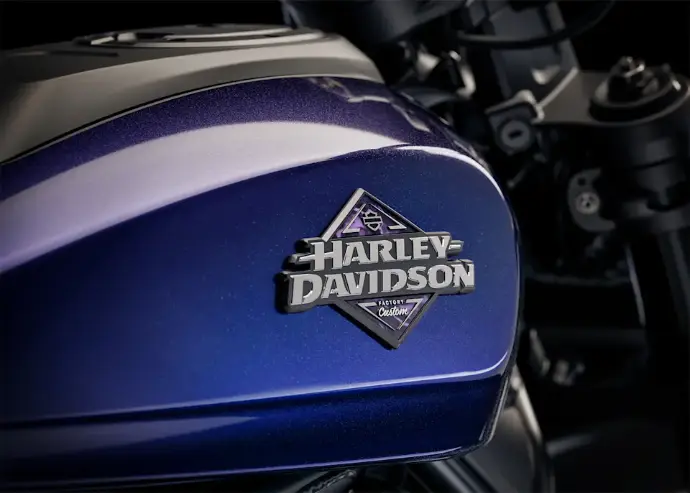

TANK MEDALLION
The vintage-inspired "Checkered V" tank medallion pulls from classic designs and brings in track-inspired vibes.
REVOLUTION® MAX 1250T ENGINE
Next-generation, liquid-cooled Revolution Max engine with variable valve timing provides 121 horsepower and 93 ft-lb of torque through a wide rev range.

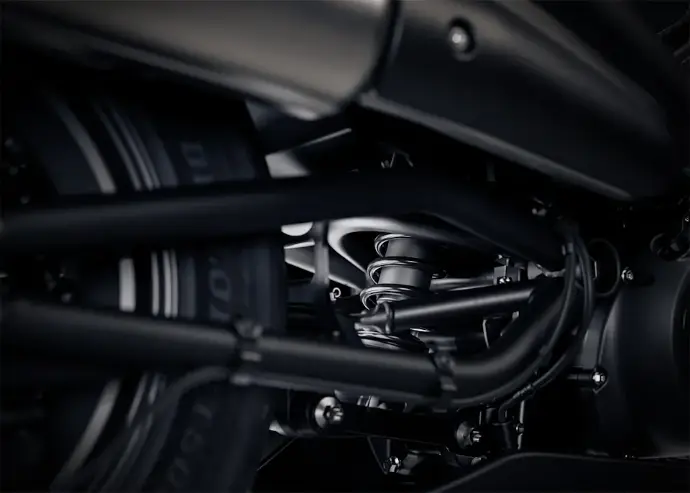

INCREASED REAR SUSPENSION
Three-way adjustable rear shock travel has 60 percent more travel, increasing from two inches to 3.2 inches without impacting seat height.

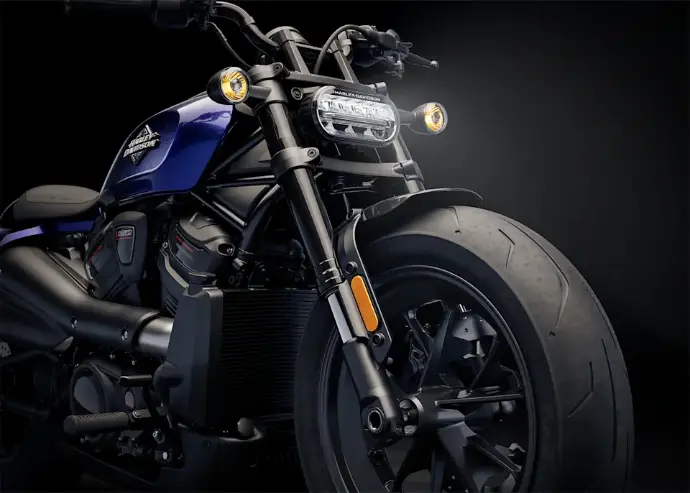

FRONT FORKS
43mm inverted forks are adjustable for compression, rebound, and spring preload, allowing the rider to fine-tune their riding experience.
BRAKES
Premium Brembo brakes provide incredible stopping power and direct feel at the lever and pedal.

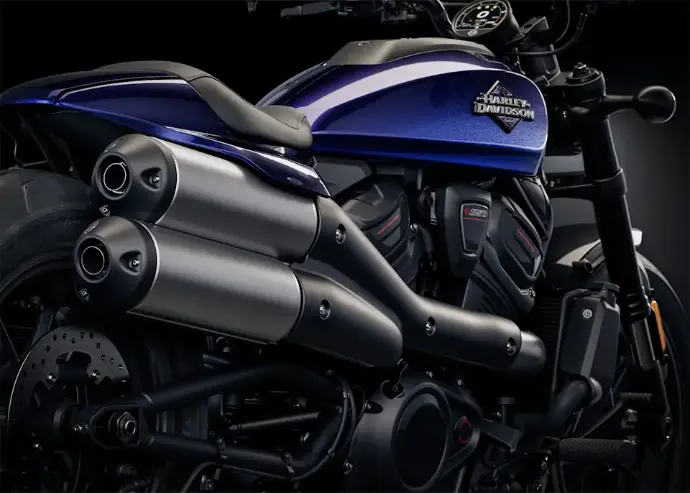

EXHAUST
High-mounted, brushed stainless steel exhaust system is tucked up and out of the way, inspired by the exhaust on flat-track racing bikes.

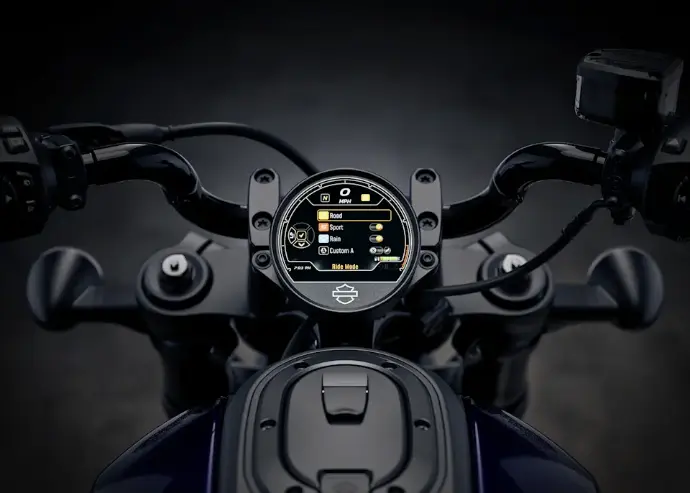

FOUR-INCH TFT DISPLAY
Full color TFT infotainment system allows quick and intuitive menu navigation, swap ride modes, and tune Rider Safety Enhancements.

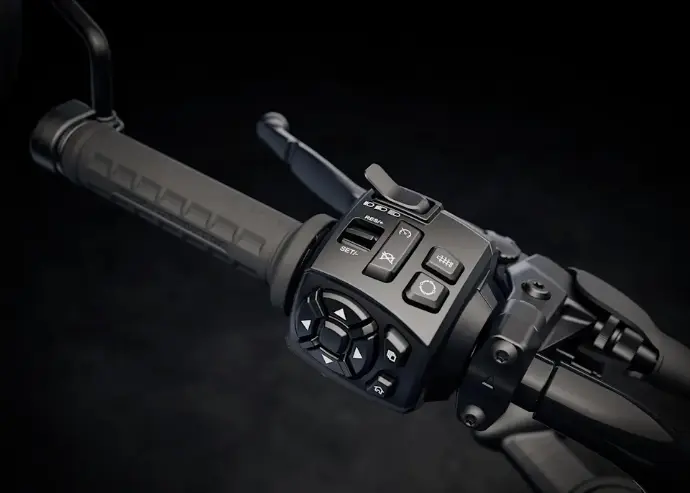

CRUISE CONTROL
Set your speed and let it ride with Cruise Control as a standard feature.
DETAILED SPECS
Dimensions
Length | 89.4 in. |
Width | 33.1 in. |
Seat Height, Laden +
| 28.9 in |
Ground Clearance
| 3.5 in. |
Rake
| 30 |
Trail
| 5.8 in. |
Wheelbase
| 59.8 in. |
Tire, Type
| Dunlop® Harley-Davidson Series, radial |
Tires, Front Specification
| 160/70R17 73V |
Tires, Rear Specification
| 180/70R16 77V |
Fuel Capacity
| 3.1 gal. |
Oil Capacity (w/filter)
| 4.75 qt. |
Weight, In Running Order
| 502 lb. |
Engine
Engine | Revolution® Max 975T |
Bore
| 4.134 in. |
Stroke
| 2.846 in. |
Displacement
| 76.4 cu in. |
Compression Ratio
| 12.0:1 |
Fuel System
| Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1-into-2; catalyst in muffler |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque
| 93 ft-lb |
Engine torque (rpm) | 6000 |
Horsepower | 121 hp / 90 kW at 7500 rpm |
Right turning angle (degrees) | 35 |
Left turning angle (degrees) | 35 |
| Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy
| 49 mpg |
Drive System
Main propulsion system
| Gear ratio 49/89 |
Gear Ratios (overall) 1st | 12.21 |
Gear Ratios (overall) 2nd | 9.022 |
Gear Ratios (overall) 3rd | 6.994 |
Gear Ratios (overall) 4th | 5.641 |
Gear Ratios (overall) 5th | 4.731 |
Gear Ratios (overall) 6th | 4.131 |
Chassis
Front shock
| 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps |
Rear shock | Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
|
Type of front wheel | Aluminum cast, satin black |
Type of rear wheel | Aluminum cast, satin black |
Types of brake calipers | Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
Brake disc type | Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights
| Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights:LED Bullet Turn Signals |
Gauges
| 4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
Infotainment system
Screen size
| 4 in |
Type
| TFT color |
Headset specifications (if any) |
Bluetooth |
Language | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (Default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
Hands-free mobile phone - via Bluetooth | standard |
Speech recognition system language: Phone function only | Usage on the phone |
Speech recognition system language: Tuner/Media/Navigation | Usage on the phone |
Driver/Passenger Intercom | For use with headphones only |
Motorcycle information screen (air temperature, oil pressure and EITMS) | TPMS, Engine temperature, Battery voltage, Ambient air temperature |
Text-to-speech (TTS) languages | Usage on the phone |
USB | Charging and updating devices, USB-C, 5V, 3A |
Bluetooth | Support Phone/Media |
Color Options

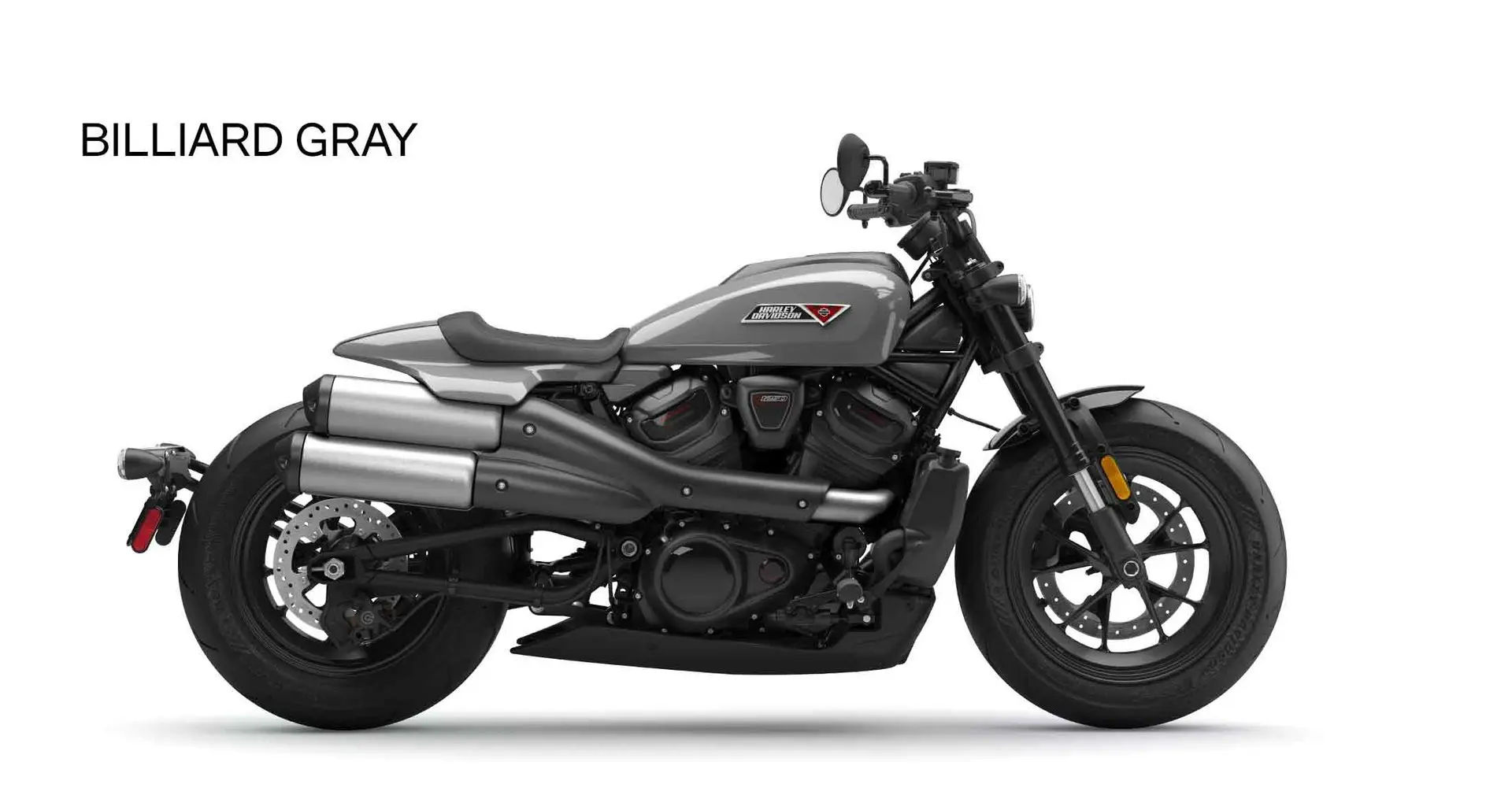

| Billiard Grey
| ฿638,000 |

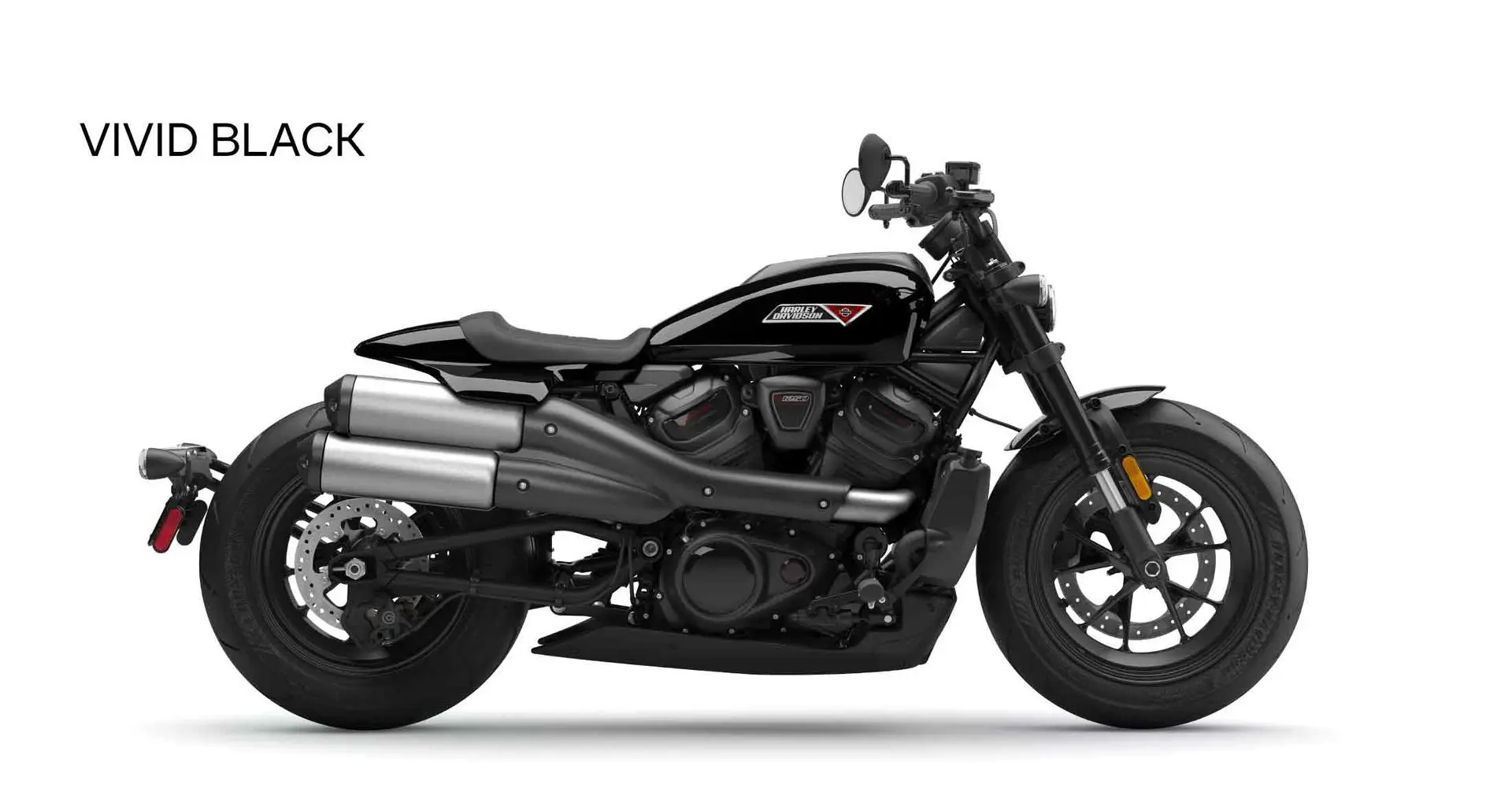

| Vivid Black | ฿644,000 |
Whiskey Fire | ฿646,000 |
Mystic Shift | ฿671,000 |
