2025 Street Bob
The Street Bob is a lean, mean bobber with mini-ape handlebars, mid-mounted foot controls, and a massive new Milwaukee-Eight® 117 Classic V-Twin Engine, which makes the slim-but-tough Softail® quicker than ever.
KEY FEATURES

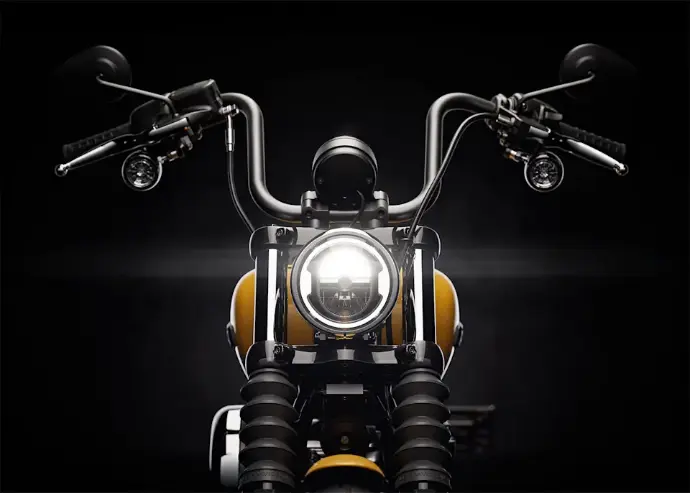

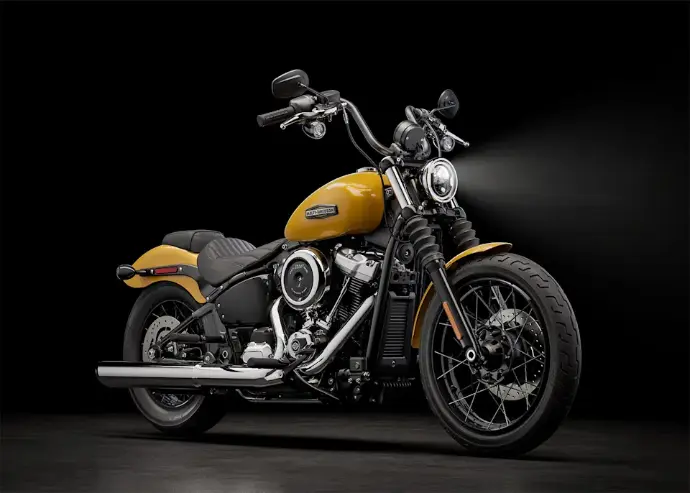

NEW ALL-LED LIGHTING
Clear, bright LED turn signals let everyone on the road know where you’re going, and a 5.75-inch LED headlight provides a wide beam of bright white light.

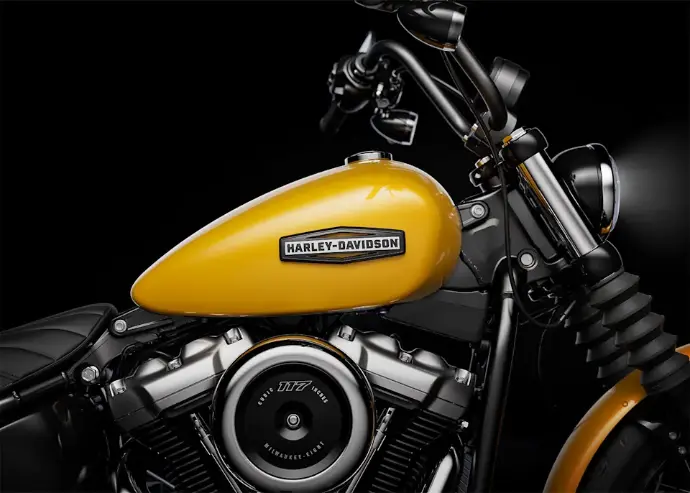

NEW PAINT + NEW MEDALLION
The legendary “stretched diamond” black-and-chrome tank medallion, inspired by Willie G.’s 1966 design, makes its debut on this model across all five paint options.

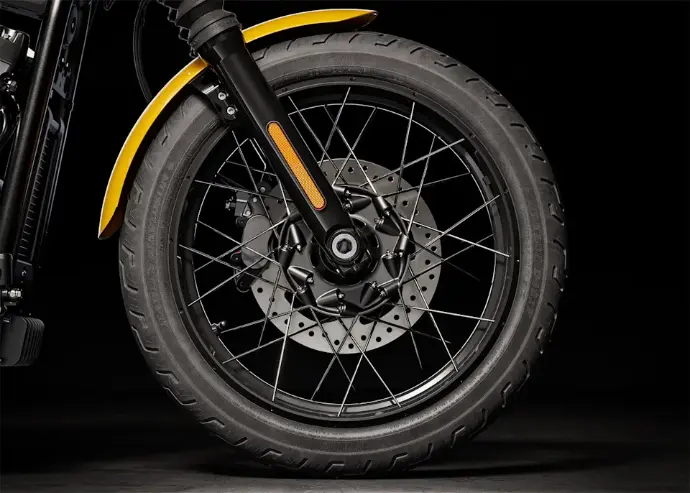

WHEELS
Go with blacked-out cast Annihilator wheels or step up to new tubeless laced wheels, now standard with TPMS to help monitor tire pressure and boost confidence on every ride. A 19-inch front and 16-inch rear complete the look.

UPDATED STYLING
With mini ape-hanger handlebars, a slim 3.5-gallon gas tank, and a short, bobbed-style rear fender, the Street Bob has classic bobber style straight from the factory.

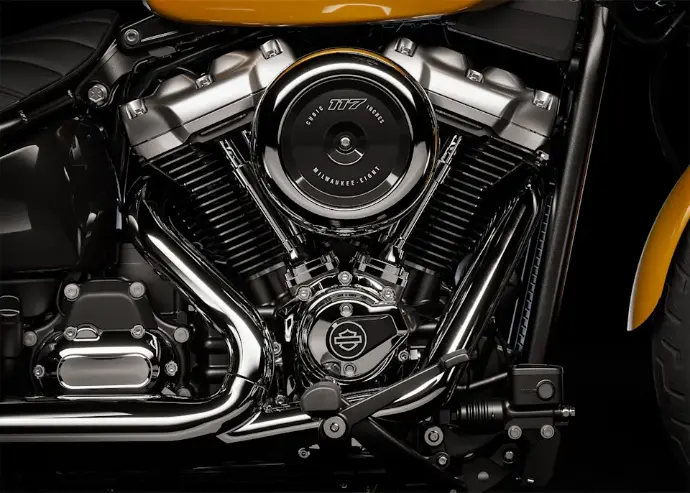

MILWAUKEE-EIGHT® 117 CLASSIC V-TWIN ENGINE
A serious upgrade from the Milwaukee-Eight® 114 to the new Milwaukee-Eight® 117 Classic delivers a broad torque curve that hits hard every time you twist the throttle.

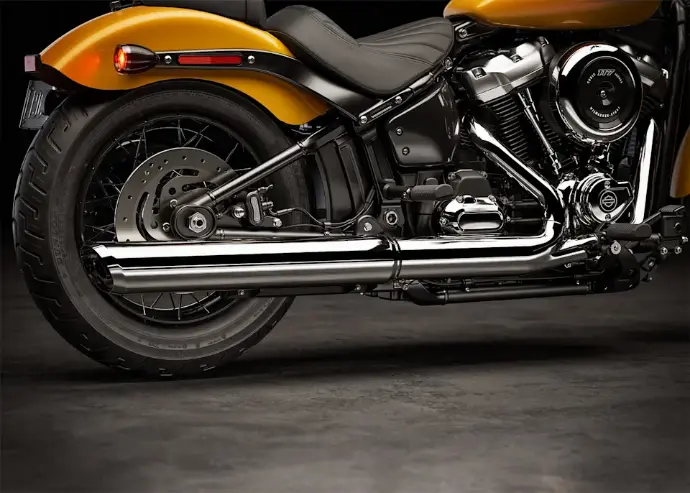

NEW TWO-INTO-ONE EXHAUST
New two-into-one exhaust enhances engine performance by using a lightweight acoustic material that maximizes flow while providing a deep, muscular sound.

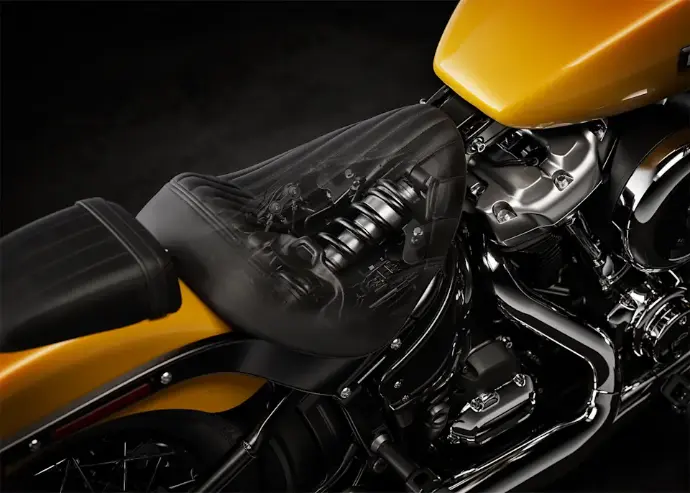

RETUNED REAR SUSPENSION
The rear monoshock with under-seat, cam-style pre-load adjustment helps you keep the ride smooth, no matter the load or what the road throws at you

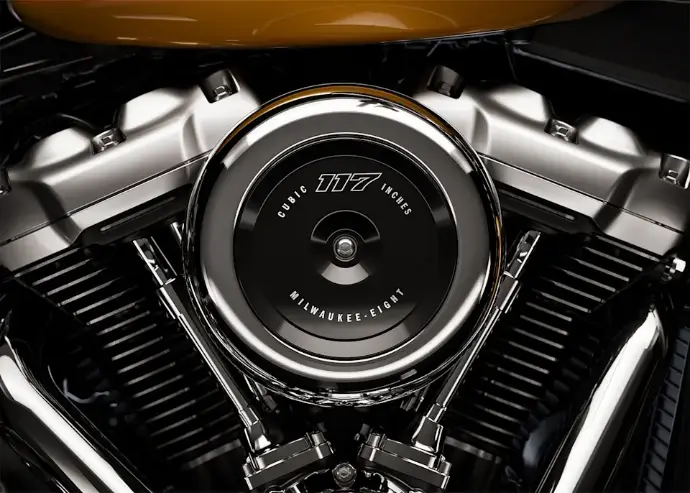

NEW INTAKE
Round air intake in black and chrome enhances the bike’s classic bobber style.

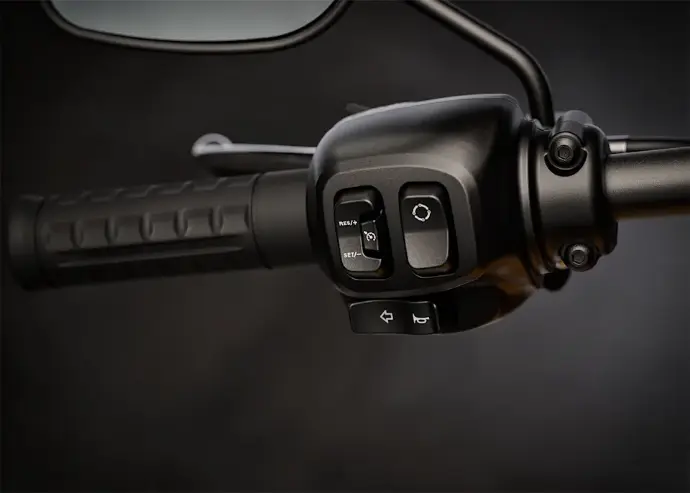

NEW SELECTABLE RIDE MODES + FOUR-INCH DISPLAY
The four-inch display features a large, easy-to-read analog gauge positioned above an LCD screen. Hand controls enhance ergonomics and give you quick access to new selectable Ride Modes (Road, Rain, Sport), so you can fine-tune your ride like never before.

NEW RIDER SAFETY ENHANCEMENTS
Smart safety, built in. Cornering ABS, Traction Control, Drag-Torque Slip Control System, and Tire Pressure Monitoring System are now standard with new Rider Safety Enhancements that respond when it matters most.

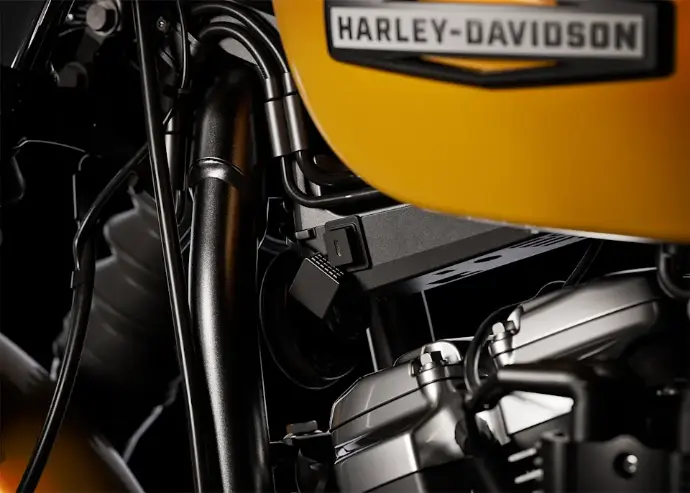

NEW USB-C CHARGING
USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
DETAILED SPECS
Dimensions
Length |
91.3 in. |
Width | 36.4 in. |
Seat Height, Unladen
| 25.8 in. |
Ground Clearance
| 4.9 in. |
Trail
| 6.2 in. |
Wheelbase
| 64.2 in. |
Tire, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear |
Tires, Front Specification
| 100/90B19,57H,BW |
Tires, Rear Specification
| 150/80B16,77H,BW |
Fuel Capacity
| 3.5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 646 lb. |
Engine
Engine |
Milwaukee-Eight® 117 Classic |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
Compression ratio | 10.3:1 |
Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1; catalyst in header |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque |
120 ft-lb |
Engine Torque (rpm) | 2500 |
Horsepower | 98 HP / 73 kW @ 4600 rpm |
Lean angle, right (deg.) | 28.5 |
Lean angle, left (deg.) | 28.5 |
Fuel economy testing method | Estimated City/Hwy |
Fuel economy | 47 mpg |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.45 |
Gear Ratios (overall) 3rd | 4.793 |
Gear Ratios (overall) 4th | 3.882 |
Gear Ratios (overall) 5th | 3.307 |
Gear Ratios (overall) 6th |
2.79 |
Chassis
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers |
Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
Wheels, Front Type | Black, Annihilator cast aluminum |
Wheels, Rear Type | Black, Annihilator cast aluminum |
Brakes, Rotor Type | Solid, uniform expansion rotors |
Brakes, caliper type | 4-piston fixed front and 2-piston floating rear |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | Headlamp: LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; Tail/Stop/Front Signal Lights: 8W/28W |
Gauges |
4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
|
Color Options
Billiard Gray | 918,000฿ |

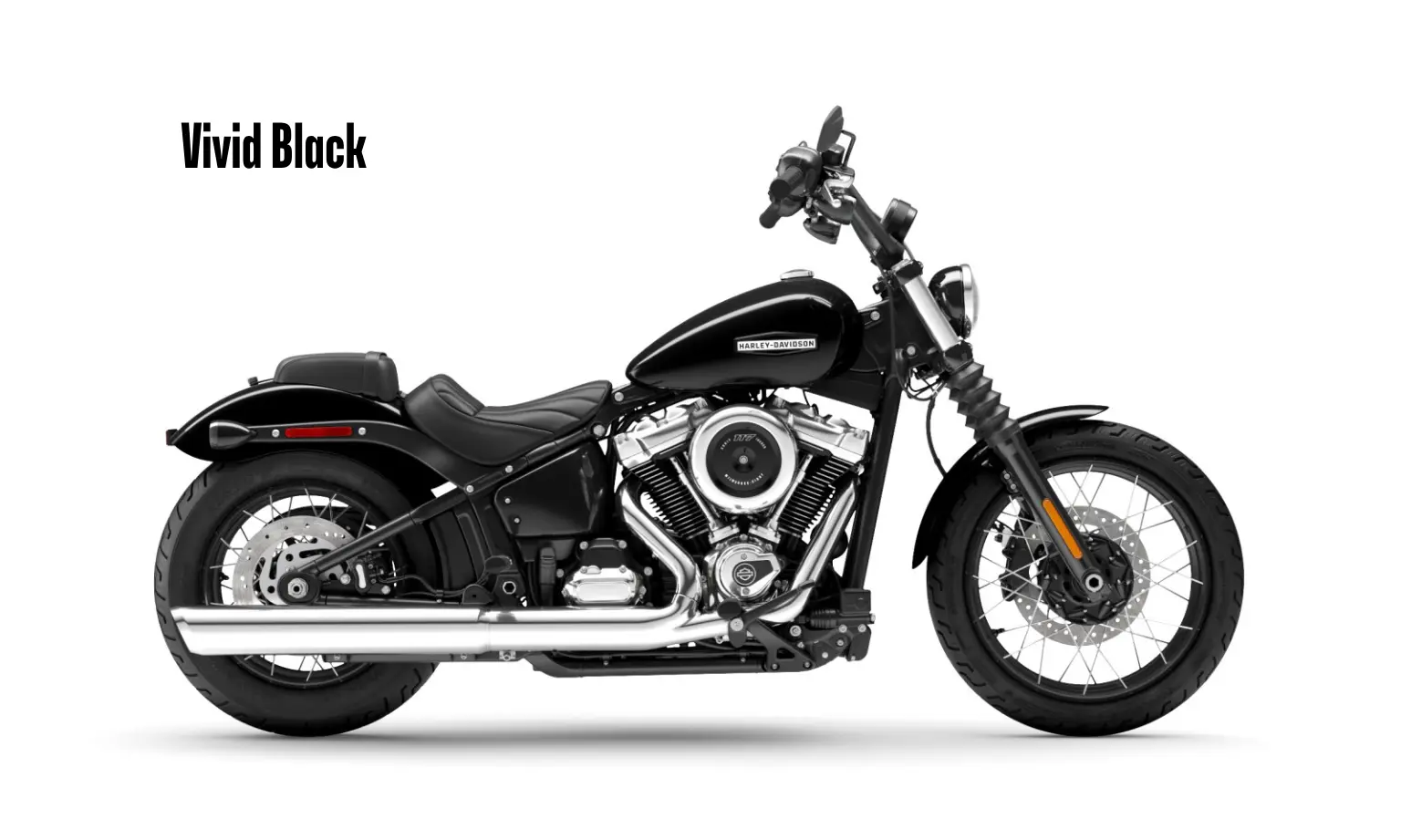

Vivid Black | 924,000฿ |
Iron Horse Metallic | 925,000฿ |

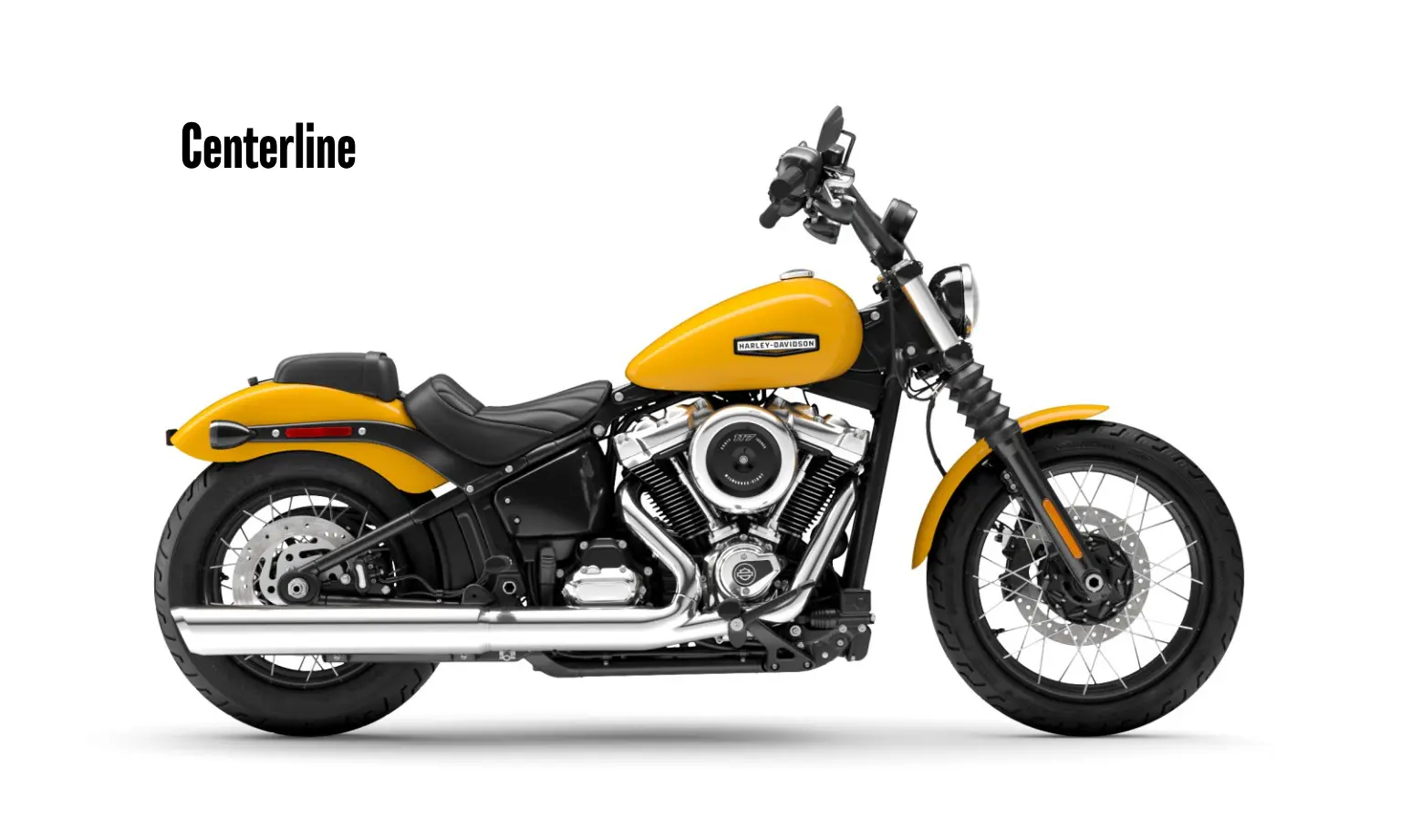

Centerline | 925,000฿ |

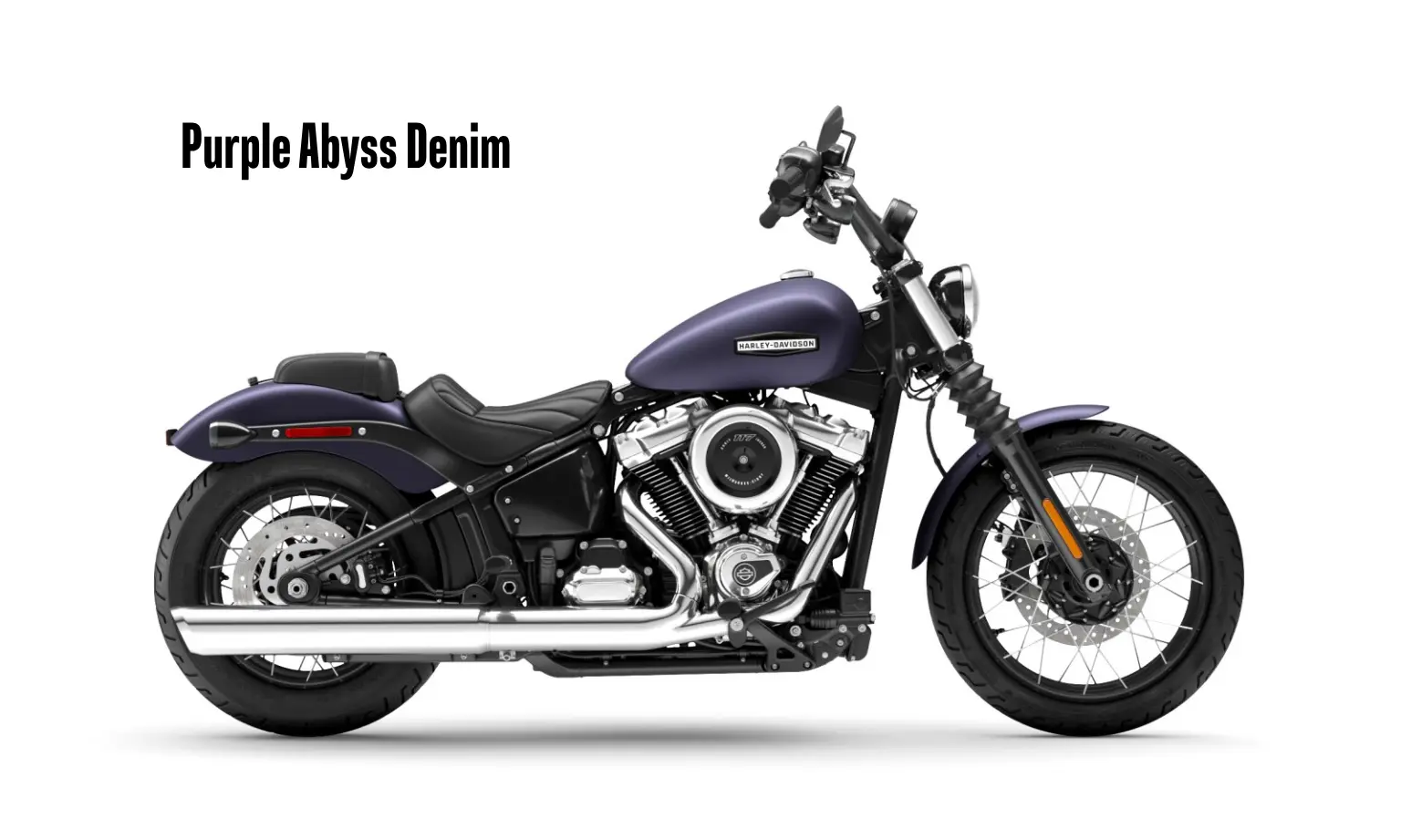

Purple Abyss Denim | 926,000฿ |
