2026
BREAKOUT®
The Breakout brings the attitude of a custom
build and the ease of a factory bike home to your garage.
Leave the hassle at the swap meet.
Starting Price 1,281,000 ฿
COLOR OPTIONS
Why Blend in When You Can Break Out?
With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight® 117 Custom, two new paint options, and much more.
KEY FEATURES

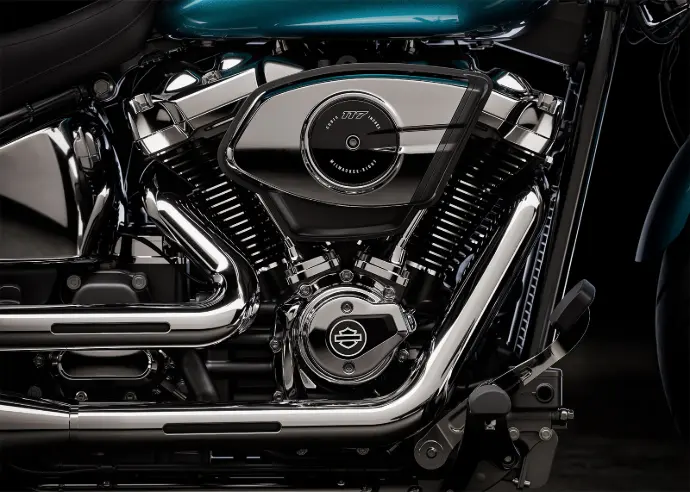

Big-Inch Milwaukee-Eight 117 Custom Motor
The most displacement you can get in a factory-installed, regular-production Harley-Davidson® powertrain. Torque-rich, smooth-running, and made to move.
300mm Front Disc + 21” Wheel
A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 21” front wheel.

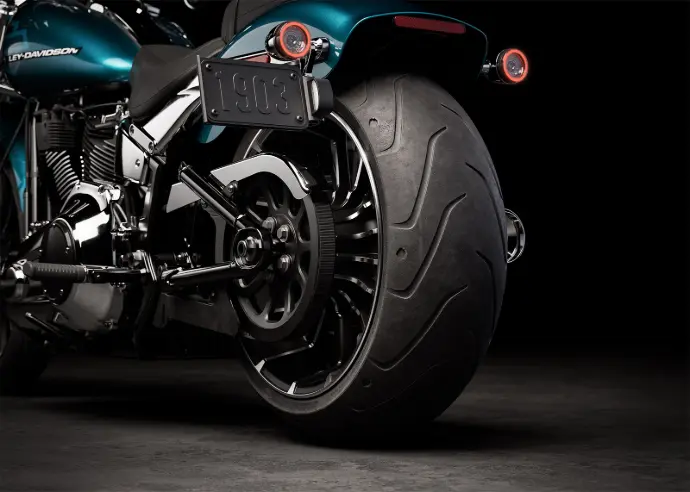

Boldly Profiled 240mm Rear Tire
A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.

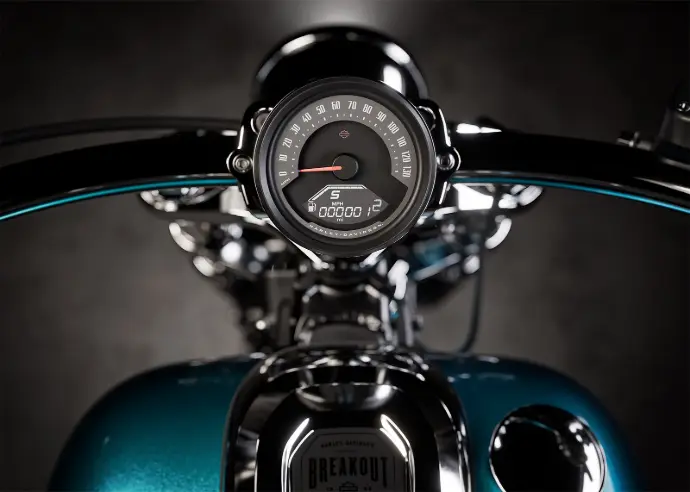

4” Analog Gauge + Customizable Ride Modes
A clean 4-inch analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.

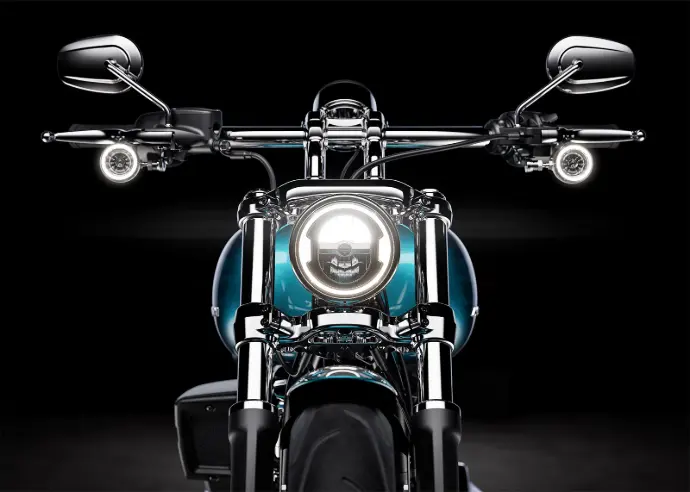

5.75” LED Headlamp + LED Turn Signals
Bright, clean, and impossible to ignore. A 5.75” LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.
DETAILED SPECS
Dimensions
Length |
93.5 in. |
Width | 37 in. |
Seat Height, Unladen
| 25.6 in. |
Ground Clearance
| 4.5 in. |
Trail
| 5.7 in. |
Wheelbase
| 66.7 in. |
Tire, Type | Michelin® Scorcher 11, front and rear |
Tires, Front Specification
| 130/60B21,63H,BW |
Tires, Rear Specification
| 240/40R18,79V,BW |
Fuel Capacity
| 5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 681 lb. |
Engine
Engine +
| Milwaukee-Eight® 117 Custom |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
Compression ratio | 10.3:1 |
Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-2 staggered; catalyst in muffler |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque |
126 ft-lb |
Engine Torque (rpm) | 3000 |
Horsepower | 103 HP / 77 kW @ 4800 rpm |
Lean angle, right (deg.) | 26.8 |
Lean angle, left (deg.) |
26.8 |
Fuel economy testing method | Estimated City/Hwy |
Fuel Economy +
| 49 mpg |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.454 |
Gear Ratios (overall) 3rd | 4.793 |
Gear Ratios (overall) 4th | 3.882 |
Gear Ratios (overall) 5th | 3.307 |
Gear Ratios (overall) 6th |
2.79 |
Chassis
Front Fork | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring |
Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment |
Wheels, Front Type +
| Gloss black, 26-spoke cast aluminum |
Wheels, Rear Type +
| Gloss black, 26-spoke cast aluminum |
Brakes, Caliper Type | 4-piston fixed front and 2-piston floating rear |
Brakes, Rotor Type | Front and rear black, Split 7-spoke floating rotors |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals +
| Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
Gauges |
4-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
|
Color Options
Dark Billiard Gray
| 1,273,000 ฿ |

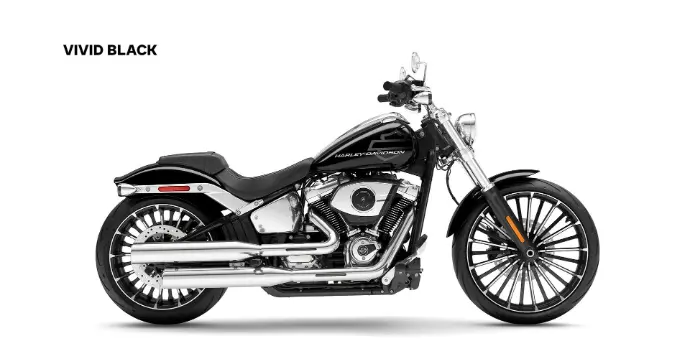

| Vivid Black | 1,279,000 ฿ |

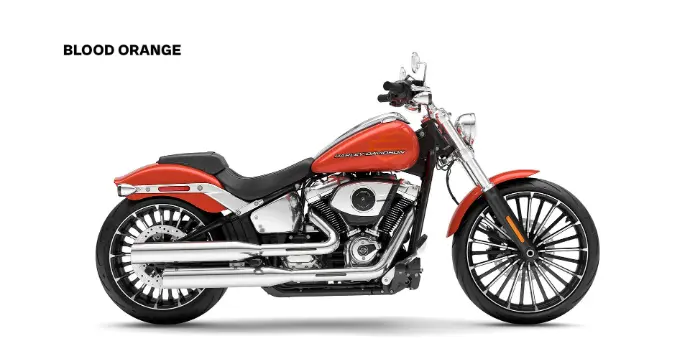

| Blood Orange | 1,280,000฿ |

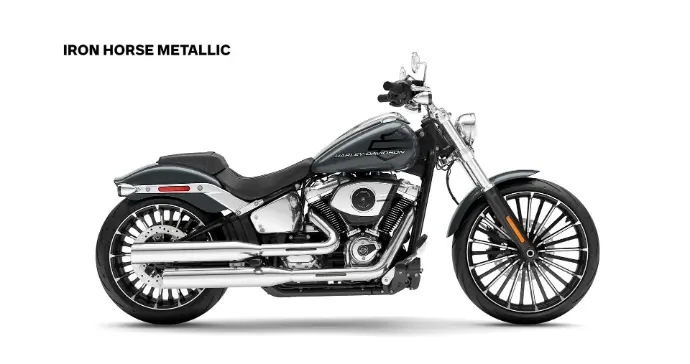

Iron Horse Metallic | 1,281,000 ฿ |
Teal Thunder | 1,281,000 ฿ |
