COLOR OPTIONS
2025 Low Rider ST
Heritage-inspired tank graphics and an FXRT-style fairing look retro, but the Low Rider ST is a modern performance motorcycle
with a new Milwaukee-Eight® 117 High Output V-Twin Engine.
KEY FEATURES
FAIRING
Inspired by West Coast customizers who embrace the classic FXRT fairing, the Low Rider ST’s lightweight, frame-mounted fairing is developed using computational fluid dynamics (CFD) to improve airflow—helping reduce wind fatigue for a more comfortable, stable ride.
NEW ALL-LED LIGHTING
A 146 mm headlight, redesigned taillight, and LED turn signals improve visibility and signaling on the road.
PREMIUM PAINT + GRAPHICS
Premium paint and retro-inspired graphics highlight H-D’s iconic design heritage.
SOLO SEAT
The slim solo seat holds you in place during aggressive acceleration and cornering.
RETUNED REAR SUSPENSION
A tall monoshock kicks up the rear end and provides extra cornering clearance when you are pushing the limits.
MILWAUKEE-EIGHT® 117 HIGH OUTPUT V-TWIN ENGINE
Improved mid- and top-end performance from the Milwaukee-Eight® 117 H.O., which lets you stay on the gas longer during hard acceleration, with redline pushed from 5,600 rpm to 5,900 rpm.
NEW TWO-INTO-ONE EXHAUST
A sleek and refined exhaust line brings saddlebag symmetry, extra storage, and a timeless, cohesive look—setting the stage for customization upgrades.
HEAVY BREATHER INTAKE
Forward-facing air intake maximizes flow and provides intake tuning length to improve charging efficiency and peak torque.
NEW HAND CONTROLS
New hand controls feature Ride Mode selection, a repositioned flash-to-pass switch near the left forefinger, and an adjustable brake lever.
NEW SELECTABLE RIDE MODES + FOUR-INCH DISPLAY
An analog speedometer with a built-in multi-function digital display provides key ride data, including a gear shift indicator and new selectable Ride Modes (Road, Rain, and Sport), so you can fine-tune your ride like never before.
NEW USB-C CHARGING
USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
DETAILED SPECS
Dimensions
Length |
92.9 in. |
Width | 35 in. |
Seat Height, Unladen
| 27 in. |
Ground Clearance
| 5.7 in. |
Trail
| 5.7 in. |
Wheelbase
| 63.6 in. |
Tire, Type | Michelin® Scorcher 31, front and rear |
Tires, Front Specification
| 110/90B19,62H,BW |
Tires, Rear Specification
| 180/70B16,77H,BW |
Fuel Capacity
| 5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 670 lb. |
Engine
Engine | Milwaukee-Eight® 117 High Output |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
Compression ratio | 10.3:1 |
Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-1; catalyst in header |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque |
128 ft-lb |
Engine Torque (rpm) | 4000 |
Horsepower | 114 HP / 85 kW @ 5000 rpm |
Lean angle, right (deg.) | 31.3 |
Lean angle, left (deg.) | 31.3 |
Fuel economy testing method | Estimated City/Hwy |
Fuel economy | 47 mpg |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.45 |
Gear Ratios (overall) 3rd | 4.793 |
Gear Ratios (overall) 4th | 3.882 |
Gear Ratios (overall) 5th | 3.307 |
Gear Ratios (overall) 6th |
2.79 |
Chassis
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers |
Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
Wheels, Front Type | Black, Annihilator cast aluminum |
Wheels, Rear Type | Black, Annihilator cast aluminum |
Brakes, Rotor Type | Solid, uniform expansion rotors |
Brakes, caliper type | 4-piston fixed front and 2-piston floating rear |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | Headlamp: LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; Tail/Stop/Front Signal Lights: 8W/28W |
Gauges |
4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
|
Color Options

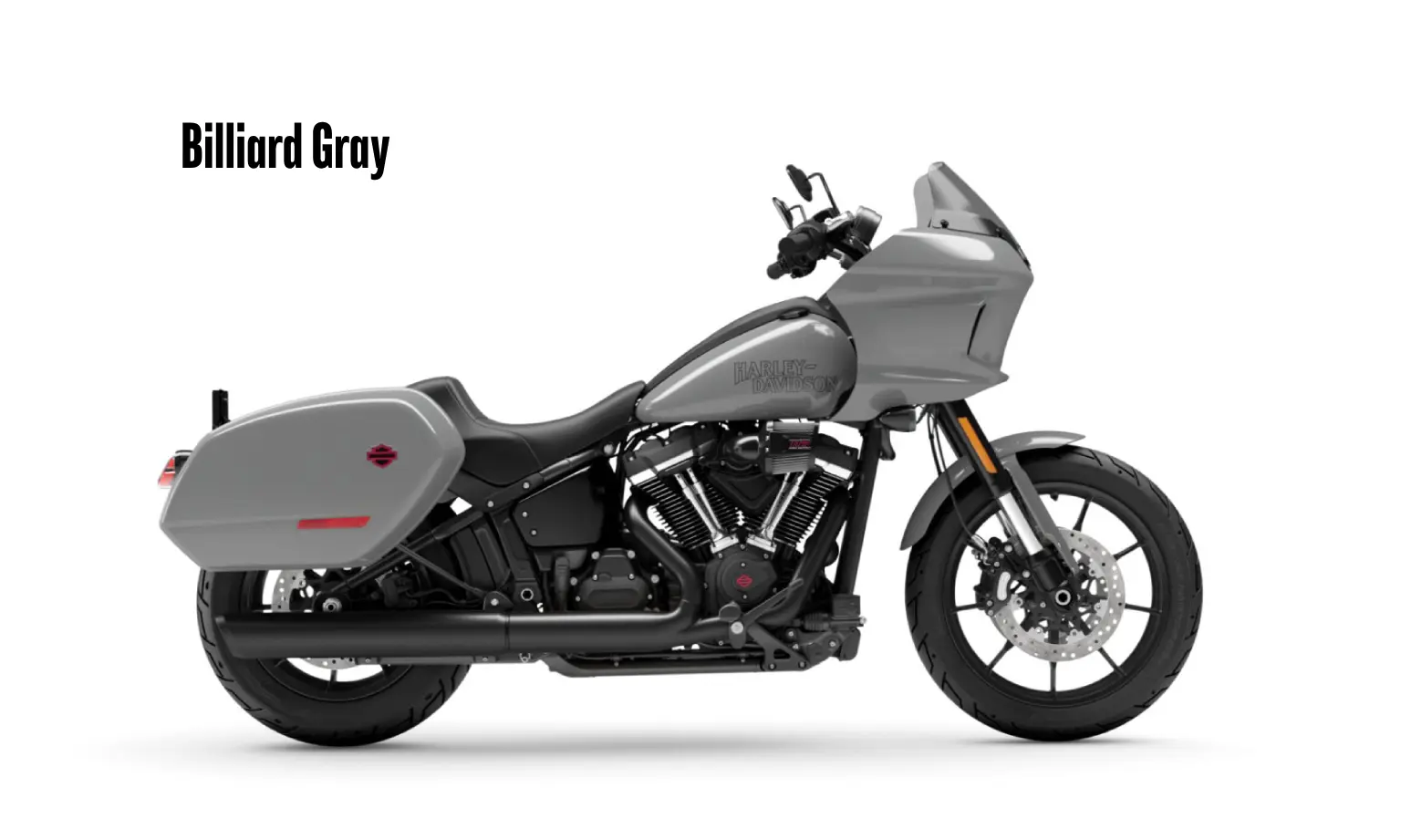

Billiard Gray | 1,171,000฿ |

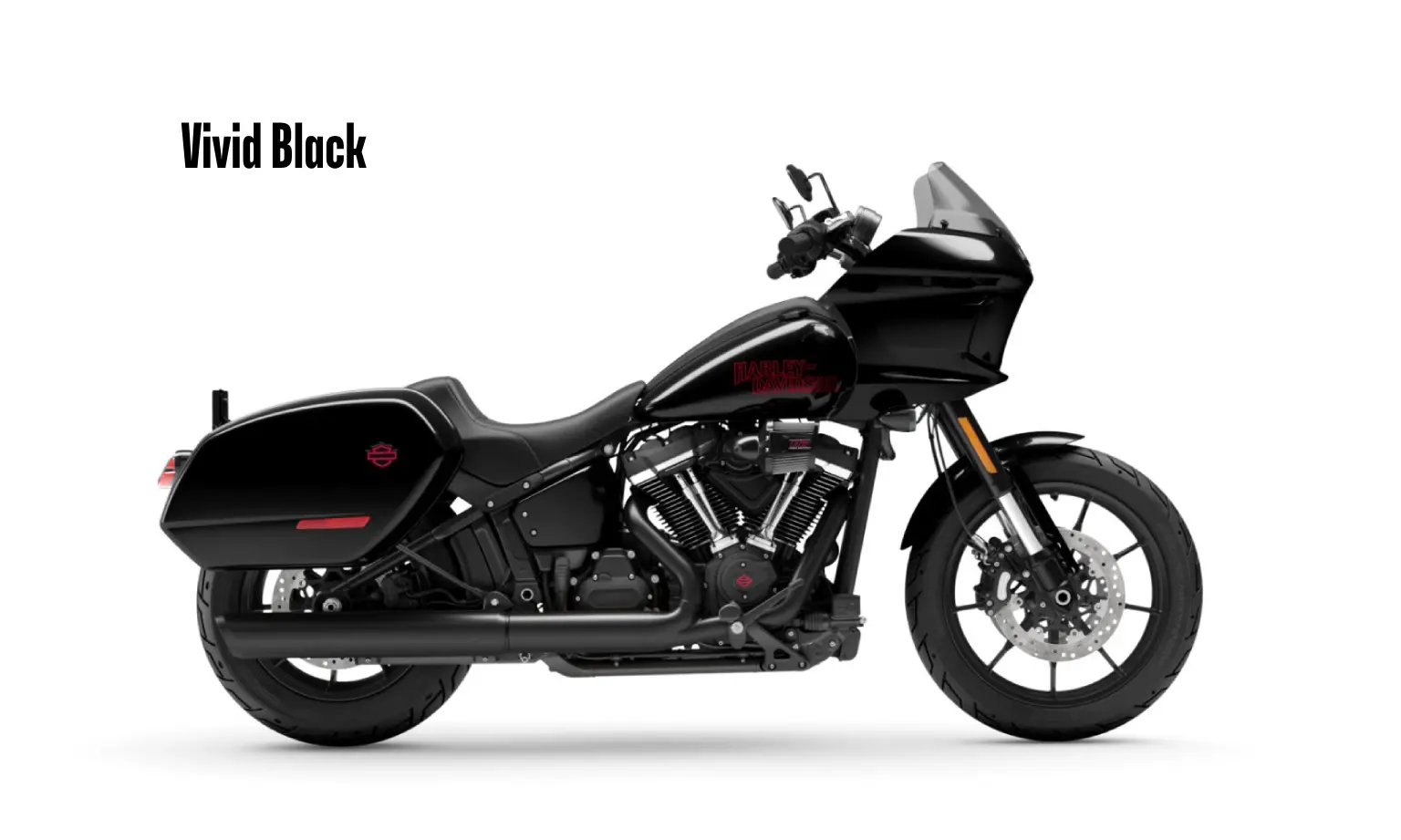

| Vivid Black | 1,171,000฿ |

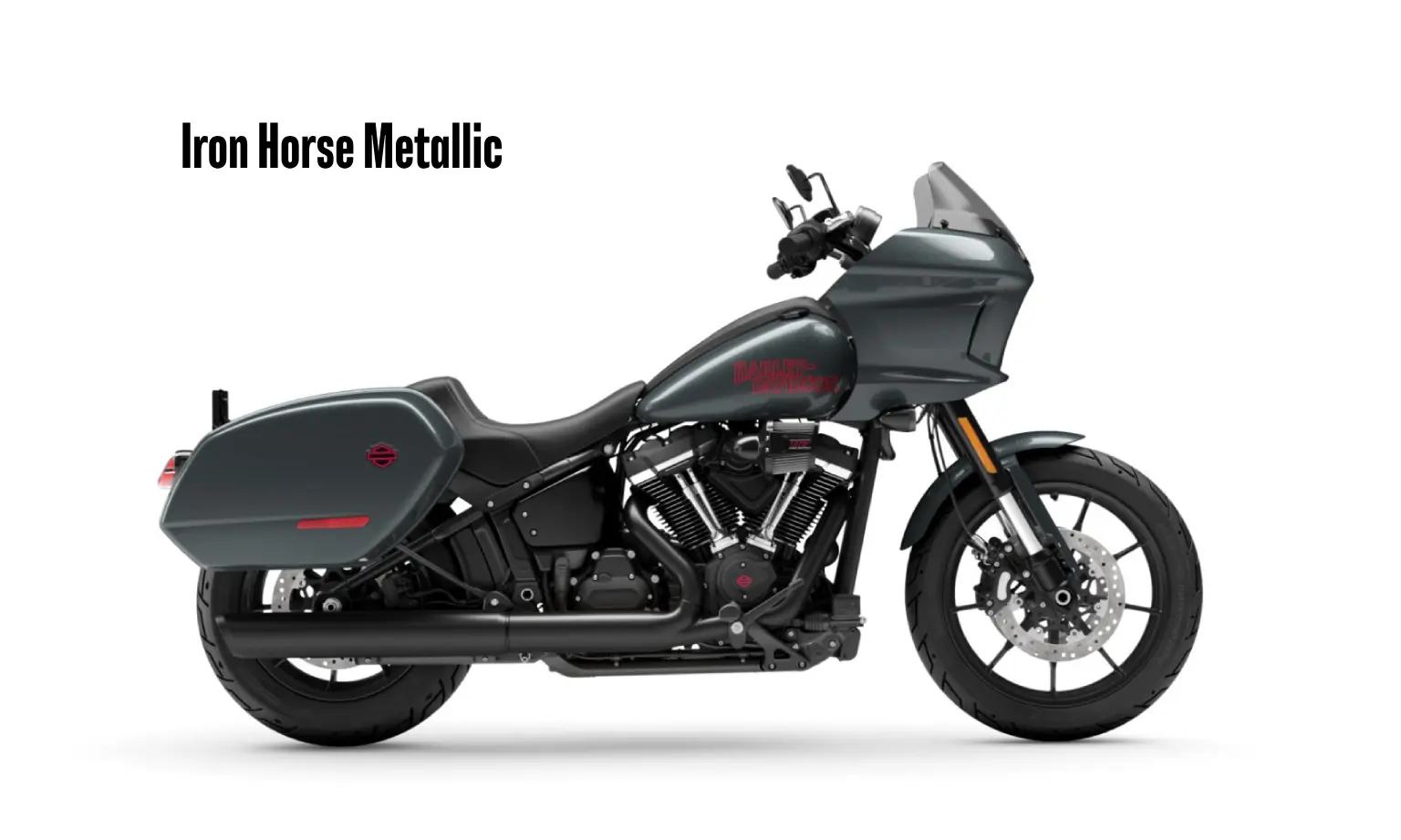

| Iron Horse Metallic | 1,179,000฿ |

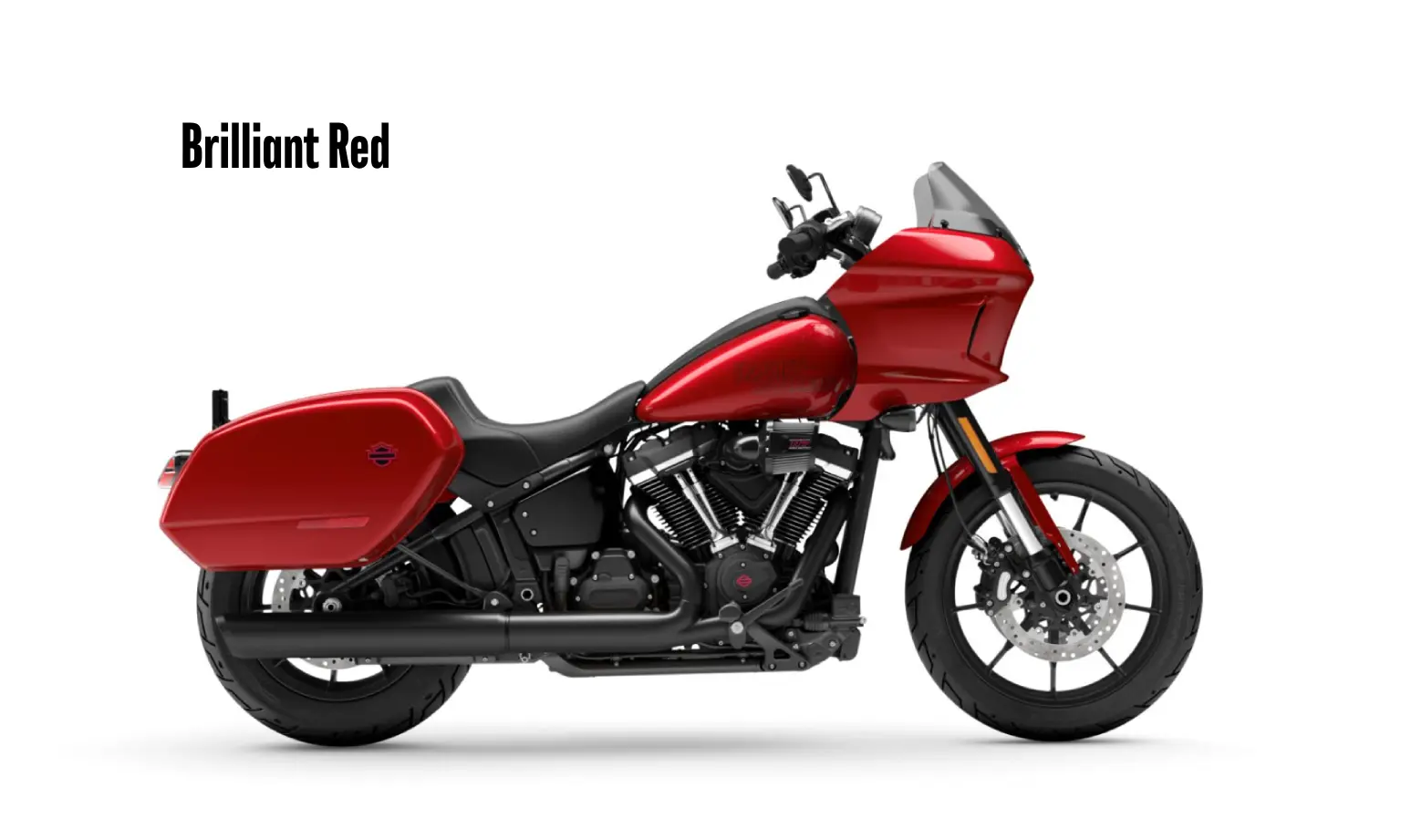

Brilliant Red | 1,179,000฿ |
Mystic Shift | 1,204,000฿ |
