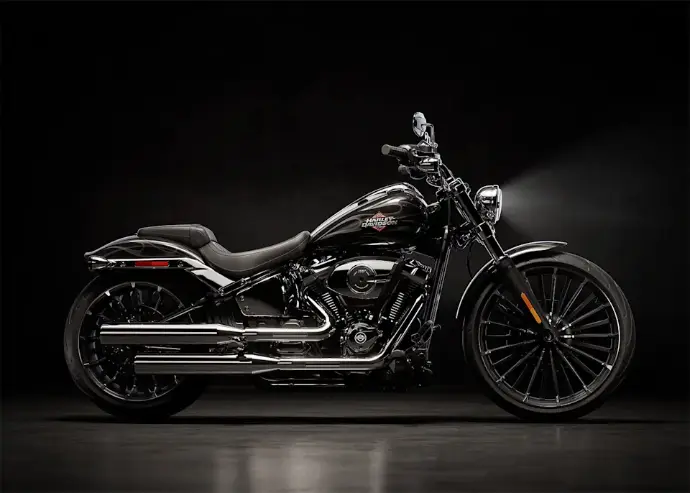

2025 Breakout
With a wide rear tire, bobtail rear fender, long rake, straight handlebars, and a 21-inch front wheel, the Breakout marries classic chopper style with the performance of a Milwaukee-Eight® 117 Custom V-Twin Engine.
KEY FEATURES

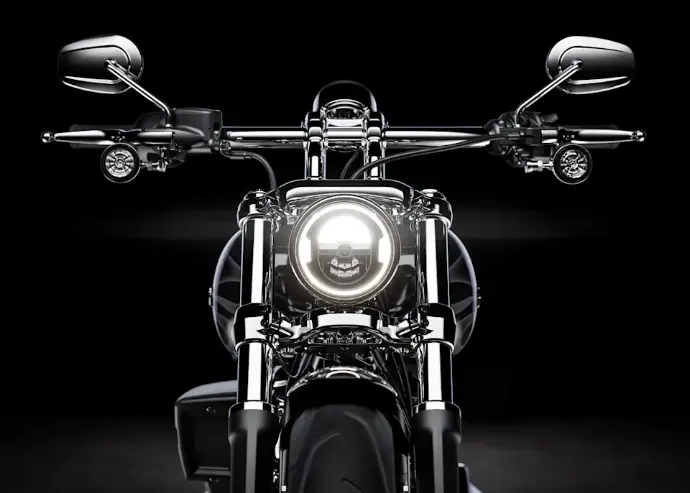

NEW ALL-LED LIGHTING
Compact lighting fits the old-school chopper vibe, while bright white LEDs meet modern standards.

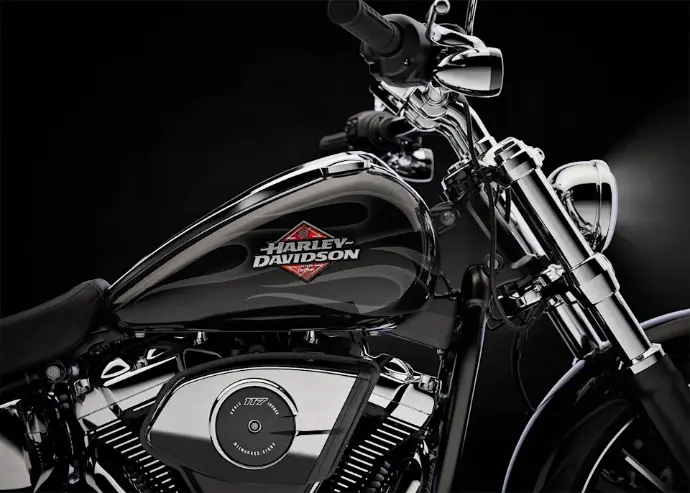

PREMIUM PAINT + GRAPHICS
Five premium paint options include new Factory Custom Midnight Firestorm, with gloss black base and ghost flames.

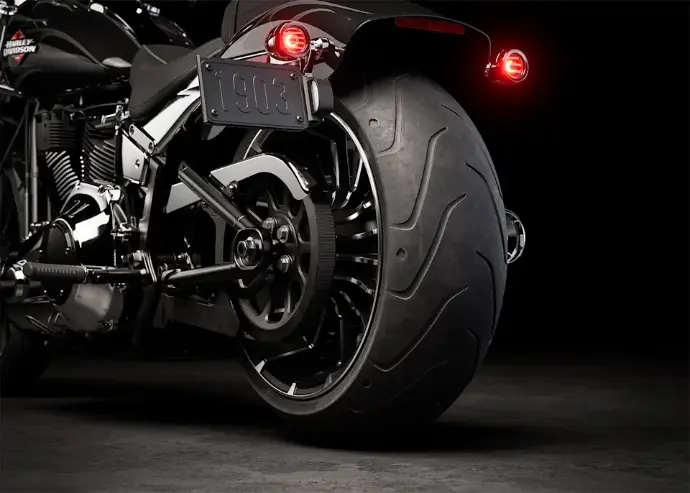

REAR WHEEL
240mm rear tire provides classic chopper styling with updated geometry and peak handling, while maintaining a wide contact patch to get maximum power to the ground during acceleration.

CHOPPER-STYLE RAKE
34-degree rake is classic chopper style, while subtle adjustments to trail and chassis make this bike handle better than any old-school chopper ever could.

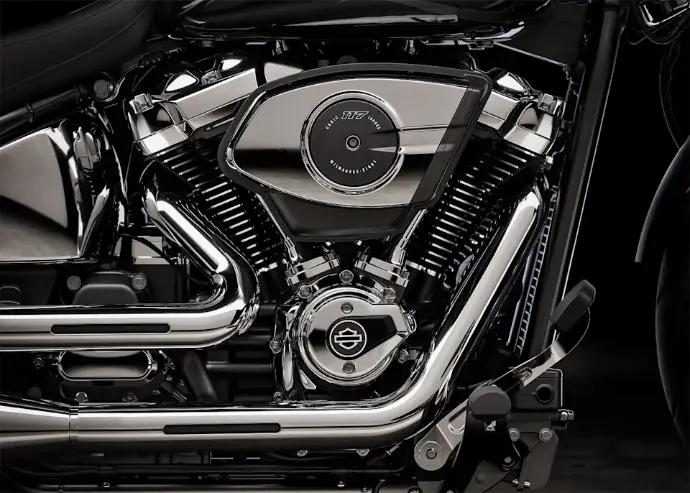

NEW MILWAUKEE-EIGHT® 117 CUSTOM V-TWIN ENGINE
A new, more powerful engine with incredible torque for intense acceleration from stops, commanding passing power, and effortless cruising at highway speeds.

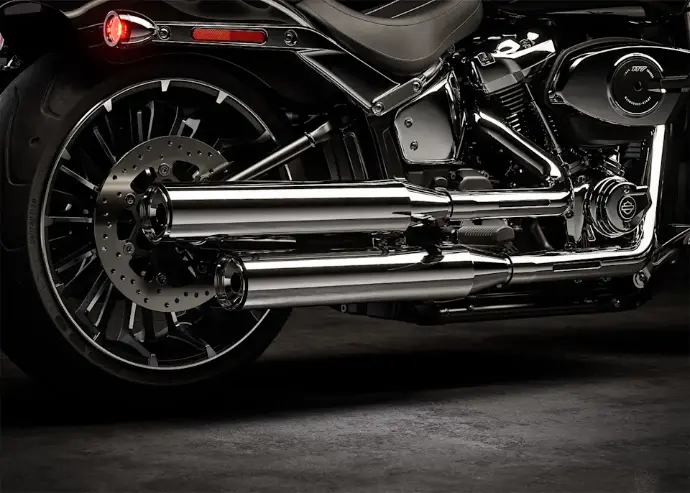

TWO-INTO-TWO EXHAUST
Enjoy classic cruiser lines and high-flowing performance with this two-into-two exhaust system.

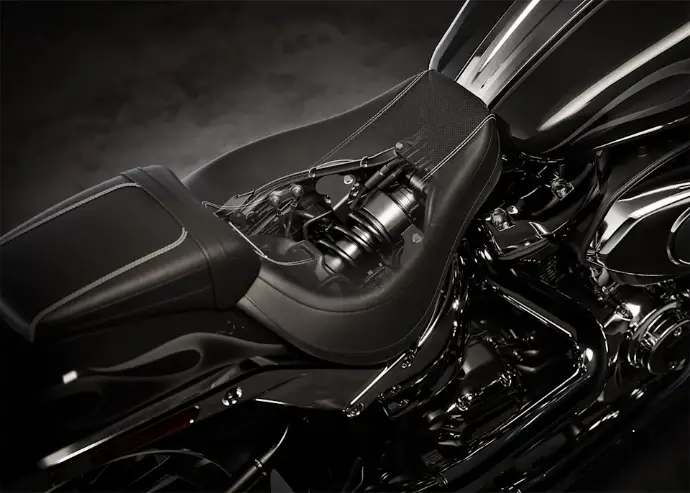

RETUNED REAR SUSPENSION
Hydraulic preload adjustment for monoshock is easily accessed underneath the seat for quick load adjustments to ensure optimal riding conditions.

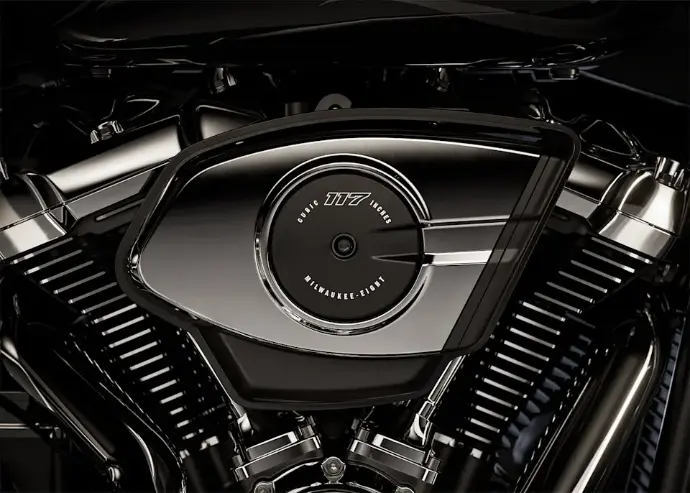

NEW INTAKE
New touring intake provides high-flowing performance and high-performance style.

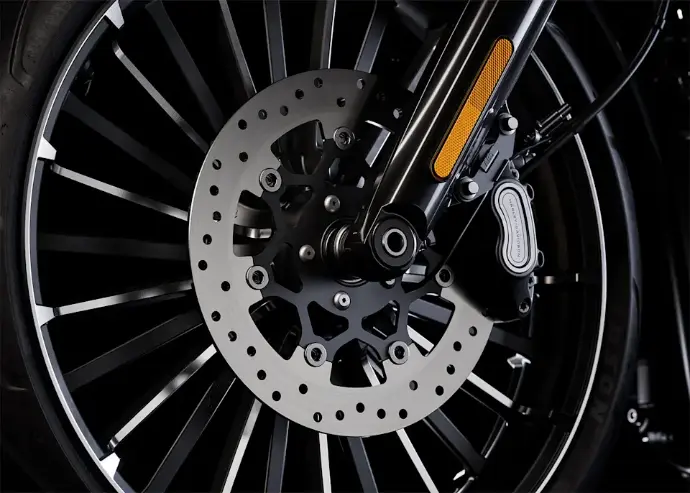

BRAKES
Single 300mm front disc brake highlights the style of the bold 21-inch front wheel while providing incredible stopping performance.

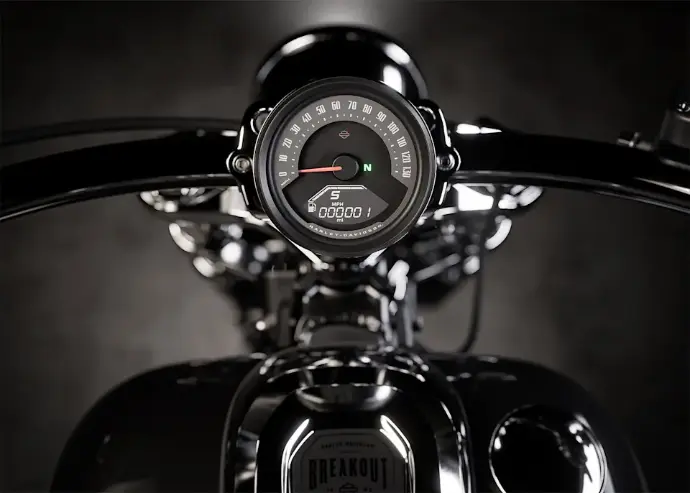

SELECTABLE RIDE MODES + FOUR-INCH ANALOG DISPLAY
The four-inch display features a large, easy-to-read analog gauge positioned above an LCD screen. Hand controls enhance ergonomics and give you quick access to new selectable Ride Modes (Road, Rain, Sport), so you can fine-tune your ride like never before.

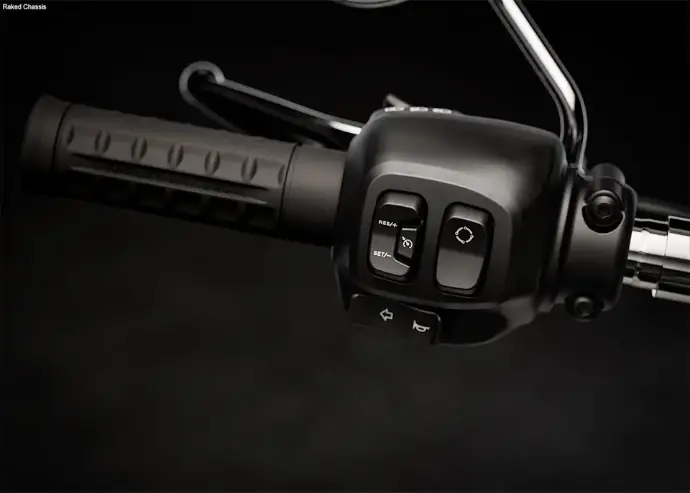

NEW HAND CONTROLS
New ergonomic hand controls accommodate Rider Safety Enhancements, and an adjustable brake lever is quickly tunable to rider preference.

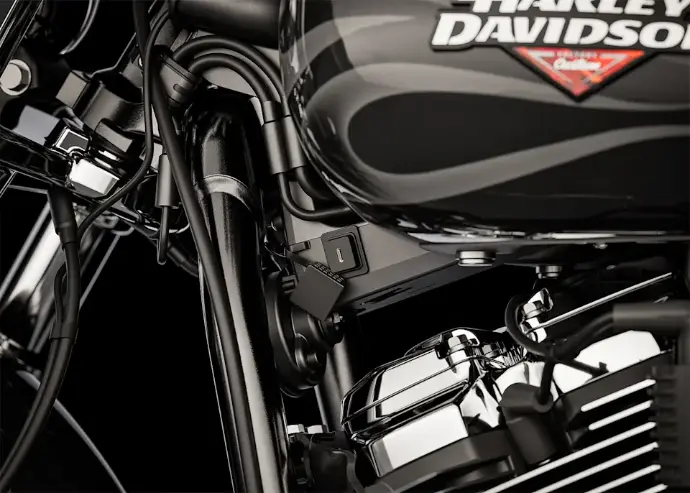

NEW USB-C CHARGING
USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
DETAILED SPECS
Dimensions
Length |
93.5 in. |
Width | 37 in. |
Seat Height, Unladen
| 25.6 in. |
Ground Clearance
| 4.5 in. |
Trail
| 5.7 in. |
Wheelbase
| 66.7 in. |
Tire, Type | Michelin® Scorcher 11, front and rear |
Tires, Front Specification
| 130/60B21,63H,BW |
Tires, Rear Specification
| 240/40R18,79V,BW |
Fuel Capacity
| 5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 681 lb. |
Engine
Engine | Milwaukee-Eight® 117 Custom |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
Compression ratio | 10.3:1 |
Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2-into-2 staggered; catalyst in muffler |
Performance
Engine Torque Testing Method | J1349 |
Engine Torque |
126 ft-lb |
Engine Torque (rpm) | 3000 |
Horsepower |
104 HP / 77 kW @ 4800 rpm |
Lean angle, right (deg.) | 26.8 |
Lean angle, left (deg.) |
26.8 |
Fuel economy testing method | Estimated City/Hwy |
Fuel economy | 49 mpg |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.45 |
Gear Ratios (overall) 3rd | 4.793 |
Gear Ratios (overall) 4th | 3.882 |
Gear Ratios (overall) 5th | 3.307 |
Gear Ratios (overall) 6th |
2.79 |
Chassis
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring |
Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment |
Wheels, Front Type | Gloss black, 26-spoke cast aluminum |
Wheels, Rear Type | Gloss black, 26-spoke cast aluminum |
Brakes, Rotor Type | Front and rear black, Split 7-spoke floating rotors |
Brakes, caliper type | 4-piston fixed front and 2-piston floating rear |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | Headlamp: LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam; Tail/Stop/Front Signal Lights: 8W/28W |
Gauges |
4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
|
Color Options

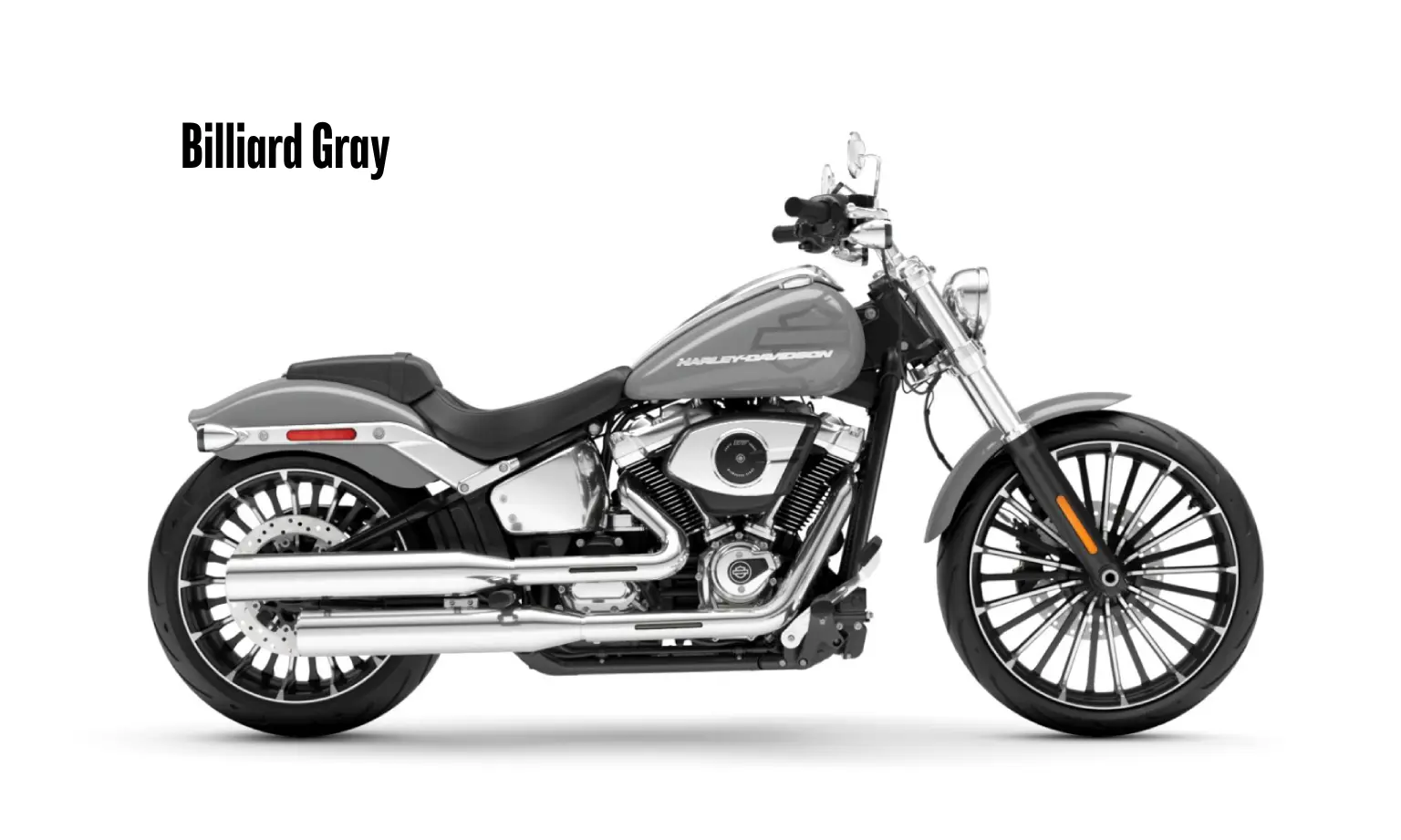

Billiard Gray | 1,262,000฿ |

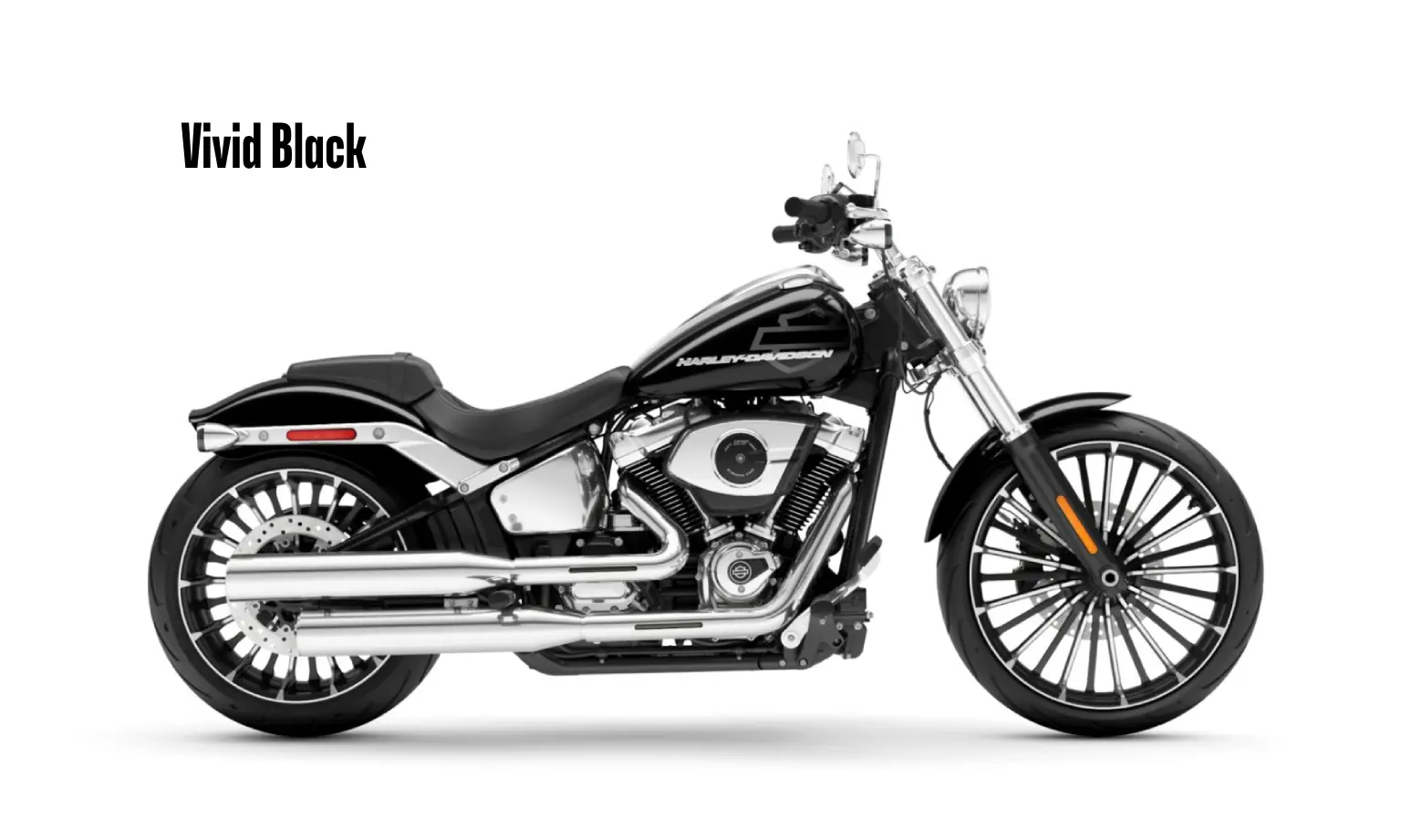

Vivid Black | 1,268,000฿ |

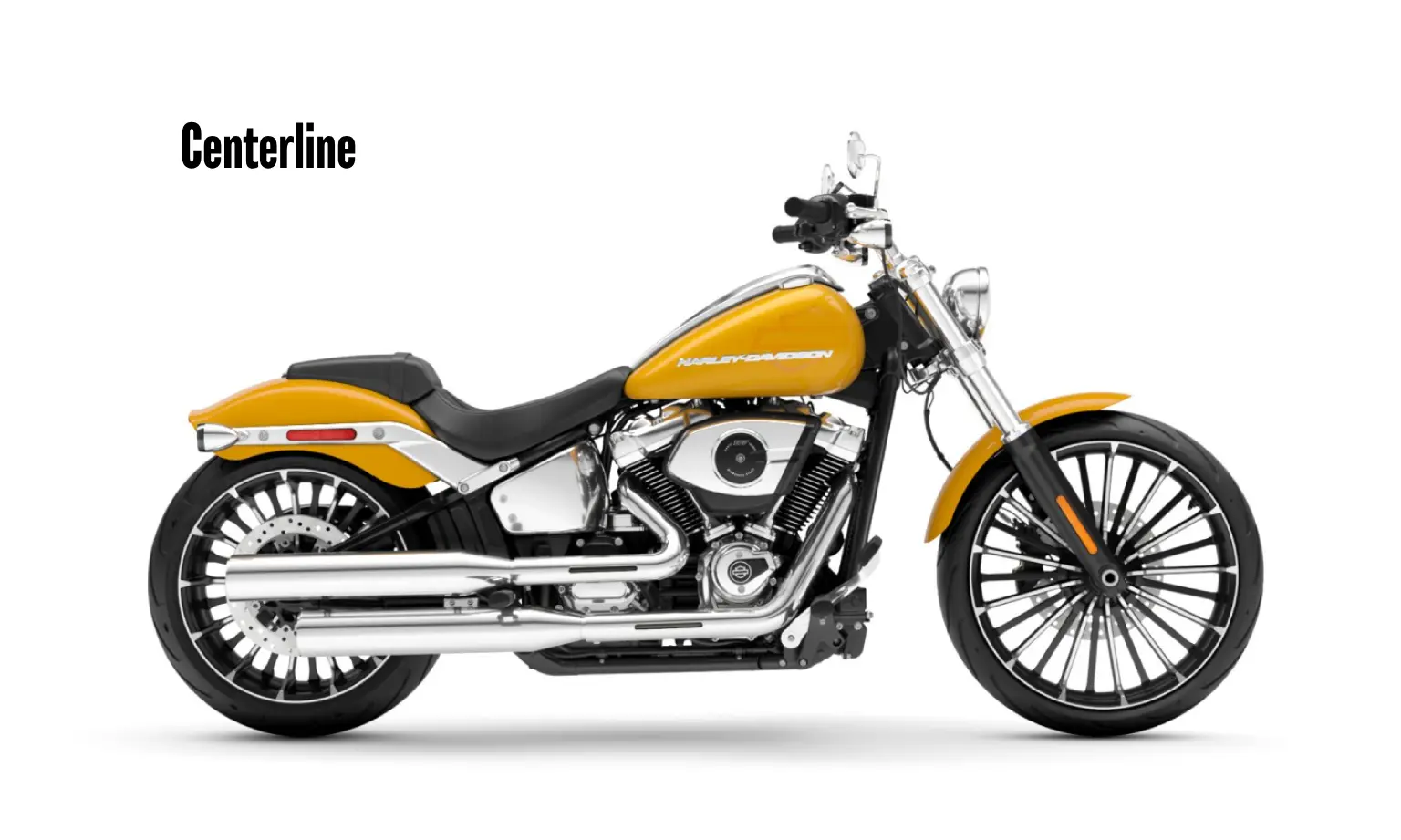

Centerline | 1,269,000฿ |

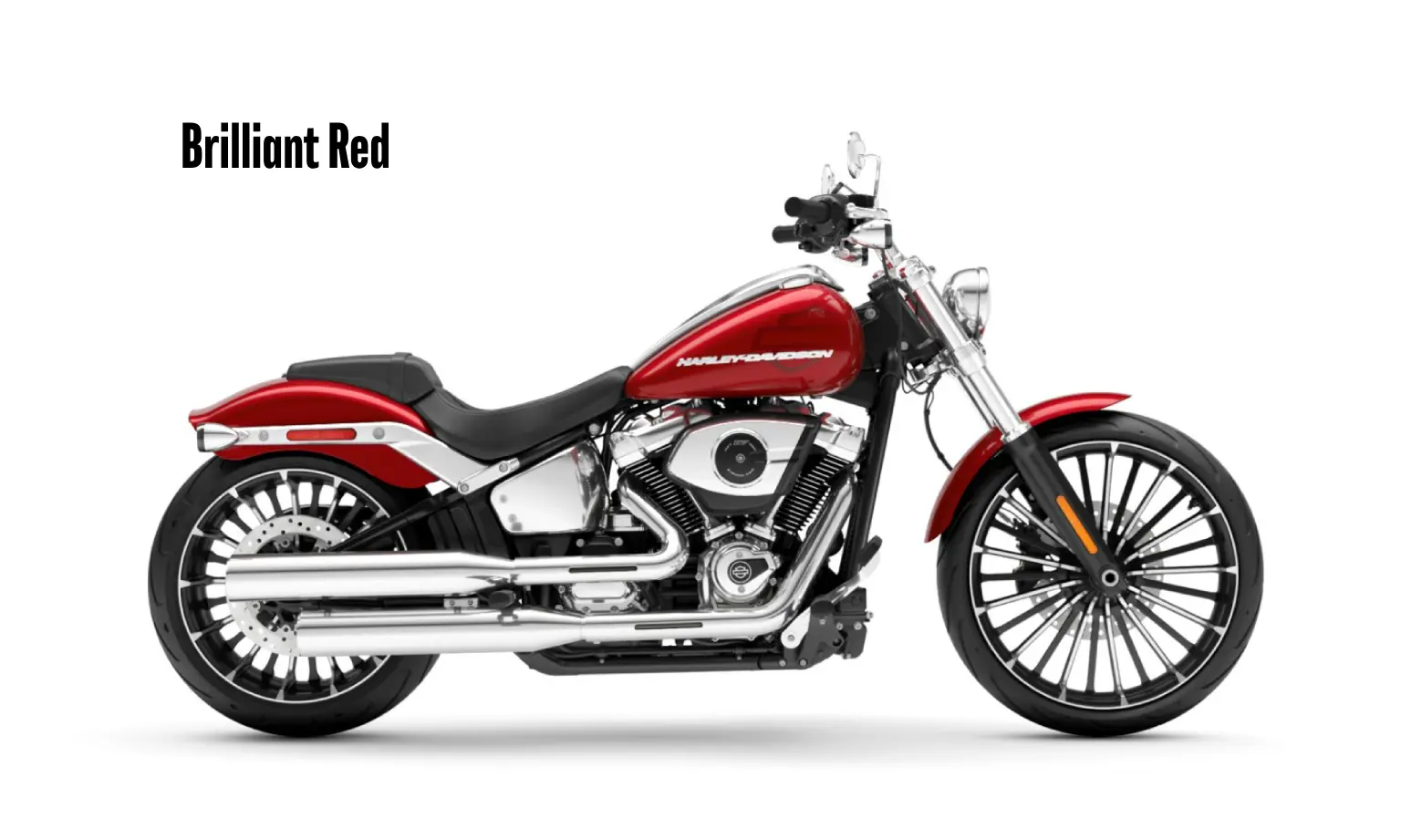

Brilliant Red | 1,270,000฿ |
Midnight Firestorm | 1,291,000฿ |
