2026
Pan America™ 1250 ST
From the first corner to the last mile,
the 2026 Pan America 1250 ST
moves like it’s made for your ride.
COLOR OPTIONS
Move Like You Belong Everywhere
The 2026 Pan America 1250 ST is for riders who know the best stories aren't told in a straight line. Featuring a 150 HP Revolution Max® motor, clutchless Quick Shifter, Adaptive Ride Height, ride modes, and industry-standard 17” wheels for easy customization, it’s a street-tuned, tech-forward machine that moves like you belong everywhere.
KEY FEATURES
Screamin’ Eagle Clutchless QuickShifter
Make precise, seamless shifts without touching the clutch lever. It’s faster, smoother, and keeps the power flowing so you can focus on getting after it.
Industry-Standard 17” Street Wheels
Optimized for on-road performance and compatible with a huge range of tire options, so you can dial in the perfect setup for your riding style.
Lower, Fully Adjustable Suspension
Manually adjustable preload, compression, and rebound let you fine-tune the ride for your weight, style, and the road in front of you, with an inch less travel than the Special for a lower, more planted feel.
Slim Athletic Profile
A narrow radiator shroud, reduced-height windshield, and one-piece low seat put you closer to the ground than the Special, with a stance that feels as good in traffic as it does on the open road
Standard Adaptive Ride Height
Lowers the bike about an inch at a stop for easier footing, then rises back to full travel as you roll away — all without you thinking about it.
DETAILED SPECS
Dimensions
Length | 88.2 in |
Width |
35.3 in. |
Seat Height, Laden + | 29.4 in. |
Ground Clearance
| 6.7 in. |
Rake
|
25 |
Trail
| 3.7 in. |
Wheelbase | 62.2 in. |
Tire, Type
| Michelin®Scorcher "Sport" |
Tires, Front Specification
| 120/70ZR17 58W |
Tires, Rear Specification
| 180/55ZR17 73W |
Fuel capacity | 5.6 gal. |
Oil Capacity (w/filter)
| 4.75 qt. |
Weight, In Running Order
| 546 lb. |
Engine
Engine +
| Revolution® Max 1250 |
Bore
| 4.134 in. |
Stroke
| 2.846 in |
Displacement
| 76.4 cu in |
Compression Ratio
| 13.0:1 |
Fuel System+
| Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2 into 1 into 1; catalyst in header |
Performance
Engine Torque Testing Method |
J1349 |
Engine Torque+ | 94 ft-lbs |
Engine Torque (rpm) | 6750 |
Horsepower | 150 HP / 112 kW @ 8750 rpm |
Lean Angle, Right (deg.) | 37 |
Lean Angle, Left (deg.) | 37 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy | 46 mpg |
Drive Train
Primary Drive |
Gear, 49/89 ratio |
Gear Ratios (overall) 1st | 13.11 |
Gear Ratios (overall) 2nd | 9.687 |
Gear Ratios (overall) 3rd | 7.509 |
Gear Ratios (overall) 4th | 6.057 |
Gear Ratios (overall) 5th |
5.08 |
Gear Ratios (overall) 6th | 4.436 |
Chassis
Front Shock | 47 mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps |
Rear Shock | Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping |
Wheels, Front Type +
| Aluminum cast, satin black |
Wheels, Rear Type +
| Aluminum cast, satin black |

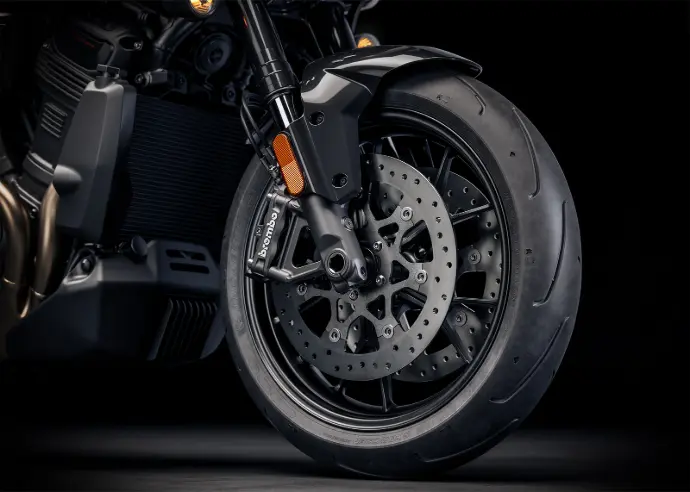

Brakes, Caliper Type
|
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
|
Brakes, Rotor Type
|
Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
|
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
| Headlamp: Daymaker® Adaptive LED Headlamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
| Gauges
| 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
Infotainment
Screen size | 6.8 in |
Type | Color TFT w/ Touch |
| Headset Specifications (if equipped)
| Bluetooth |
Languages | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
Hands-free mobile phone — via Bluetooth | Standard |
| Voice Recognition Languages: Phone functions only
| Phone dependent |
| Voice Recognition Languages: Tuner/Media/Navigation | Phone dependent |
| Rider/Passenger Intercom
|
Headset function only
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
| TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
Text-to-Speech (TTS) Languages
| Phone dependent |
USB | Charging and Instrument update, USB-C, 5V, 3A |
Bluetooth | Phone/Media Supported |
Color Options

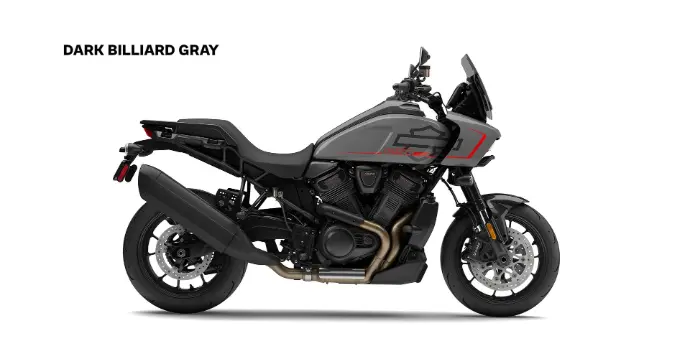

Dark Billiard Gray
| - ฿ |
Vivid Black | - ฿ |
| Aurora Blue Denim | - ฿ |
