2025 CVO Streel Glide®
Modern technologies neatly tucked into traditional bagger design, with Rider Safety
Enhancements working quietly in the background to give you the most out of every ride without interrupting the experience.
KEY FEATURES

Premium Paint
CVO paint is the peak of craftsmanship, with layers that deliver unmatched depth and texture. Each model gets its own custom design, with perfectly matched trim and components to complete the package.

Premium Finishes
Chrome finishes and paint-matched components are different for each paint scheme, ensuring the highest level of custom feel and unique identity.

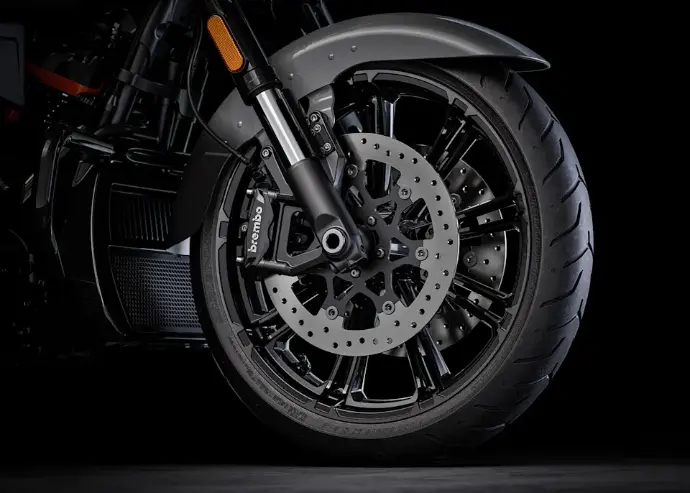

New Cast Wheels
Unique, lightweight cast wheels designed specifically for the 2025 CVO Street Glide are complemented by top-shelf Brembo braking components.

Color-Matched Inserts
Color-matched inserts designed specifically for each CVO color scheme add a level of continuity and depth in style unmatched by any other manufacturer.

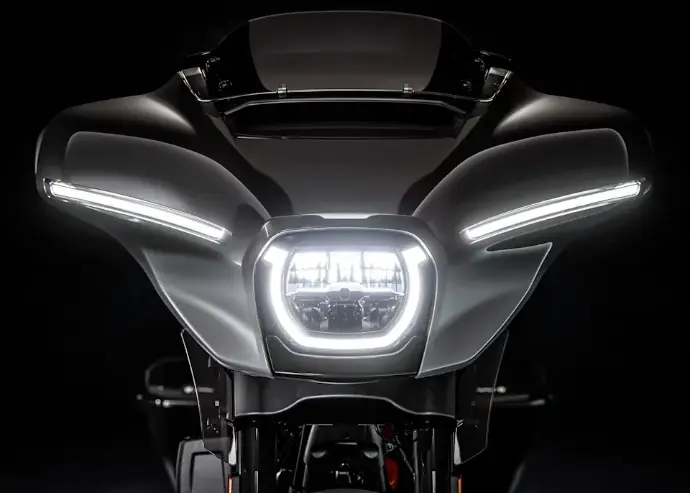

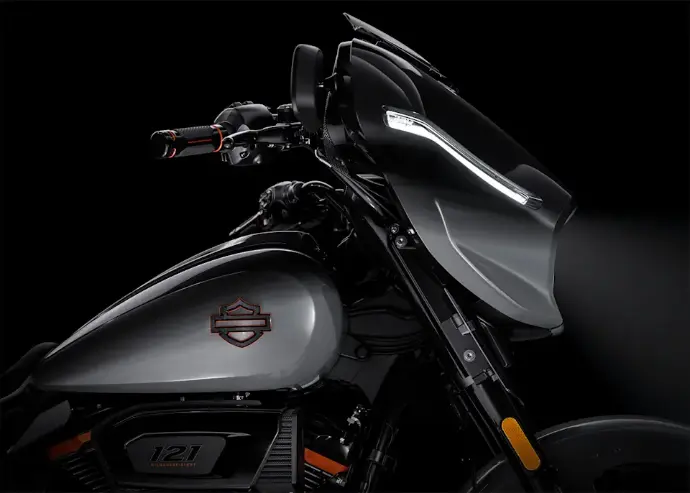

LED Signature Lighting
Integrated lighting eliminates protruding turn indicators for a more streamlined, flowing aesthetic.

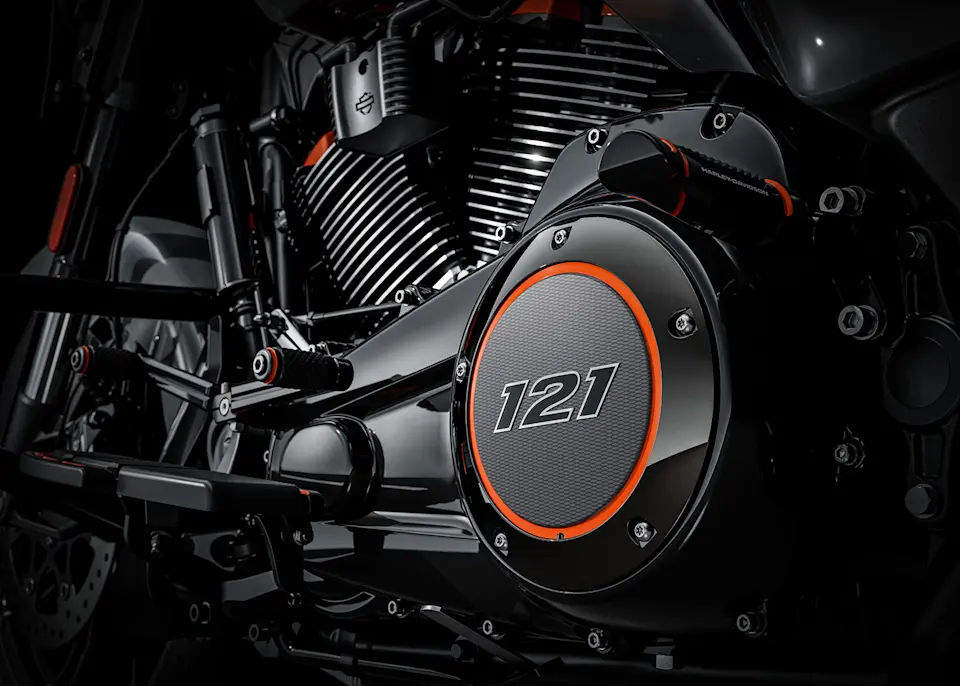

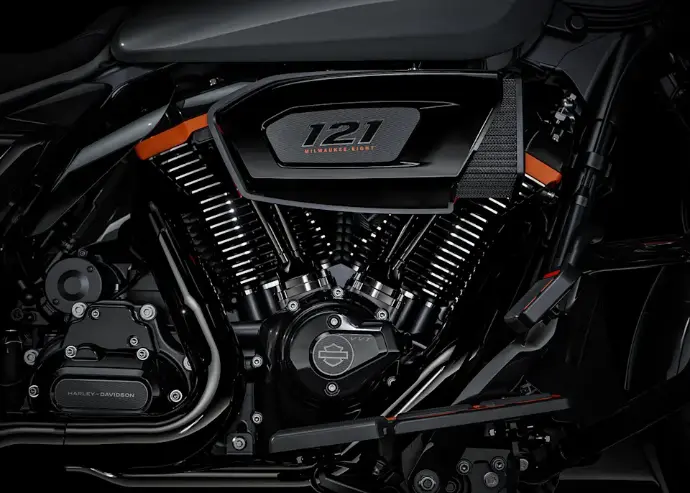

Milwaukee-Eight® VVT 121 Engine
Dynamic performance across a wide rev range, supported by variable valve timing that changes performance based on rpm to deliver the most power possible.

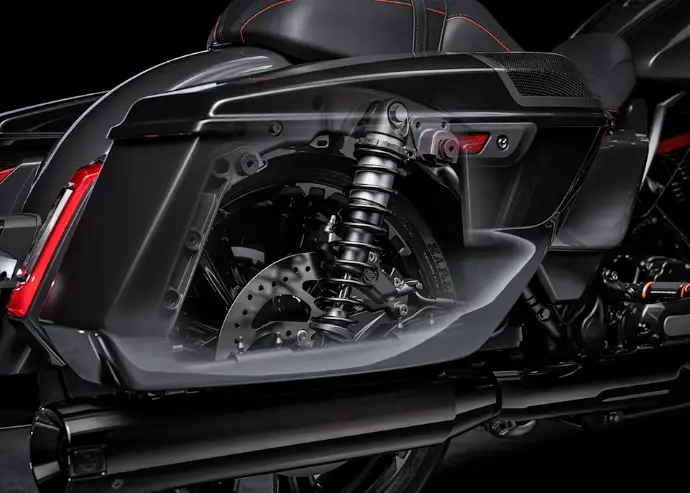

Rear Shocks
Asymmetric rear shocks allow for quick preload adjustment, ensuring optimal performance regardless of changing payload.

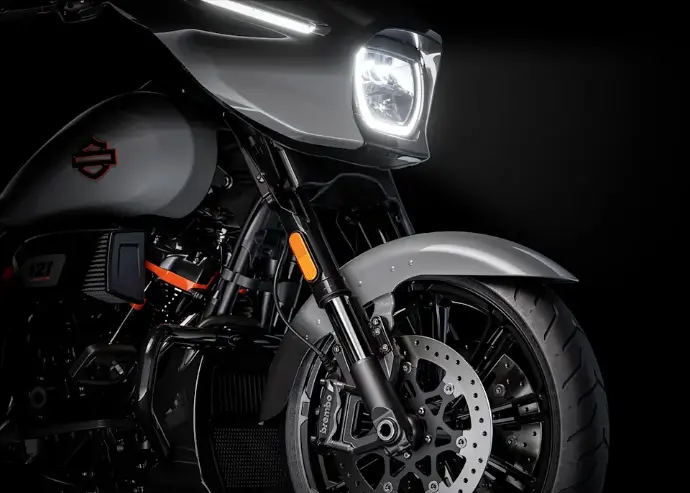

Front Forks
47mm SHOWA® inverted forks are comfortable and plush on the highway while maintaining confidence in fast corners.

Skyline™ OS
Connected infotainment system has Wi-Fi-enabled Skyline OS, intuitive menu navigation, and enhanced on-the-fly map updates.

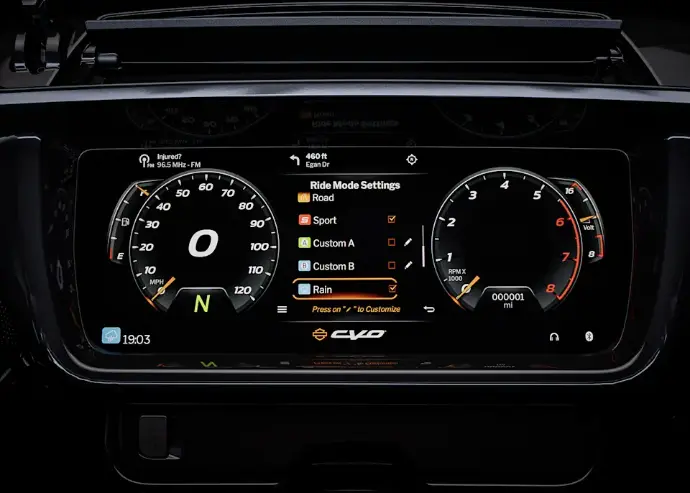

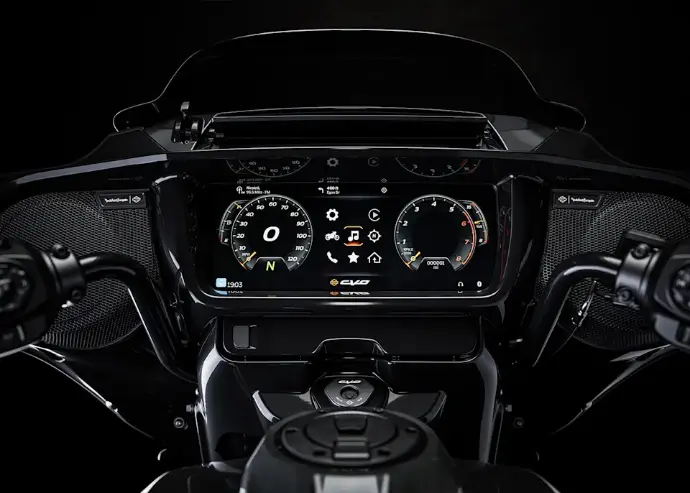

312mm TFT Display
A massive touchscreen you would expect in the latest luxury cars, providing bright and clear information, including ride modes.

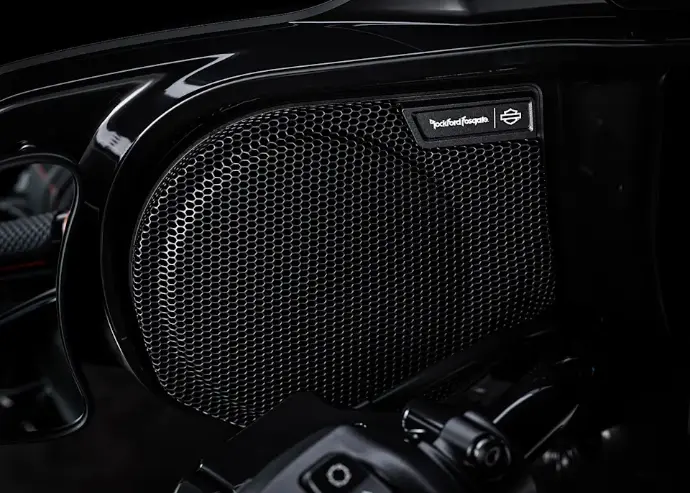

Audio
Powerful H-D® Audio Powered by Rockford Fosgate®–Stage II system built seamlessly into the fairing and saddlebag speaker lids deliver a robust, surround-sound experience.
DETAILED SPECS
Dimensions
Length |
2,590 mm |
Width | 980 mm |
Seat Height, Unladen
|
715 mm |
Ground Clearance
|
140 mm |
Trail
|
170 mm |
Wheelbase
|
1,625 mm |
Tire, Type |
Dunlop® Harley-Davidson Series, bias blackwall front and rear |
Tires, Front Specification
|
130/60B19 M/C 61H |
Tires, Rear Specification
| 180/55B18 M/C 80H |
Fuel Capacity
|
22.7 l |
Oil Capacity (w/filter)
|
4.7 l |
Weight, In Running Order
|
380 kg |
Luggage Capacity -Volume |
0.062 m3 |
Engine
Engine |
Milwaukee-Eight ™ VVT 121
|
Cylinder size | 103.5 mm. |
Stroke duration | 117.5 mm. |
Engine capacity | 1,977 cc |
Compression ratio | 11.4:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |

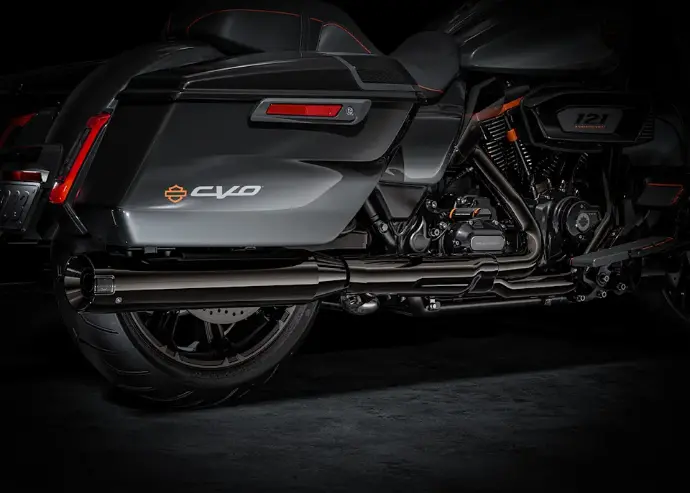

Exhaust | 2-1-2 dual exhaust pipes |
Performance
Engine Torque Testing Method
| EC 134/2014 |
Engine Torque |
183 Nm |
Engine Torque (rpm) | 3500 |
Horsepower | 115 HP / 86 kW @ 5020 rpm |
Lean angle, right (deg.) | 32 |
Lean angle, left (deg.) | 32 |
Fuel economy testing method | EU 134/2014 |
Fuel economy | 6 l/100 km |
CO2 Emissions Testing Method | EU 134/2014 |
CO2 Emissions | 140 g/km CO2 |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.593 |
Gear Ratios (overall) 2nd | 6.65 |
Gear Ratios (overall) 3rd | 4.938 |
Gear Ratios (overall) 4th | 4 |
Gear Ratios (overall) 5th | 3.407 |
Gear Ratios (overall) 6th | 2.875 |
Chassis
Front Fork |
47 mm Inverted 1x1 Front Forks |
Rear Shocks | Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock |
Wheels, Front Type | Gloss black, 9-spoke cast aluminum |
Wheels, Rear Type | Gloss black, 9-spoke cast aluminum |
Brakes, type | Dual floating rotors (front), fixed rotor (rear) |
Brakes, caliper type | 32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights |
LED headlamp, tail/stop, front signal lights and rear turn signals
|
Gauges | Digital gauges integrated within the display
|
Infotainment
Screen size |
12.3 in (312 mm) |
Infotainment system | Skyline™ OS |
Type | Full Color TFT |
Watts per channel |
125 |
Speakers | 4 |
Speaker size |
Two 6.5in fairing speakers, and two 5x7in saddlebag speakers |
Headset specifications (if equipped) |
Harley-Davidson Packtalk Edge wireless Bluetooth® headset |
AM | Standard |
FM | Standard |
Weather Band (WB)
| Supported |
Languages / Text-to-Speech (TTS) languages | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
Hands-free mobile phone — via Bluetooth | Standard |
Voice recognition: phone functions only | Phone dependent |
Voice Recognition Languages: Tuner / Media / Navigation | Phone dependent |
Rider / passenger intercom | Standard (passenger headset sold separately), VOX is available for HD headsets |
Vehicle information screen | Standard |
USB | USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage. |
Bluetooth | Phone/Media Player, Headset |
Color Options

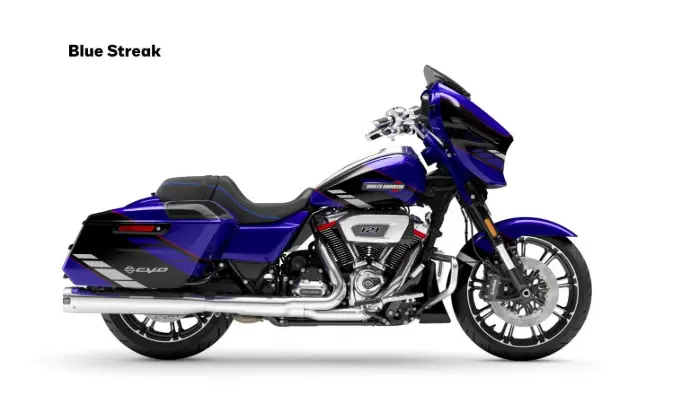

Blue Streak
| ฿3,191,000 |

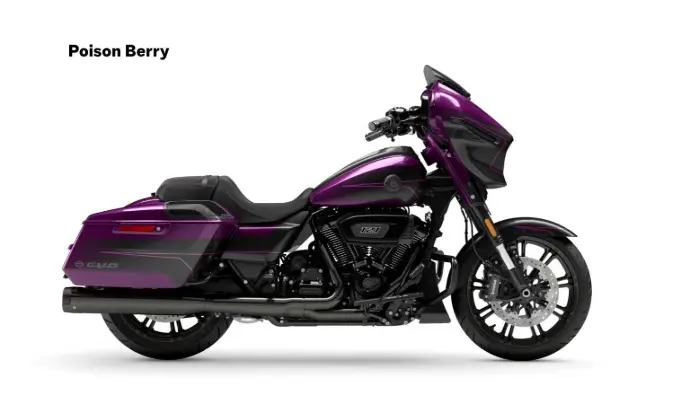

Poison Berry
| ฿3,191,000 |

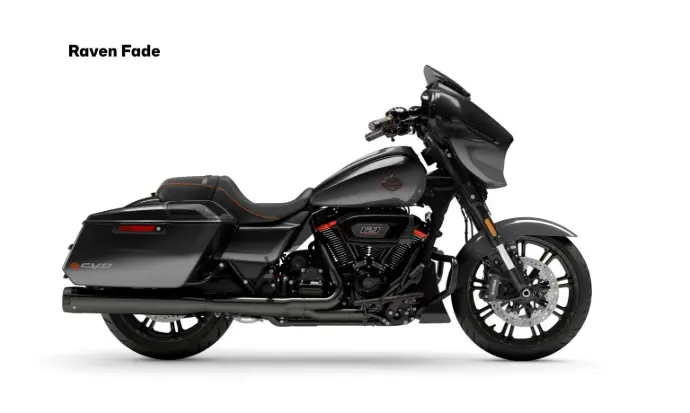

Raven Fade | ฿3,191,000 |
