2026
PAN AMERICA™ 1250 SPECIAL
Built to handle whatever’s past the pavement,
the Pan America 1250 Special turns the unknown
into just another great riding day.
COLOR OPTIONS
Built to Go Where the Road Won't
From city slab to backcountry rock, the Pan America 1250 Special delivers 150 HP of adaptable power at the flick of the throttle, in a package that weighs less than 580 lbs, has Rider Safety Enhancements, a 6.8" touchscreen display and optional Adaptive Ride Height. It’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.
KEY FEATURES

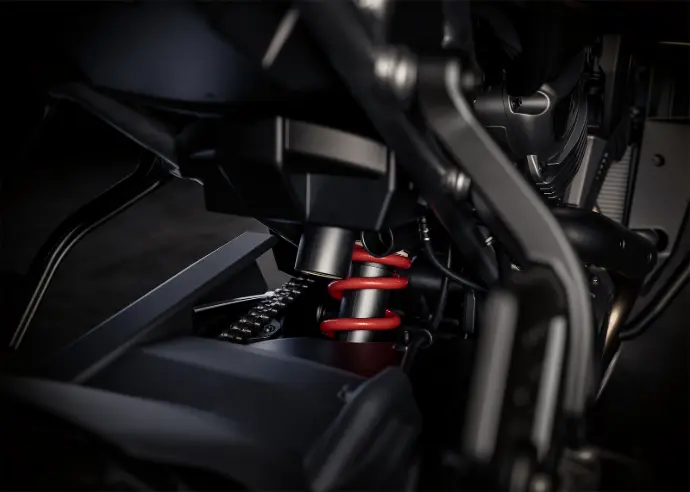

Semi-Active Suspension That Adapts to the Ride
Semi-active suspension automatically fine-tunes itself as you ride, keeping the bike planted and composed whether the day takes you over smooth sweepers or down rough backroads.

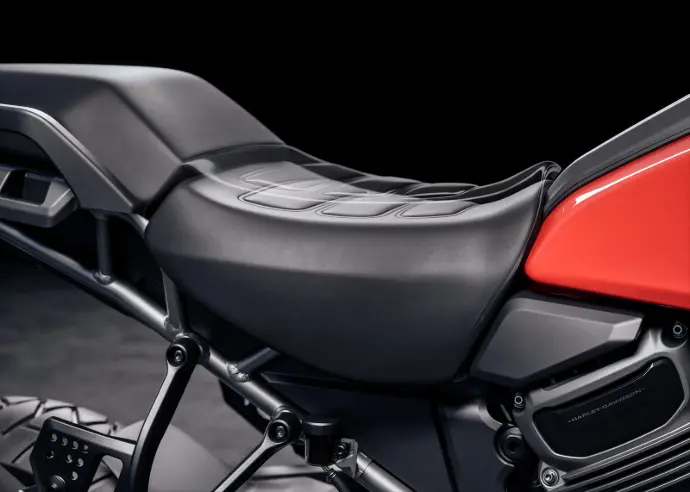

Adjustable Seat Height with Adaptive Confidence
Switch between 31.1" and 32" seat heights to fine-tune your riding position, then let available Adaptive Ride Height automatically lower the bike at stops for surer footing. The result: a fit that keeps you comfortable and in control from kickstand up to kickstand down.

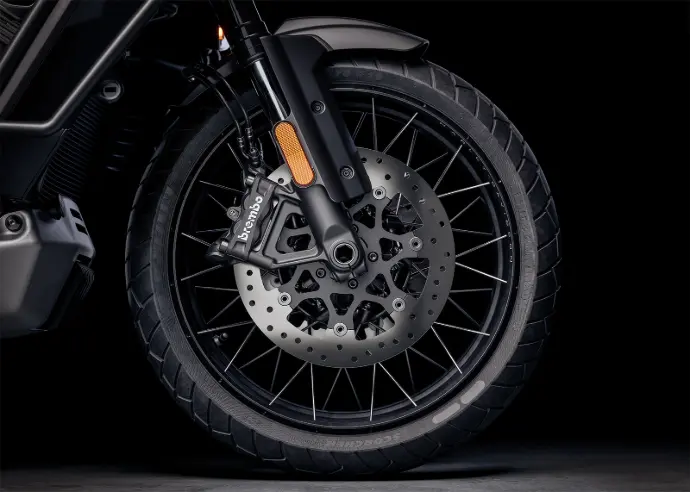

Wheels + Tires Ready for Any Surface
Michelin® Scorcher Adventure radials deliver confident grip from city pavement to backcountry curves, while optional tubeless laced wheels open the door to even bigger miles and rougher roads.
6.8” Full-Color TFT Touchscreen
Navigation, bike data, and Bluetooth® connectivity are just a tap away on the glove-friendly touchscreen, making it easy to stay informed without breaking your rhythm.
Advanced Charging + Battery Performance
A larger-capacity battery and improved charging system deliver faster charging at idle, reliable cold starts, and the power to run your accessories even if Mother Nature doesn’t have an outlet for you.
DETAILED SPECS
Dimensions
Length | 89.4 in. |
Width |
38.4 in. |
Seat Height, Laden +
| Low/High Seat Position; 31.1 in./32 in. |
Ground Clearance | 6.9 in. |
Rake
| 25 |
Trail
| 4.3 in. |
Wheelbase | 62.4 in. |
Tire, Type
| Michelin® Scorcher “Adventure”, Radial |
Tires, Front Specification
| 120/70R19 60V |
Tires, Rear Specification
| 170/60R17 72V |
Fuel capacity | 5.6 gal. |
Oil Capacity (w/filter)
| 4.75 qt. |
Weight, In Running Order
| 578 lb. |
Engine
Engine +
| Revolution® Max 1250 |
Bore
| 4.134 in. |
Stroke
| 2.846 in |
Displacement
| 76.4 cu in |
Compression Ratio
| 13.0:1 |
Fuel System +
| Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust | 2 into 1 into 1; catalyst in header |
Performance
Engine Torque Testing Method |
J1349 |
Engine Torque + | 95 ft-lb |
Engine Torque (rpm) | 6750 |
Horsepower | 150 HP / 112 kW @ 8750 rpm |
Lean Angle, Right (deg.) | 42 |
Lean Angle, Left (deg.) | 42 |
Fuel Economy Testing Method | Estimated City/Hwy |
Fuel Economy +
| 46 mpg |
Drive Train
Primary Drive |
Gear, 49/89 ratio |
Gear Ratios (overall) 1st | 13.11 |
Gear Ratios (overall) 2nd | 9.687 |
Gear Ratios (overall) 3rd | 7.509 |
Gear Ratios (overall) 4th | 6.057 |
Gear Ratios (overall) 5th |
5.08 |
Gear Ratios (overall) 6th | 4.436 |
Chassis
Front Shock | 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps |
Rear Shock | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping |
Wheels, Optional Style Type
| Annodized aluminum tubeless laced |
Wheels, Front Type +
| Aluminum cast, satin black |
Wheels, Rear Type + | Aluminum cast, satin black |
Brakes, Caliper Type
|
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
|
Brakes, Rotor Type
|
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
|
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
| Headlamp: Daymaker® Adaptive LED Headlamp with 6-segment LED banking lamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
| Gauges
| 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
Infotainment
Screen size | 6.8 in |
Type | Color TFT w/ Touch |
| Headset Specifications (if equipped)
| Bluetooth |
Languages | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
Hands-free mobile phone — via Bluetooth | Standard |
| Voice Recognition Languages: Phone functions only
| Phone dependent |
| Voice Recognition Languages: Tuner/Media/Navigation | Phone dependent |
| Rider/Passenger Intercom
|
Headset function only
|
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
| TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
Text-to-Speech (TTS) Languages
| Phone dependent |
USB | Charging and Instrument update, USB-C, 5V, 3A |
Bluetooth | Phone/Media Supported |
Color Options

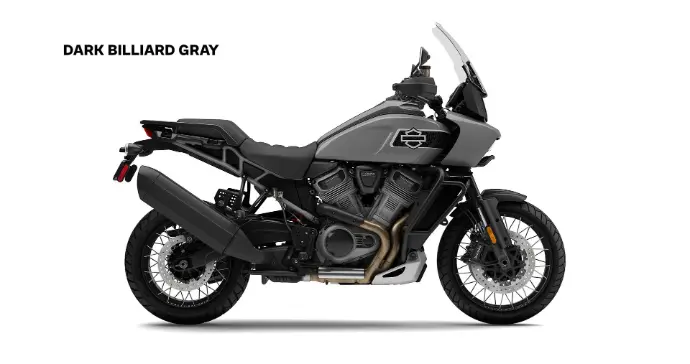

Dark Billiard Gray
| - ฿ |

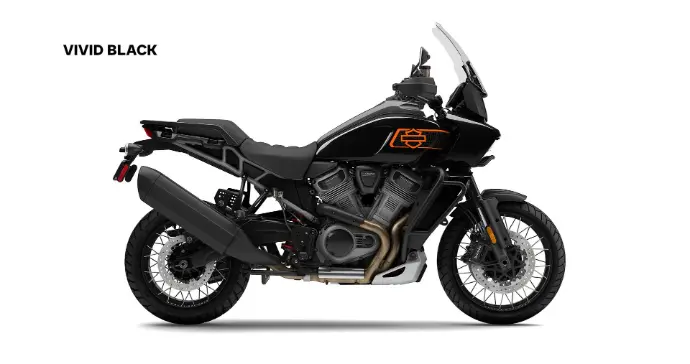

Vivid Black | - ฿ |
| Blood Orange | - ฿ |
