2025 CVO Road Glide® ST
The most powerful engine ever in a Harley-Davidson production bike, paired with fully adjustable suspension, Brembo brakes, and finely tuned ergonomics.
KEY FEATURES

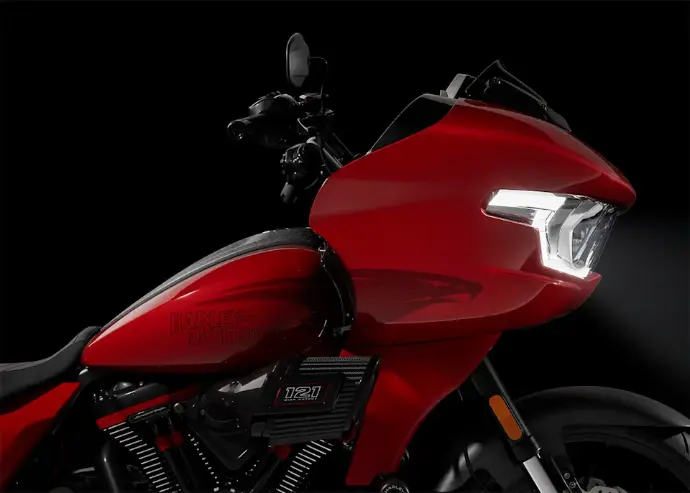

Premium Paint
Screamin’ Eagle graphic flows from the sides of the fairing into the fuel tank, and Performance Red pops throughout the powertrain.

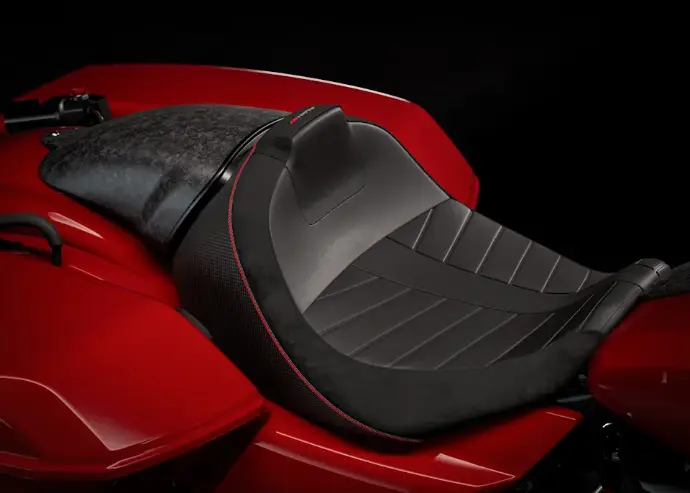

Solo Seat
The lightweight and aggressive solo seat is comfortable, with a steep back to provide lower-back support in hard launches and grip during cornering.

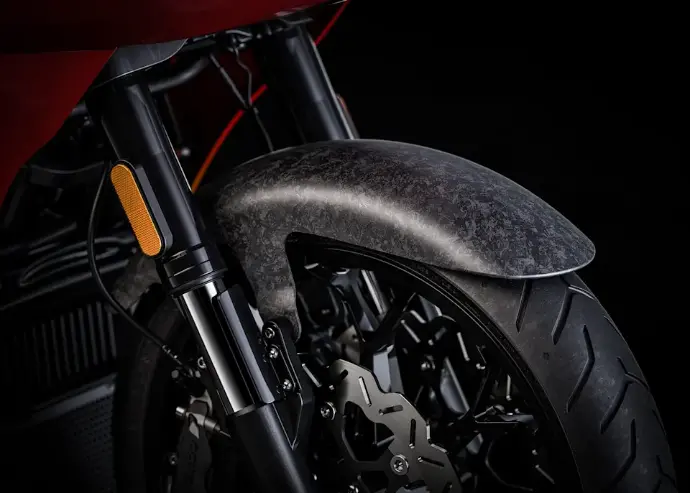

Forged Carbon Fiber Front Fender
Forged carbon fiber replaces the typical steel front fender, cutting weight with a race-inspired, ultra-premium finish.

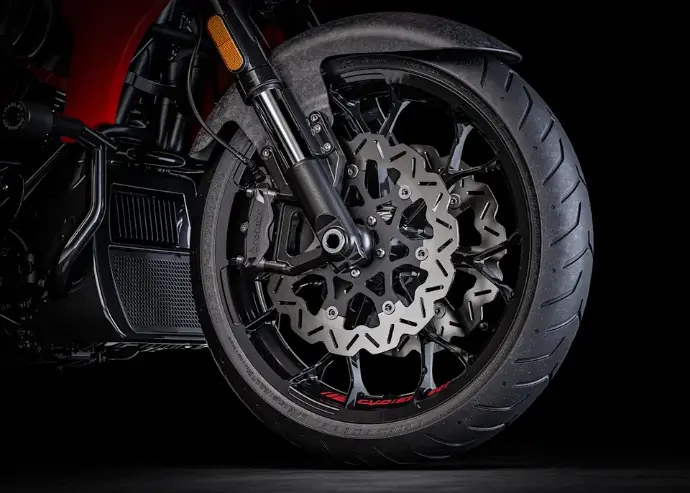

Cast Wheels
Cast aluminum wheels reduce unsprung weight for lighter handling and improved performance, with dual floating brake rotors that dissipate heat more effectively than standard rotors.
P&A Tall Risers + Moto-Bar
Tall risers and moto bars tune ergonomics to your exact preference. Protect that limited-edition paint with a Flat-Out bar, a more minimally designed engine guard that covers you in case of a low-speed tip-over.

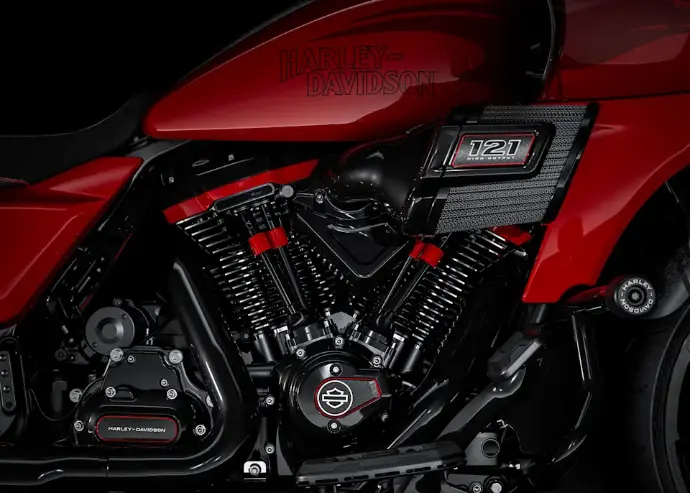

Milwaukee-Eight® 121 HO Engine
With 95 kW @ 4900 rpm and 197 Nm of torque, this is the strongest factory-installed engine ever used in a production Harley-Davidson, with a high-performance camshaft, Heavy Breather Intake, and rev limit increased to 5,900 rpm.

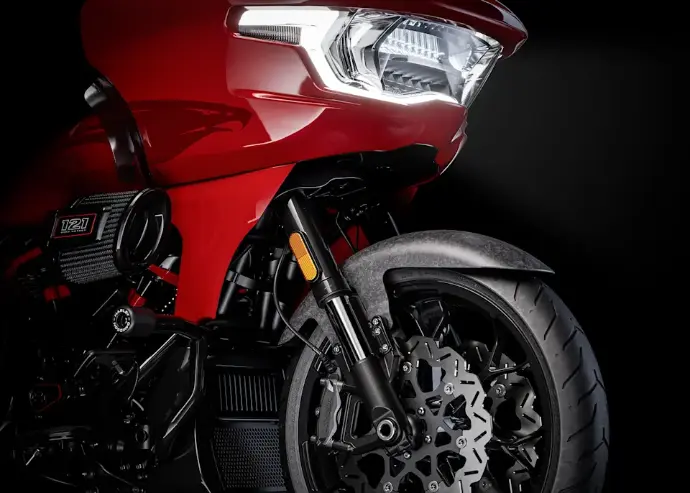

Front Forks
With 117 mm of travel, the fully adjustable SHOWA® 1.8 in inverted forks can be precisely tuned for compression, rebound, and preload to suit your comfort level and riding style.

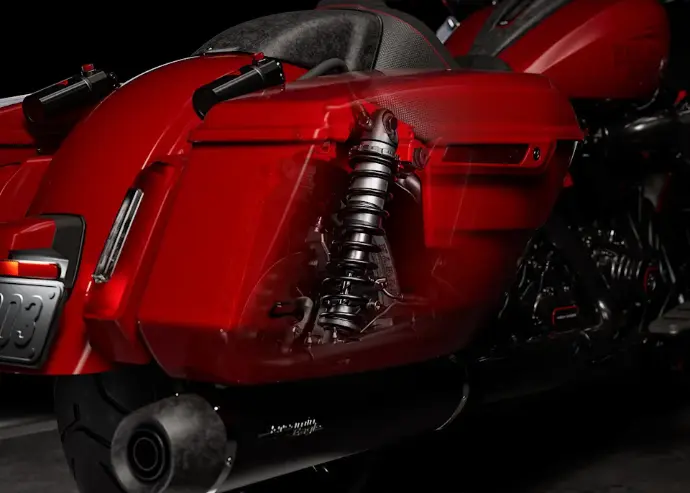

Rear Shocks
Dual outboard SHOWA® Remote Reservoir shocks with three inches of travel, positioned between the saddlebags and rear fender, keep oil and gas separated for consistent performance under demanding conditions.

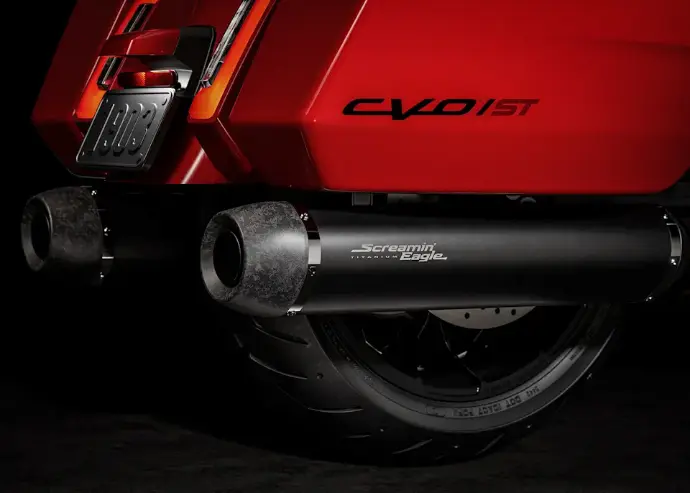

Titanium Mufflers
Lightweight, high-strength titanium mufflers increase flow for maximum engine performance, while delivering a deep, muscular exhaust tone.

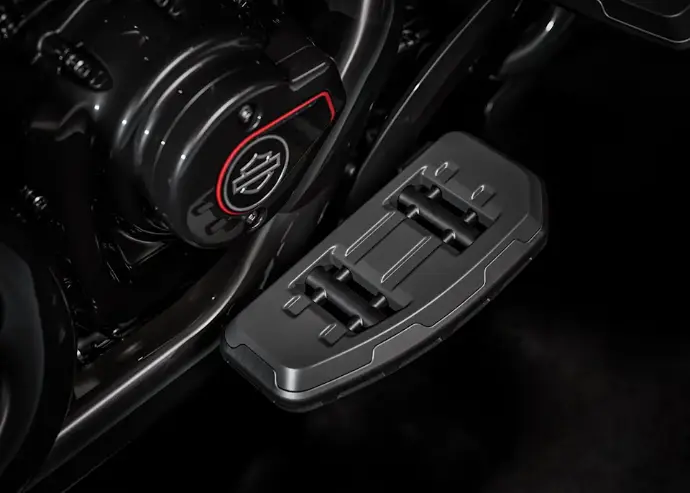

Mini-boards
Mini floorboards provide ample foot support without being too bulky or limiting lean angle.

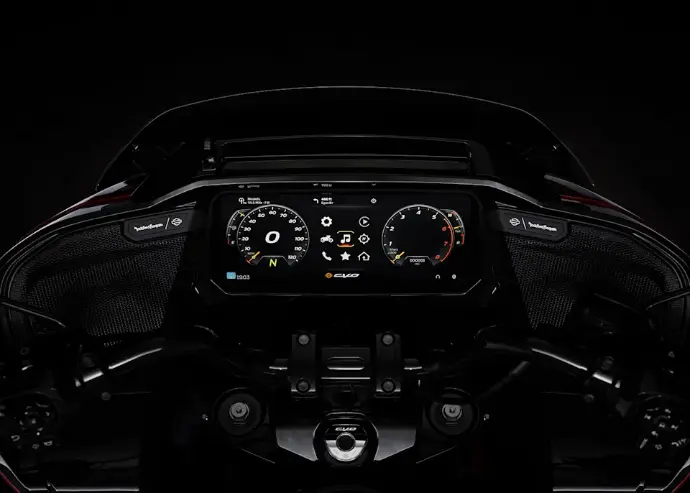

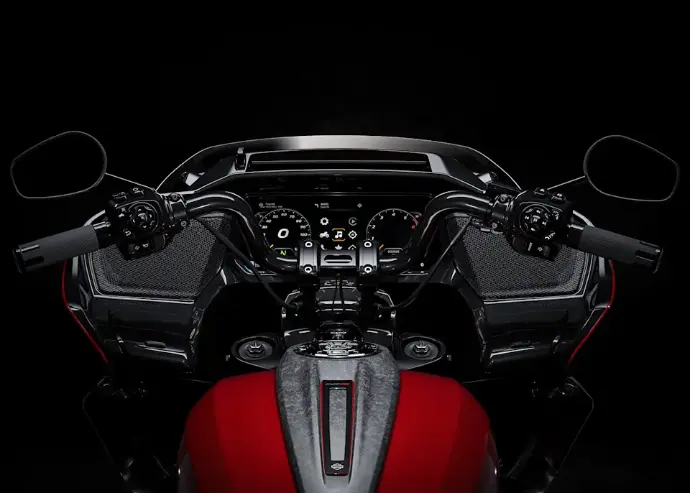

312 mm TFT Display + Skyline™ OS
The large, bright touchscreen display provides gauges, ride modes, and navigation with traffic and weather overlays. It gives easy access to the Rockford Fosgate Stage II audio system, Ride Modes, and Rider Safety Enhancements, all at the touch of a finger.

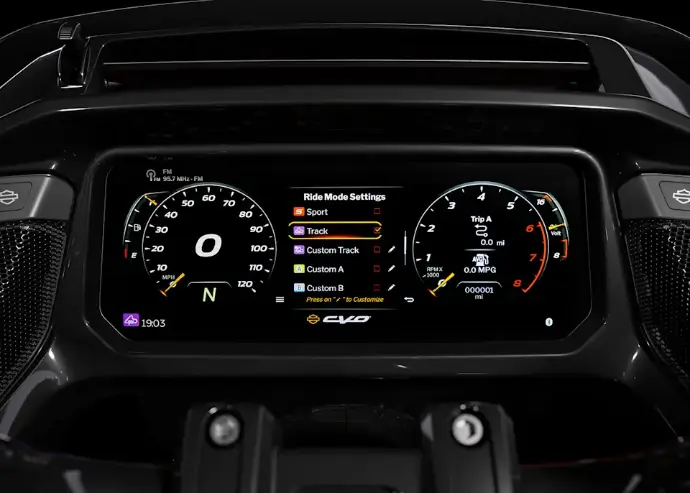

Ride Modes
Eight available ride modes give you more options for precise tuning on the go. Track and Track + mode unlock levels of performance reserved for closed-course riding and race use.
DETAILED SPECS
Dimensions
Length |
2,410 mm. |
Seat Height, Laden |
720 mm
|
Height from ground | 130 mm. |
Front fork offset | 26 |
Rear range | 170 mm. |
Wheelbase | 1,625 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 130/60B19 M/C 61H |
Rear tire specifications | 180/55B18 M/C 80H |
Fuel capacity | 22.7 liters |
Engine oil capacity (with filter) | 4.7 liters |
Shipping weight | 363 kg. |
Ready to ride weight | 380 kg. |
Luggage capacity - volume |
0.069 m. 3
|
Engine
Engine | Milwaukee-Eight ™ 121 High Output |
Cylinder size | 103.5 mm. |
Stroke duration | 117.5 mm. |
Engine capacity | 1,977 cc |
Compression ratio | 11.4:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust |
2-1-2 Dual Exhaust Pipes, Titanium Exhaust Pipe with Carbon Fiber Tip Cover |
Performance
Engine Torque Testing Method
|
J1349
|
Engine Torque | 197 Nm |
Engine Torque (rpm) | 4000 |
Lean angle, right (deg.) | 32 |
Lean angle, left (deg.) | 32 |
Fuel economy testing method | Estimated City/Hwy |
Fuel economy | 44 mpg (5.3 l/100 km) |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st |
10.233 |
Gear Ratios (overall) 2nd | 7.093 |
Gear Ratios (overall) 3rd |
5.268 |
Gear Ratios (overall) 4th | 4.266 |
Gear Ratios (overall) 5th |
3.635 |
Gear Ratios (overall) 6th | 3.067 |
Chassis
Front Shock | 1x1 47mm inverted front forks with adjustable preload, compression damping and rebound damping |
Rear Shock | Emulsion suspension with adjustable preload, viscous pressure and rebound damper |
Wheels, Front Type | 7-spoke aluminum, black |
Wheels, Rear Type | 7-spoke aluminum, black |
Brake disc type | Performance style, dual floating disc brakes (front), fixed disc brakes (rear) |
Brakes, caliper type | Dual front brakes with radial-mount 4-piston calipers, 32 mm, and single rear brake with axle-mount. |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | LED headlights, tail lights/stop lights, front signals and rear turn signals
|
Meter
|
Digital meters integrated into the display
|
Infotainment
Screen size |
12.3 in (312 mm) |
Infotainment system | Skyline™ OS |
Type | Full Color TFT |
Watts per channel |
125 |
Speakers | 2 |
Speaker size | Two 6.5in fairing speakers |
AM | Standard |
FM | Standard |
SD Card, Flash Drive and MP3 — via USB Connection
| Supported |
Languages / Text-to-Speech (TTS) languages | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
Hands-free mobile phone — via Bluetooth | Standard |
Voice recognition: phone functions only | Phone dependent |
Voice Recognition Languages: Tuner / Media / Navigation | Phone dependent |
Rider / passenger intercom | Standard (passenger headset sold separately), VOX is available for HD headsets |
Vehicle information screen | Standard |
USB | USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage. |
Bluetooth | Phone/Media Player, Headset |
Color Options

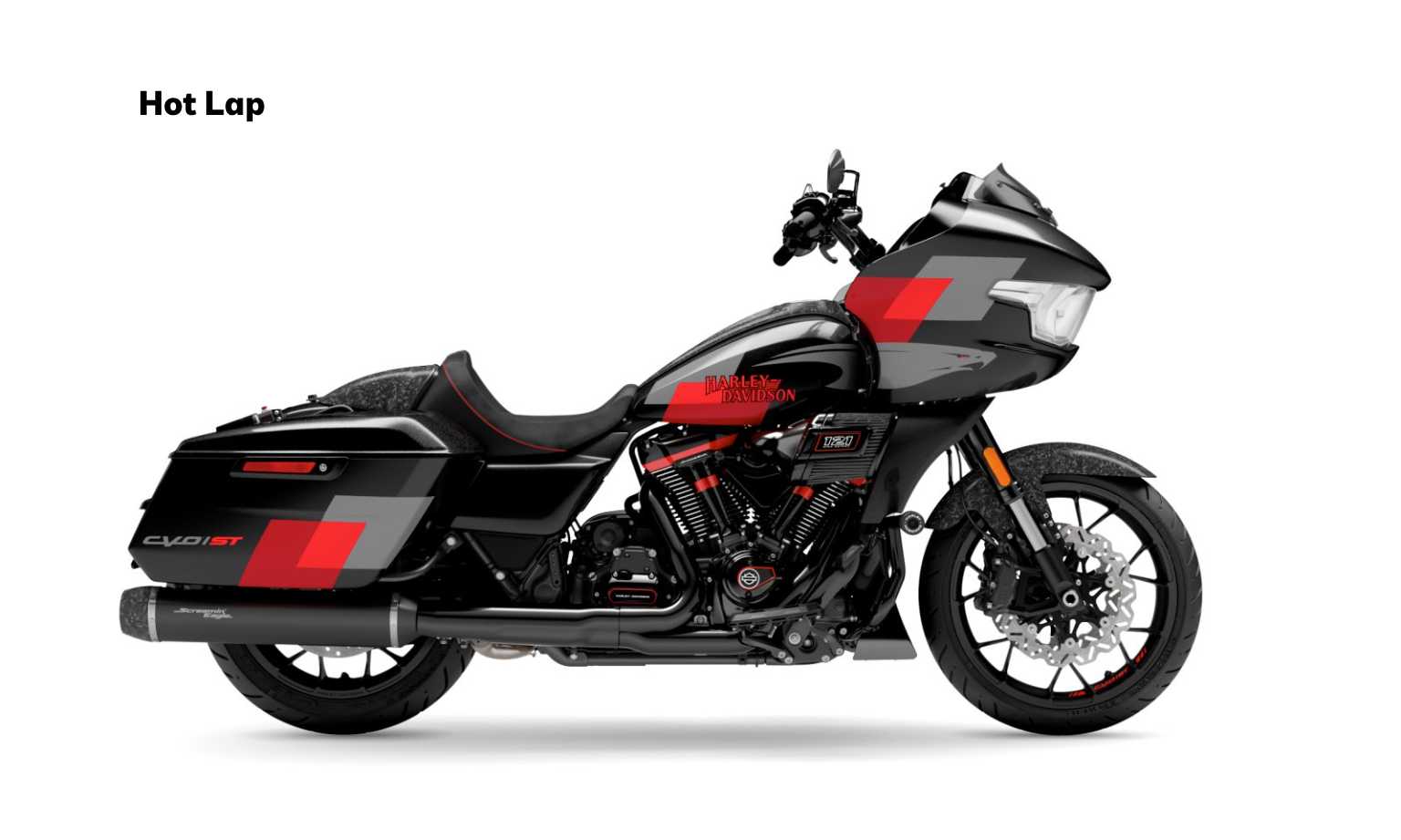

Hot Lap
| ฿3,193,000 |

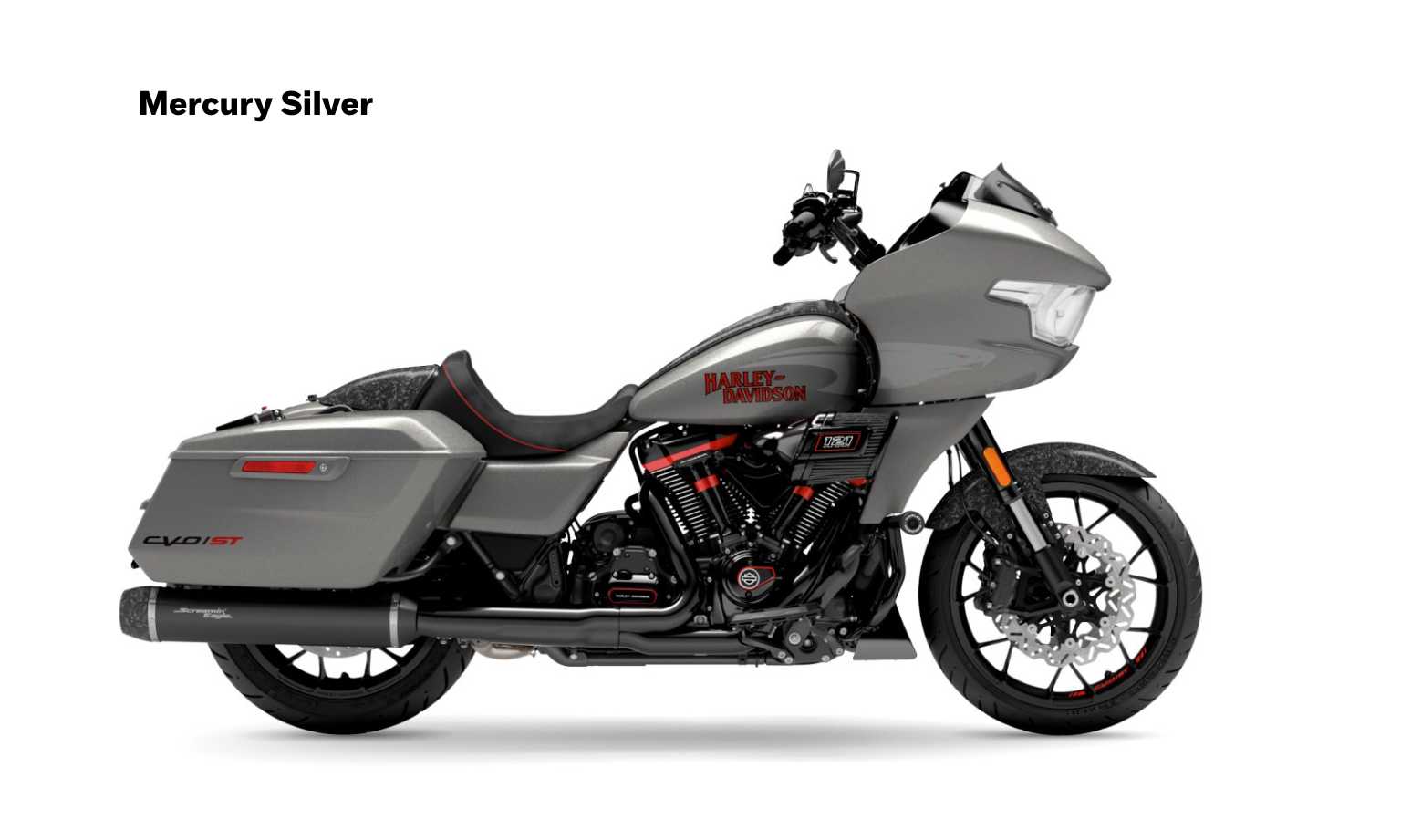

Mercury Silver
| ฿3,193,000 |

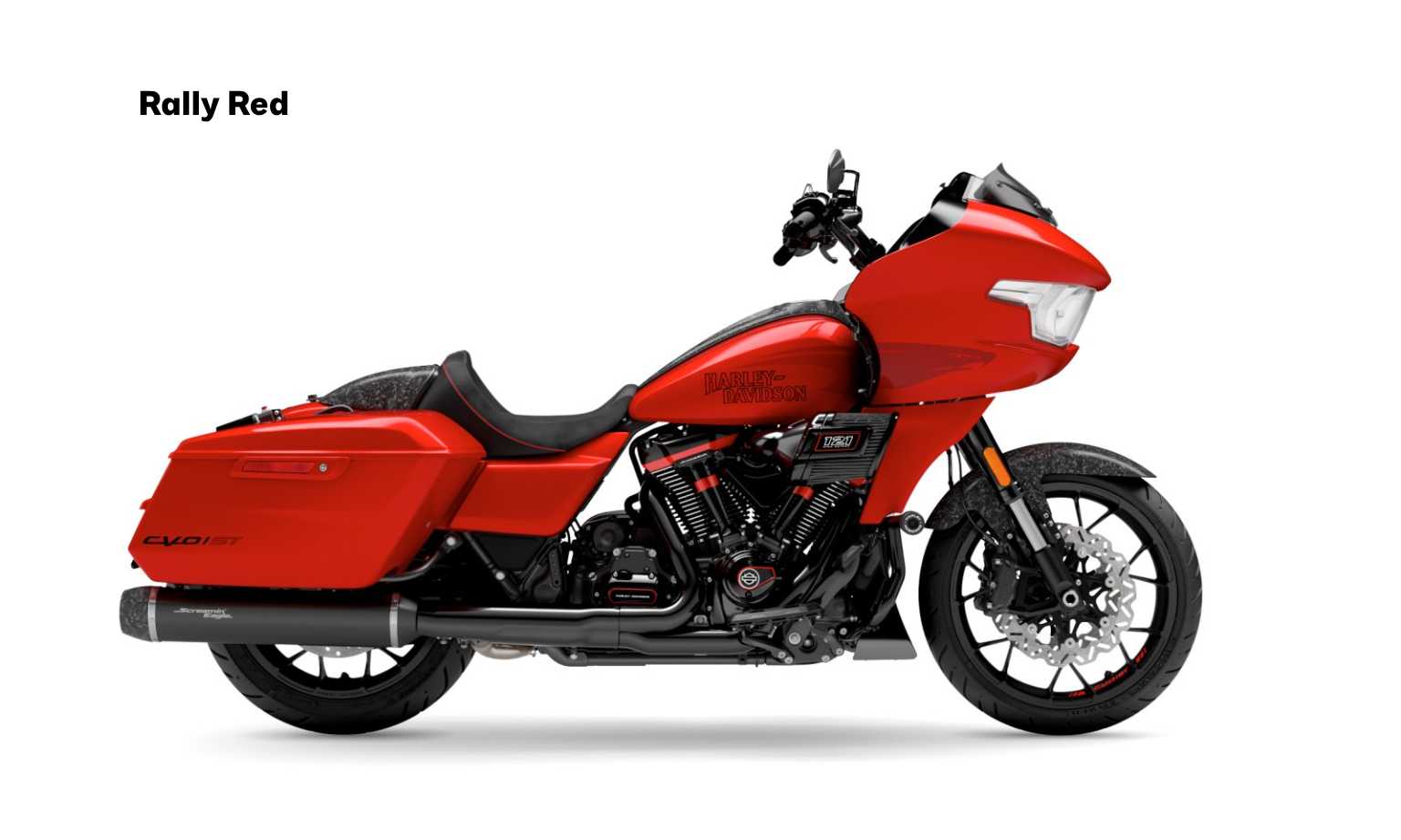

Rally Red | ฿3,193,000 |
