COLOR OPTIONS
2024 Ultra Limited®
The Harley-Davidson® Ultra Limited gives you premium touring performance with no compromises to the ride.
KEY FEATURES

MILWAUKEE-EIGHT ™ 114 ENGINE
Full-throttle torque for the power you want, which you can feel every time you twist the throttle, along with the most exciting HD sound.

Electronic cruise control system
Loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound.

Ventilated batwing fairing
The distinctive bat-wing fairing smoothes air flow and reduces head impact.

Brakes with standard ABS REFLEX ™ LINKED BREMBO ™
Helps the driver maintain control and prevents the wheels from locking up during hard braking.

Premium quality
TOUR-PAK ™ luggage storage
The Tour-Pak luggage compartment is sleek yet spacious, comfortably holding both rider and passenger helmets, as well as additional travel essentials.
DETAILED SPECS
Dimensions
Length | 2,600 mm
|
Seat Height, Laden | 740 mm. |
Rake | 26 |
Trail |
170 mm. |
Wheelbase |
1,625 mm. |
Tires, Front Specification | BW130/60B19 61H |
Tires, Rear Specification | BW180/55B18 80H |
Fuel Capacity |
22.7 liters |
Oil Capacity (w/filter) |
4.7 liters |
Weight, As Shipped |
399 kg. |
Weight, In Running Order | 415.94 kg. |
Luggage Capacity -Volume | 4.7 cu ft (0.132 m3) |
Tyre, type | Dunlop® Harley-Davidson Series, bias blackwall front and rear |
Engine
Engine |
Twin-Cooled™ Milwaukee-Eight™ 114
|
Bore |
102 mm. |
Stroke |
114 mm. |
Displacement |
1,868 cm |
Compression Ratio |
10.5:1
|
Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
Exhaust |
2-1-2 dual exhaust with tapered mufflers
|
Performance
Engine Torque Testing Method
|
EC 134/2014
|
Engine Torque | 160 Nm |
Engine Torque (rpm) |
3,000
|
Lean Angle, Right (deg.) |
32 |
Lean Angle, Left (deg.) | 32 |
Fuel Economy Testing Method |
EU 134/2014
|
Fuel Economy |
6.3 l/100 km (37 mpg)
|
Horsepower | 93 HP / 69 kW @ 5020 rpm |
Drive Train
Primary Drive | Chain, 34/46 ratio |
Gear Ratios (overall) 1st | 9.593 |
Gear Ratios (overall) 2nd | 6.65 |
Gear Ratios (overall) 3rd | 4.938 |
Gear Ratios (overall) 4th | 4 |
Gear Ratios (overall) 5th | 3.407 |
Gear Ratios (overall) 6th | 2.875 |
Chassis
Front Fork | 49 mm Dual Bending Valve |
Rear Shocks | Premium standard height hand-adjustable rear suspension
|
Wheels, Front Type | Gloss Black Slicer II
|
Wheels, Rear Type | Gloss Black Slicer II
|
Brakes, Caliper Type | 32 mm, 4-piston fixed front and rear
|
Brakes, type | Dual floating rotors (front), fixed rotor (rear)
|
Electric
Lights (as per country regulation), indicator
| LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights
|
Gauges |
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
|
Infotainment
Infotainment system |
Boom!™ Box GTS
|
Screen Size | 6.5 in |
Type | Full Color TFT |
Watts Per Channel | 25 |
Speakers | 4 |
Speaker Size | 5.25 inch standard |
Headset Specifications (if equipped) | 16-64 ohms |
AM | Standard |
FM | Standard |
Weather Band (WB) | Standard |
SD Card, Flash Drive and MP3 - via USB Connection | Supported |
Languages | English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic |
Hands-free Mobile Phone - via Bluetooth | Standard |
Voice Recognition Languages: Phone functions only | Phone dependent |
Voice Recognition Languages: Tuner/Media/Navigation | Phone dependent |
Rider/Passenger Intercom | Standard (Passenger Headset Sold Separately) |
Vehicle Information Screen (Air temperature, oil pressure and EITMS) | Standard |
Text-to-Speech (TTS) Languages | Phone dependent |
USB | USB/MTP/iPod/iPhone |
Bluetooth | Phone/Media Supported |
Color Options

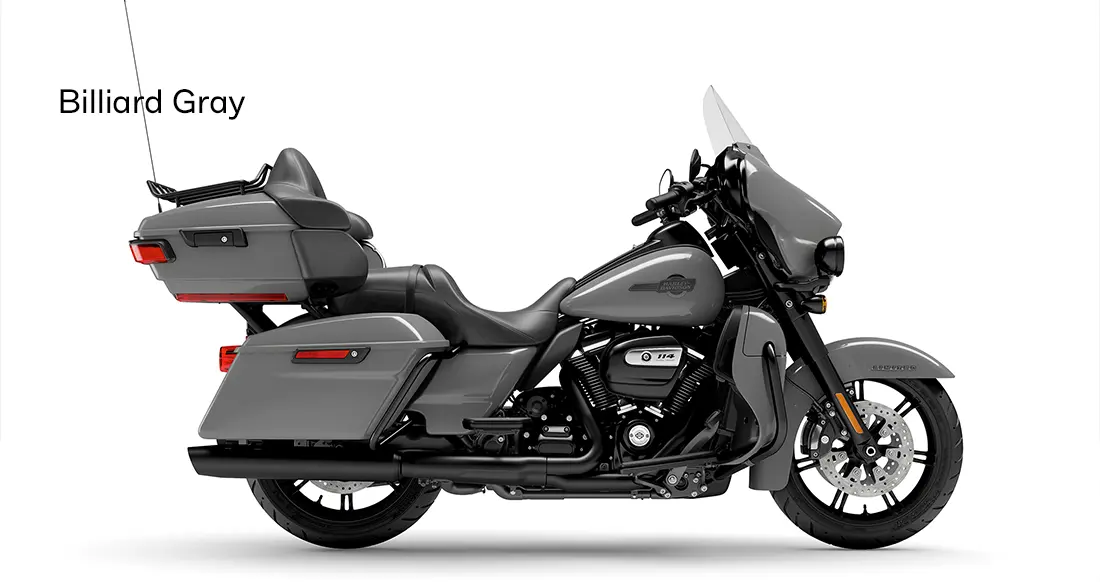

Billiard Grey
| ฿1,745,000 |

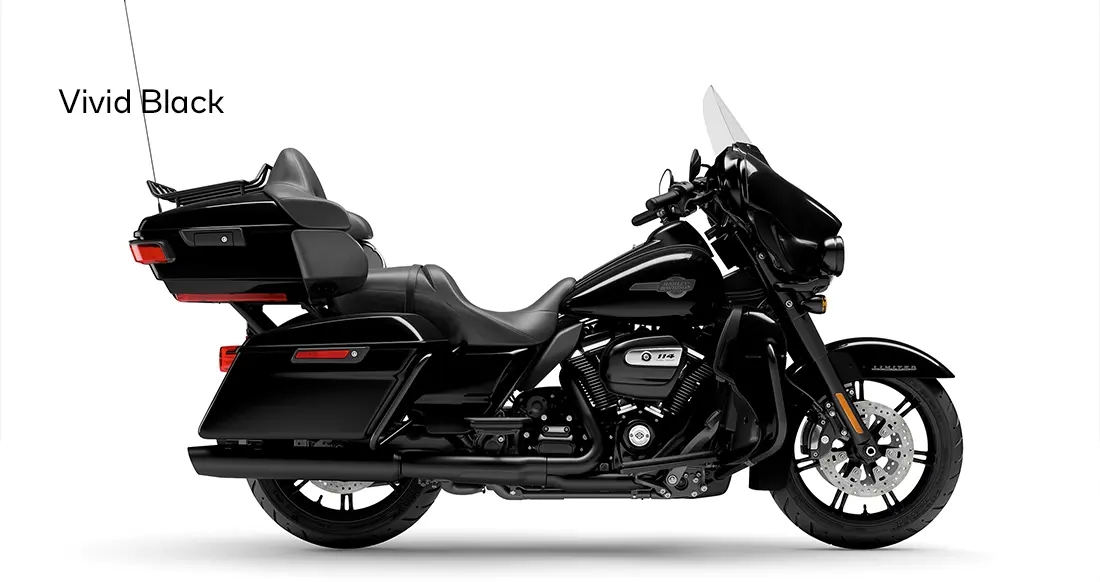

Vivid Black
| ฿1,756,000 |

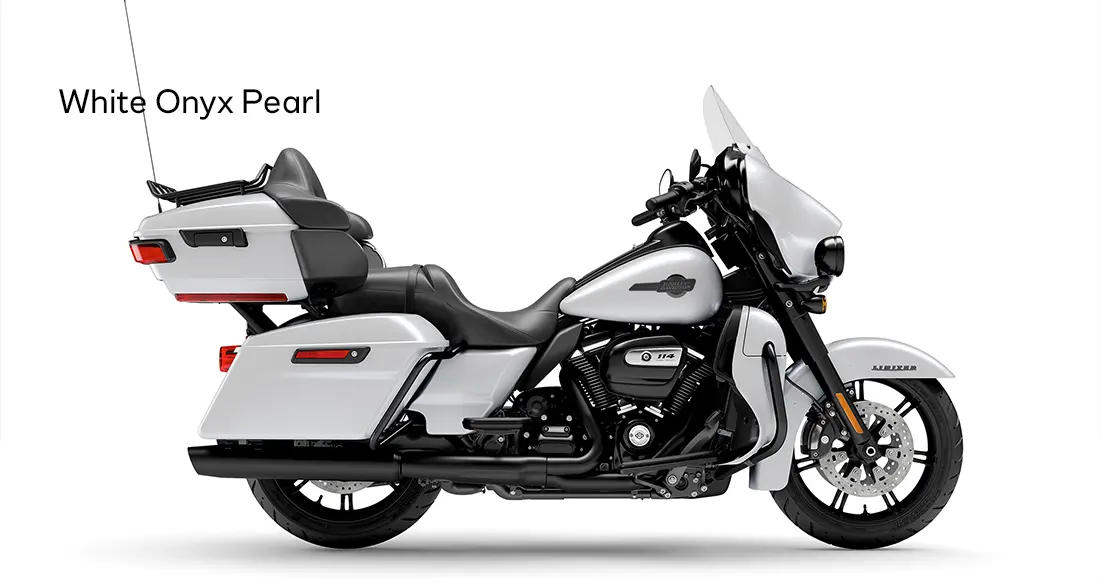

White Onyx Pearl
| ฿1,763,000 |
Sharkskin Blue
| ฿1,763,000 |

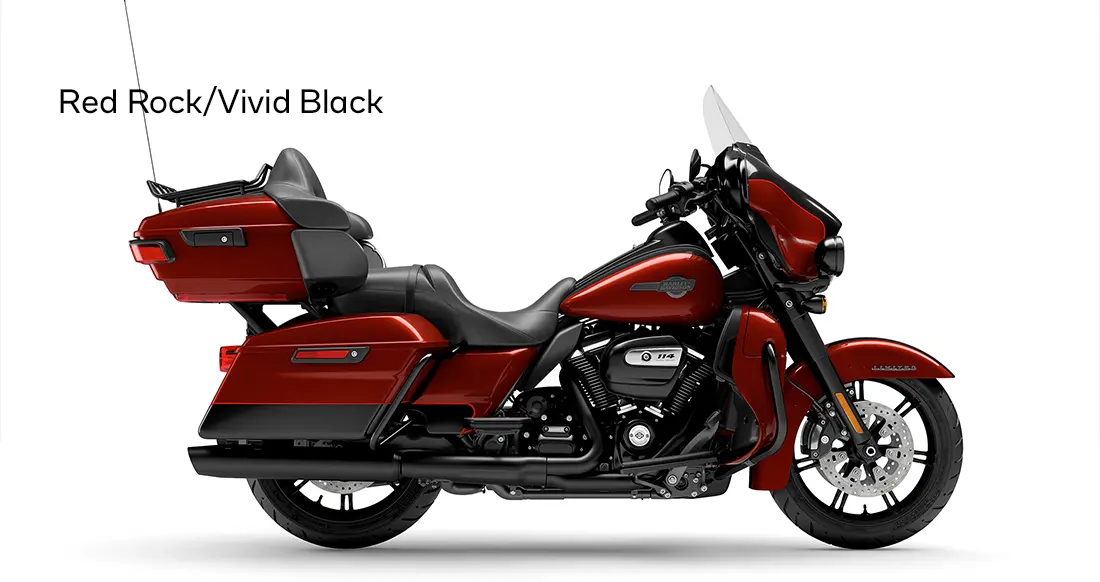

Red Rock | ฿1,782,000 |

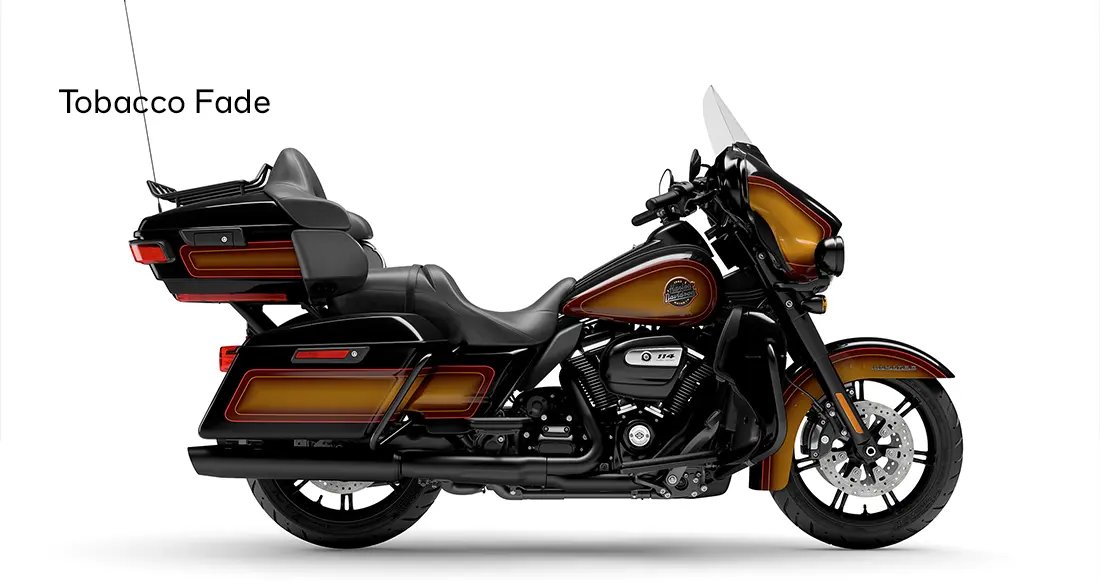

Tobacco Fade | ฿1,879,000 |
