COLOR OPTIONS
2024 Street Bob™ 114
A perfect performance base for customization, the Harley-Davidson® Street Bob 114 is a blacked-out gritty, lean, and mean bobber.
KEY FEATURES

MILWAUKEE-EIGHT ™ 114 ENGINE
Full-throttle torque for the power you want, which you can feel every time you twist the throttle, along with the most exciting HD sound.

Softail™ Frame
The newly developed frame maintains the classic Softail feel, while its strong yet lightweight design provides a responsive ride unlike any other.

ANNIHILATOR WHEELS
Six-spoke cast wheels and aggressive lines that will grab attention, complete with custom bobber accents.

Arranged in a double layer
2-seat bench with footrest and passenger seat
DETAILED SPECS
Dimensions
Length |
2,320 mm. |
Seat Height, Laden | 680 mm. |
Height from ground | 125 mm. |
Front fork offset | 30 |
Rear range | 157 mm. |
Wheelbase | 1,630 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 100/90B19,57H,BW |
Rear tire specifications | 150/80B16,77H,BW |
Fuel capacity | 13.2 liters |
Engine oil capacity (with filter) | 4.7 liters |
Shipping weight |
286 kg.
|
Ready to ride weight | 297 kg. |
Engine
Engine |
Milwaukee-Eight ™ 114
|
Cylinder size | 102 mm. |
Stroke duration |
114.3 mm. |
Engine capacity |
1,868 cc |
Compression ratio |
10.5:1
|
Fuel system |
Sequential Electronic Fuel Injection (ESPFI)
|
Exhaust |
2-in-2 shotgun catalytic converter |
Capacity
How to test engine torque |
EC 134/2014
|
Engine torque |
155 Nm
|
Engine torque (rpm) | 3250 |
Horsepower |
94 hp / 70 kW at 5020 rpm
|
Right turning angle (degrees) | 28.5 |
Left turning angle (degrees) | 28.5 |
How to test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive System
Main propulsion system
|
Chain gear ratio 34/46
|
Gear Ratios (overall) 1st |
9.311 |
Gear Ratios (overall) 2nd |
6.454
|
Gear Ratios (overall) 3rd |
4.793
|
Gear Ratios (overall) 4th |
3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
| 49mm Dual Bending valved telescopic fork with three aluminum shock clamps; Integrated dual-value spring; Shock boots
|
Rear shock |
Independent hidden piston, single shock with spring, 43 mm stroke and Cam-style preload adjustment.
|
Type of front wheel |
Black Annihilator Aluminum
|
Type of rear wheel |
Black Annihilator Aluminum
|
Types of brake calipers |
4 front pistons fixed and 2 rear pistons floating
|
Brake disc type |
Constant expansion brake disc
|
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and unique position lights, combination LED multi-functional stop/tail/turn signals, Bullet style incandescent turn signals |
Gauges
| 2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip meter and odometer and tachometer. |
Color Options

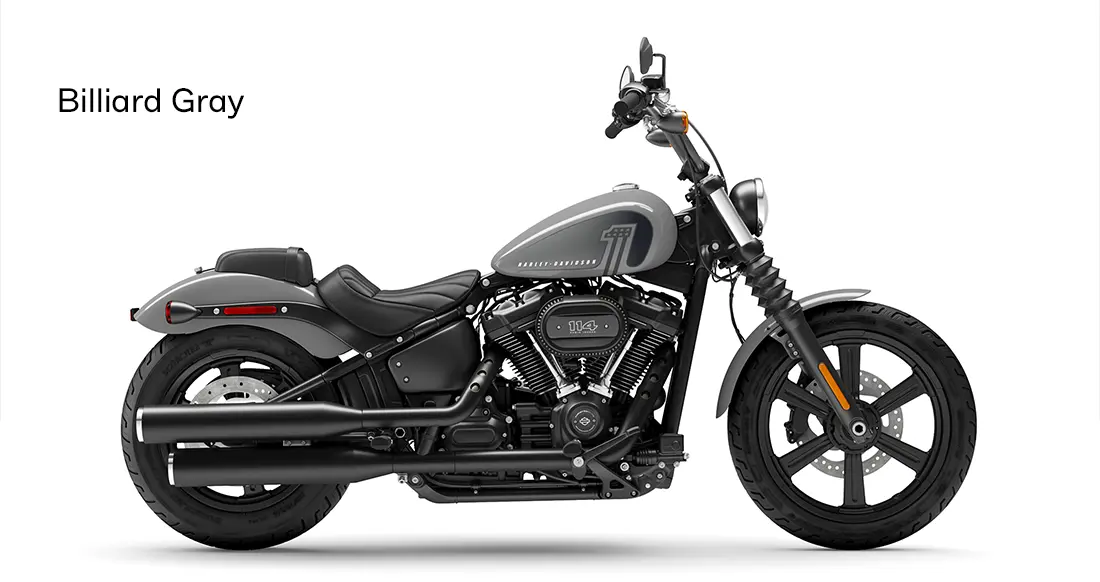

Billiard Grey
| ฿962,000 |

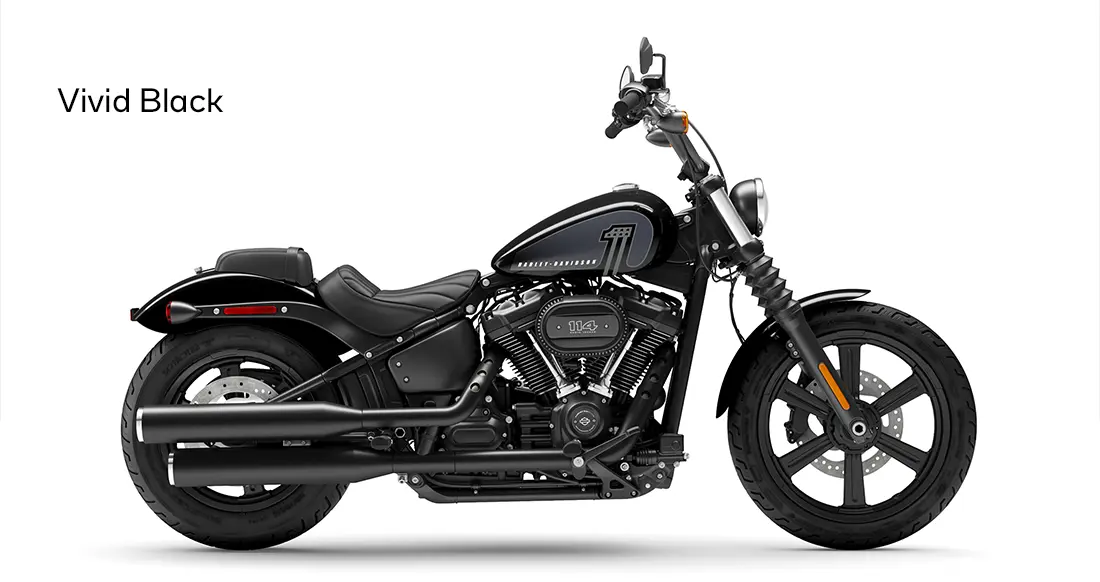

Vivid Black | ฿967,000 |
Baja Orange | ฿968,000 |
Blue Burst | ฿969,000 |
