2024
Sportster™ S
Ready to take action but not willing to bow to anyone
Starting Price ฿638,000
COLOR OPTIONS
2024 Sportster™ S
Building on a legacy born in 1957, the ultimate Harley-Davidson® Sportster S advances traits that everyone loved in its predecessors: power, performance, and way too much fun to ride.
KEY FEATURES
Revolution® Max 1250T Engine
Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding.
Rider Technology
Choose from three pre-programmed Ride Modes—Sport, Road, or Rain—or create your own custom mode with specific settings for power delivery, engine braking, and cornering.

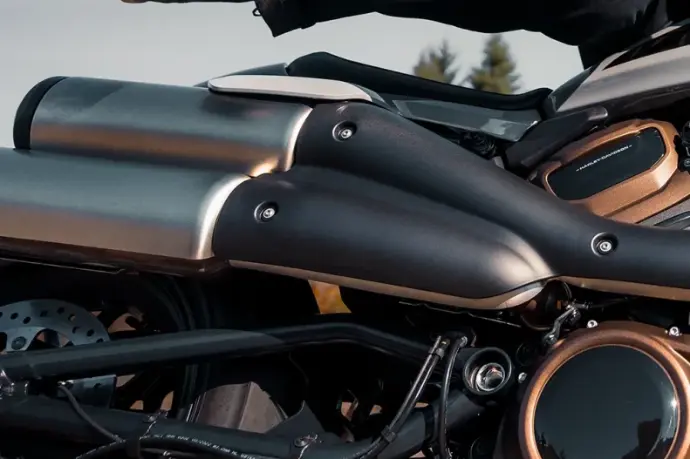

High-Mounted Exhaust
Inspired by the glory days of H-D® flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and the bike’s tail section.
Instrumentation
A Bluetooth®-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app.
Chassis
The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.
DETAILED SPECS
Dimensions
Length | 2,270 mm. |
Seat height when not loaded | 765 mm. |
Height from ground | 90 mm. |
Front fork offset | 30 |
Rear range | 148 mm. |
Wheelbase | 1,520 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series Radial Tires |
Front tire specifications | 160/70R17 73V |
Rear tire specifications | 180/70R16 77V |
Fuel capacity | 11.8 liters |
Engine oil capacity (with filter) | 4.5 liters |
Shipping weight | 221 kg. |
Ready to ride weight | 228 kg. |
Engine
Engine | Revolution ™ Max 1250T |
Cylinder size | 105 mm. |
Stroke duration | 72.3 mm. |
Engine capacity | 1,252 cc |
Compression ratio | 12.0:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | Type 2-in-1-out-2, catalytic converter in header |
Capacity
Test engine torque | EC 134/2014 |
Engine torque | 125 Nm |
Engine torque (rpm) | 6000 |
Horsepower | 121 hp / 90 kW at 7500 rpm |
Right turning angle (degrees) | 34 |
Left turning angle (degrees) | 34 |
Test fuel economy | EU 134/2014 |
Fuel economy | 5.1 liters/100 km. |
Drive System
Main propulsion system
| Gear ratio 49/89 |
Gear Ratios (overall) 1st | 12.21 |
Gear Ratios (overall) 2nd | 9.022 |
Gear Ratios (overall) 3rd | 6.994 |
Gear Ratios (overall) 4th | 5.641 |
Gear Ratios (overall) 5th | 4.731 |
Gear Ratios (overall) 6th | 4.131 |
Chassis
Front shock
| 43mm inverted forks with adjustable compression, rebound and spring preload, triple clamp aluminum fork set |
Rear shock | Single piggyback shock mounted on linkage with hydraulic spring preload and compression adjustment
|
Type of front wheel | Satin Black Aluminum |
Type of rear wheel | Satin Black Aluminum |
Types of brake calipers |
Front wheel: Single shock, 4-piston caliper, mounted on axle, Rear wheel: Single-piston floating caliper |
Brake disc type |
Front: Single floating disc brake, mounted on drum, Rear: Constant expansion push disc brake |
Electric
Lights (as per country regulation), indicator
| All LED headlights, low and high beams with unique positioning, all LED taillights, Bullet-shaped LED turn signals |
Gauges
| 4" viewing area TFT display with electronic speedometer, gear, odometer, fuel level, clock, trip, ambient temperature, low temperature warning, side stand up warning, lean warning, cruise control, range indicator and tachometer. Bluetooth support - pair with your phone for phone calls, music and navigation (HD app only). |
Infotainment system
Screen size
| 102 mm. |
Type
| TFT color |
Headset specifications (if any) |
Bluetooth |
Language | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (Default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
Hands-free mobile phone - via Bluetooth | standard |
Speech recognition system language: Phone function only | Usage on the phone |
Speech recognition system language: Tuner/Media/Navigation | Usage on the phone |
Driver/Passenger Intercom | For use with headphones only |
Motorcycle information screen (air temperature, oil pressure and EITMS) | TPMS, Engine temperature, Battery voltage, Ambient air temperature |
Text-to-speech (TTS) languages | Usage on the phone |
USB | Charging and updating devices, USB-C, 5V, 3A |
Bluetooth | Support Phone/Media |
Color Options

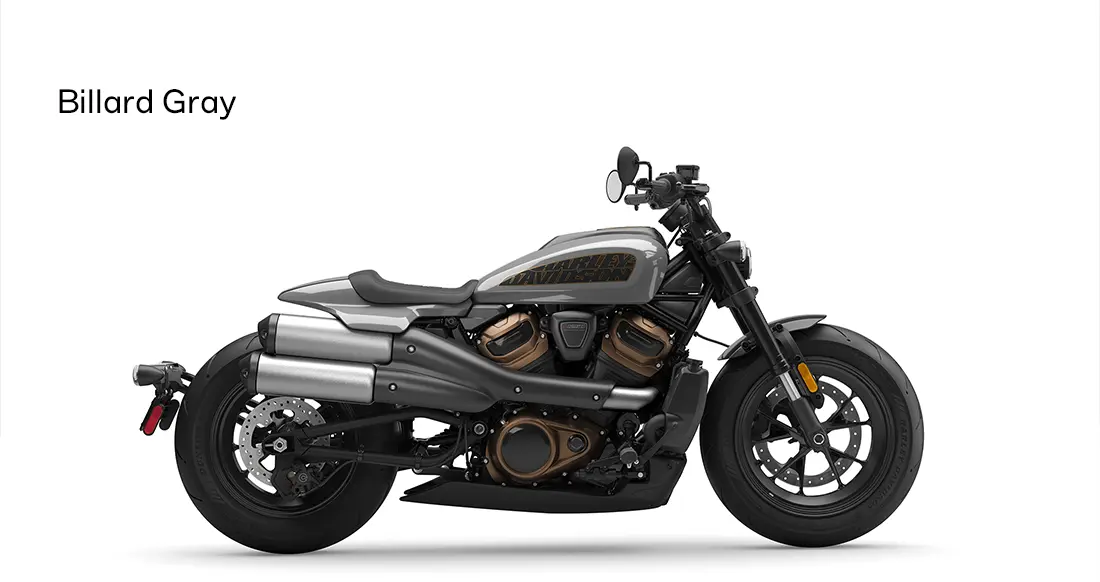

| Billiard Grey
| ฿638,000 |

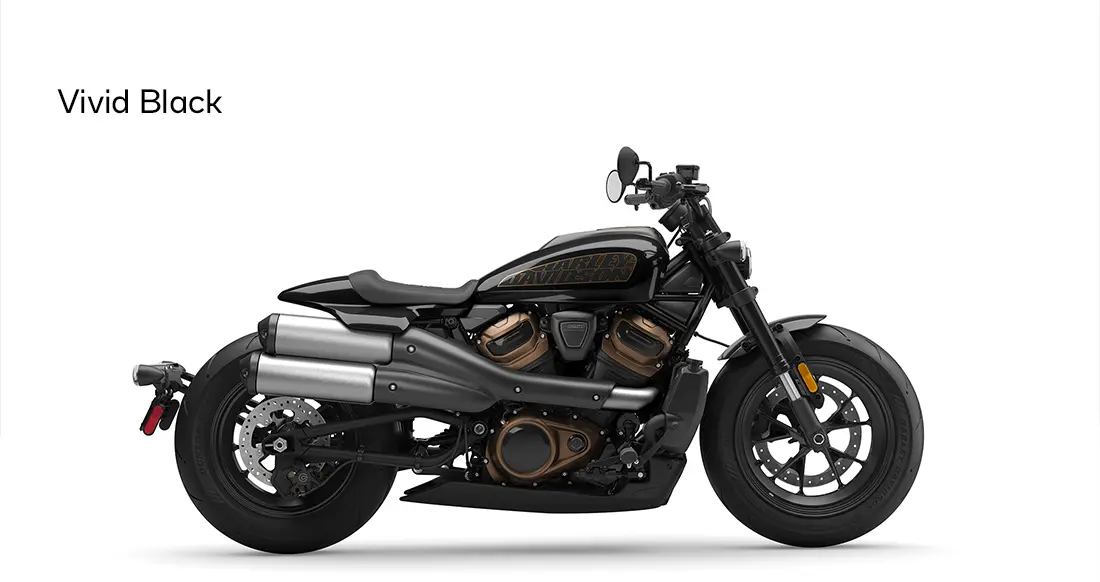

| Vivid Black | ฿641,000 |
Red Rock | ฿643,000 |
Sharkskin Blue | ฿644,000 |
