2024 Softail™ Standard
A raw, stripped-down, bobber-style bike, the Harley-Davidson® Softail Standard is an ideal blank canvas for customization.
KEY FEATURES

Milwaukee-Eight™
107 Engine
The V-Twin engine provides a smooth yet powerful ride with sharp torque response and an exciting Harley-Davidson sound system that no one knows.

Softail™ Frame
The re-engineered frame retains the classic Softail look, but its lightweight, rigid design delivers a responsive ride.The kind you've never experienced before

Adjustable single rear shock
The rear suspension is a single shock that is easily adjustable, allowing for powerful cornering while maintaining the hardtail look.

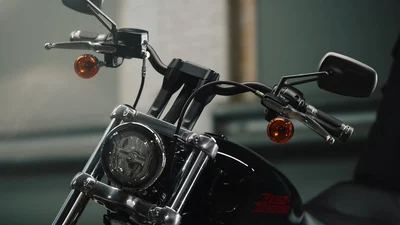

UniqueDAYMAKER ™
headlight system
Powerful white light extends throughout the night and is soothing to the eyes.
DETAILED SPECS
Dimensions
Length |
2,320 mm. |
Seat Height, Laden | 680 mm. |
Height from ground | 125 mm. |
Front fork offset | 30 |
Rear range | 157 mm. |
Wheelbase | 1,630 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 100/90B19,57H,BW |
Rear tire specifications | 150/80B16,77H,BW |
Fuel capacity | 13.2 liters |
Engine oil capacity (with filter) | 4.7 liters |
Shipping weight | 291 kg. |
Ready to ride weight | 297 kg. |
Engine
Engine |
Milwaukee-Eight ™ 107
|
Cylinder size | 100 mm. |
Stroke duration | 111 mm. |
Engine capacity | 1,745 cc |
Compression ratio | 10.0:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | 2-in-2 shotgun catalytic converter |
Capacity
How to test engine torque |
EC 134/2014
|
Engine torque | 144 Nm |
Engine torque (rpm) | 3250 |
Horsepower | 86 hp / 64 kW at 5020 rpm |
Right turning angle (degrees) | 28.5 |
Left turning angle (degrees) | 28.5 |
How to test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive System
Main propulsion system
|
Chain gear ratio 34/46
|
Gear Ratios (overall) 1st |
9.311 |
Gear Ratios (overall) 2nd |
6.454
|
Gear Ratios (overall) 3rd |
4.793
|
Gear Ratios (overall) 4th |
3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
|
49mm Dual Bending valve telescopic fork with three aluminum shock clamps; integrated dual-value spring |
Rear shock | Independent hidden piston, single shock with spring, 43 mm stroke and Cam-style preload adjustment. |
Type of front wheel | Silver Annihilator Aluminum |
Type of rear wheel | Silver Annihilator Aluminum |
Types of brake calipers | 4 front pistons fixed and 2 rear pistons floating |
Brake disc type | Constant expansion brake disc |
Electric
Lights (as per country regulation), indicator
|
All LED lights, low beam, high beam and unique position lights, combination LED stop/tail/turn signals, bullet incandescent turn signals, combination LED stop/tail/turn signals
|
Gauges
|
2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip meter and odometer and tachometer.
|
Color Options

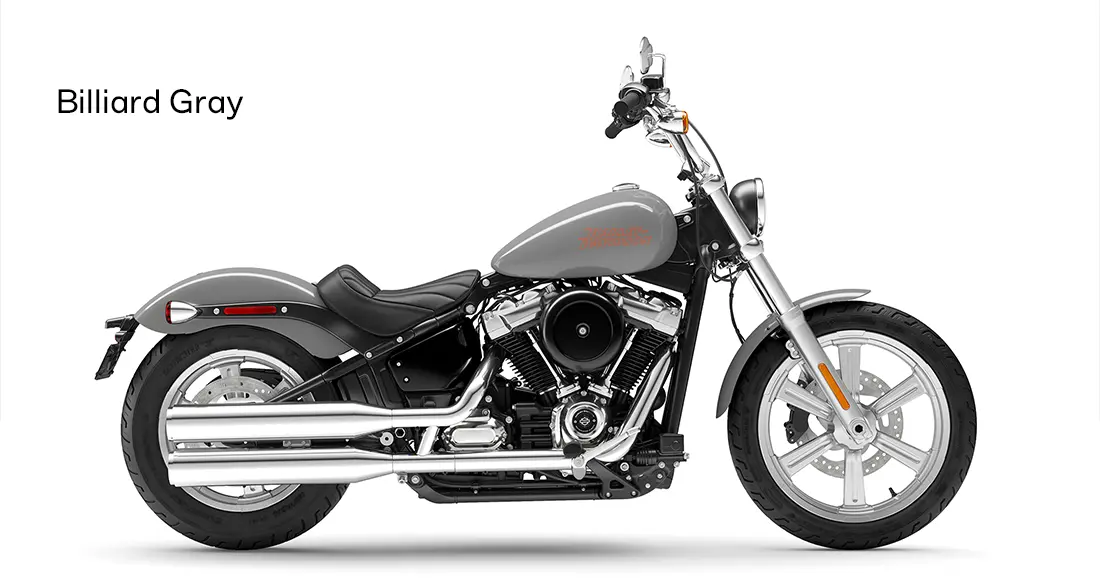

Billiard Grey
| ฿874,000 |

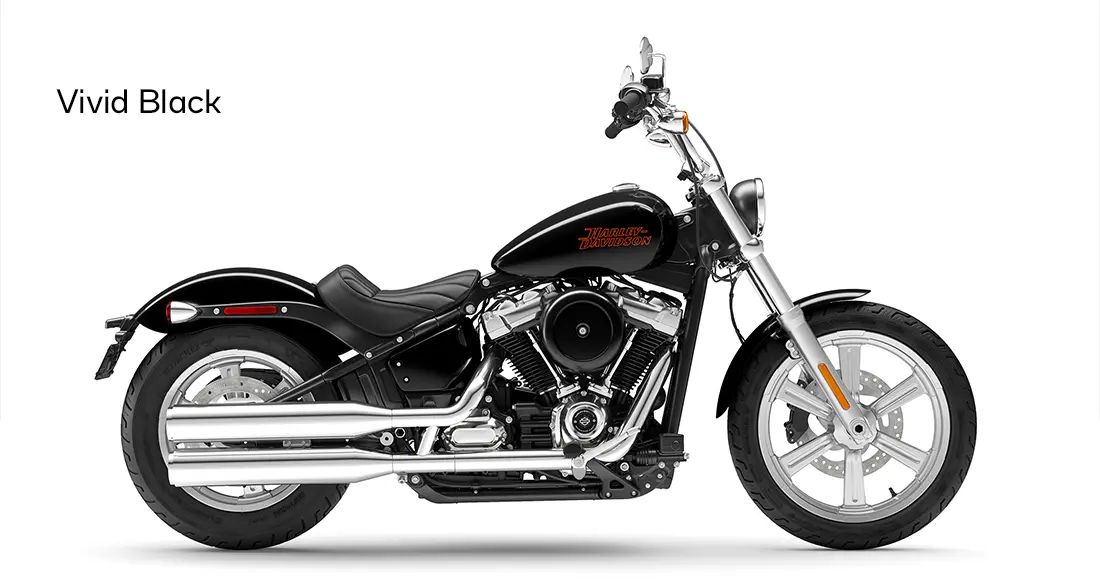

Vivid Black | ฿879,000 |
