2024
Pan America™ 1250 Special
See what you've never seen.
Starting Price ฿940,000
COLOR OPTIONS
2024 Pan America™ 1250 Special
Designed to meet the demands of both on- and off-road Adventure Touring, the Harley-Davidson® Pan America 1250 Special is engineered to explore and endure, no matter what turns you take.
KEY FEATURES

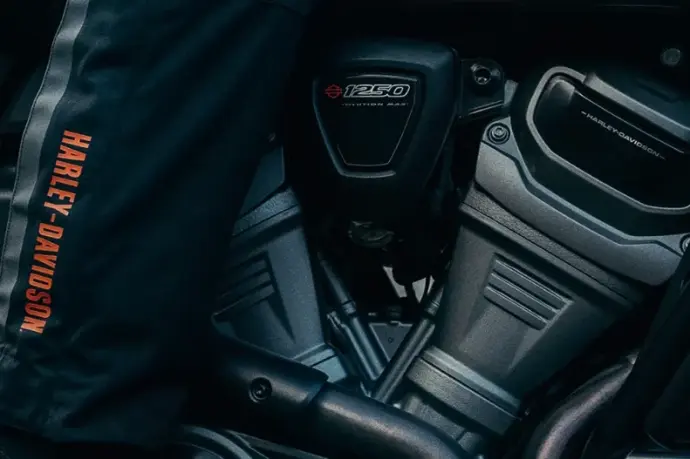

Revolution® Max Engine
With 150 horsepower and a flexible powerband, the Revolution Max powertrain maximizes your riding experience.

Adaptive Suspension
Adaptive Ride Height allows you to lower the seat height when stopped, and it also maintains a constant, optimum suspension sag by continuously adjusting preload.

Ride Modes
Choose what best suits your riding. Select from five pre-programmed Ride Modes— Sport, Road, Rain, Off-Road, or Off-Road Plus—or create your own custom mode.
DETAILED SPECS
Dimensions
Length | 2,270 mm.
|
Seat height when not loaded |
Low 850 mm., High 875 mm. |
Height from ground | 175 mm. |
Front fork offset |
25 |
Rear range |
108 mm. |
Wheelbase |
1,585 mm. |
Types of tires |
Michelin ™ Scorcher Radial Tire “Adventure” |
Front tire specifications |
120/70R19 60V |
Rear tire specifications |
170/60R17 72V |
Fuel capacity |
21.2 liters |
Engine oil capacity (with filter) |
4.5 liters |
Shipping weight | 242 kg. |
Ready to ride weight | 258 kg. |
Engine
Engine | Revolution ™ Max 1250 |
Cylinder size |
105 mm. |
Stroke duration |
72.3 mm. |
Engine capacity | 1,252 cc |
Fuel system |
Sequential Electronic Fuel Injection (ESPFI) |
Exhaust |
2-into-1-outto-1 exhaust pipe |
Capacity
Test engine torque |
EC 134/2014 |
Engine torque 3 | 128 Nm |
Engine torque (rpm) | 6750 |
Horsepower | 150 hp / 112 kW at 8750 rpm |
Right turning angle (degrees) | 42 |
Left turning angle (degrees) | 42 |
Test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive Train
Primary Drive |
Gear ratio 49/89 |
Gear Ratios (overall) 1st | 13.11 |
Gear Ratios (overall) 2nd | 9.687 |
Gear Ratios (overall) 3rd | 7.509 |
Gear Ratios (overall) 4th | 6.057 |
Gear Ratios (overall) 5th |
5.08 |
Gear Ratios (overall) 6th | 4.436 |
Chassis
Front Shock | 47mm inverted forks with electronically adjustable semi-active damping, triple clamp aluminum fork set |
Rear Shock | Single shock mounted on the linkage with electronic preload control and semi-active compression and rebound damping control. |
Selectable wheel style types | Annodized aluminum tubeless laced |
Type of front wheel | Satin Black Aluminum |
Type of rear wheel | Satin Black Aluminum |
Types of brake calipers | Front wheel: Single shock, 4-piston caliper, mounted on axle, Rear wheel: Single-piston floating caliper |
Brake disc type | Front: Dual floating disc brakes mounted on drums, |
Electric
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights | Daymaker Adaptive LED headlight with 6-segment LED light area, all-LED tail/stop lamp with unique taillight system, Bullet LED turn signals |
Meter
| 6.8" viewing area TFT display with speedometer, gear, odometer, fuel level, clock, odometer, ambient temperature, low temperature alarm, side stand unstorage alarm, tilt alarm, cruise control, range and RPM. Pair with phone for easy access to calls, music, navigation (HD app only).
|
Infotainment
Screen size | 173 mm. |
Type |
TFT color display with touch screen
|
Headset specifications (if any)
| Bluetooth |
Languages / Text-to-Speech (TTS) languages | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
Hands-free mobile phone — via Bluetooth | Standard |
Speech recognition system language: Phone function only
|
Usage on the phone
|
Speech recognition system language: Tuner/Media/Navigation
| Usage on the phone |
Rider / passenger intercom |
For use with headphones only
|
Motorcycle information screen (air temperature, oil pressure and EITMS)
|
TPMS, Engine temperature, Battery voltage, Ambient air temperature
|
USB |
Charging and updating devices, USB-C, 5V, 3A
|
Bluetooth | Support Phone/Media |
Color Options

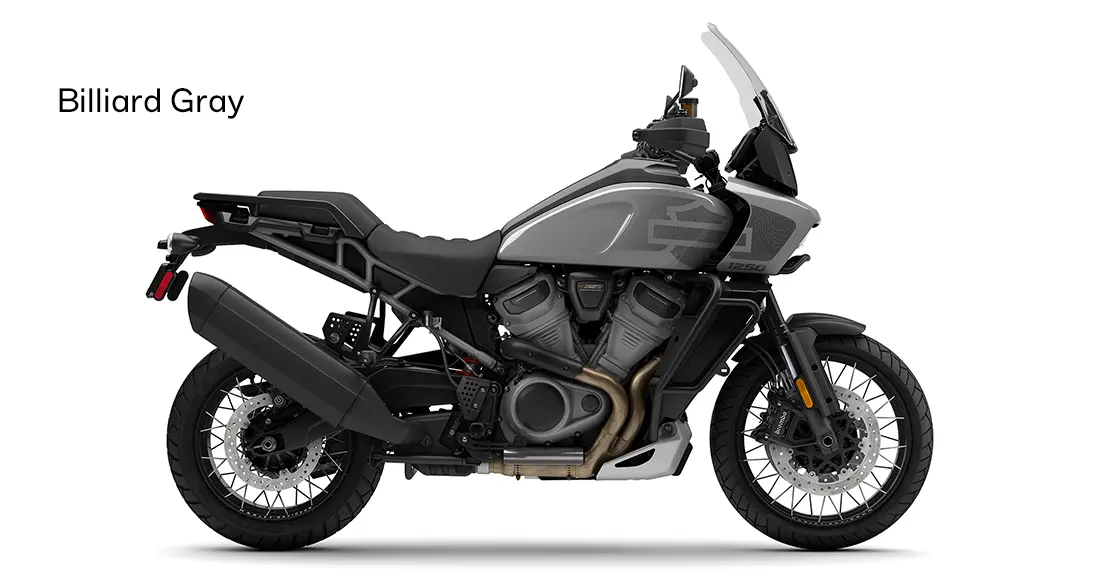

Billiard Grey w/Laced Wheels
| ฿940,000 |

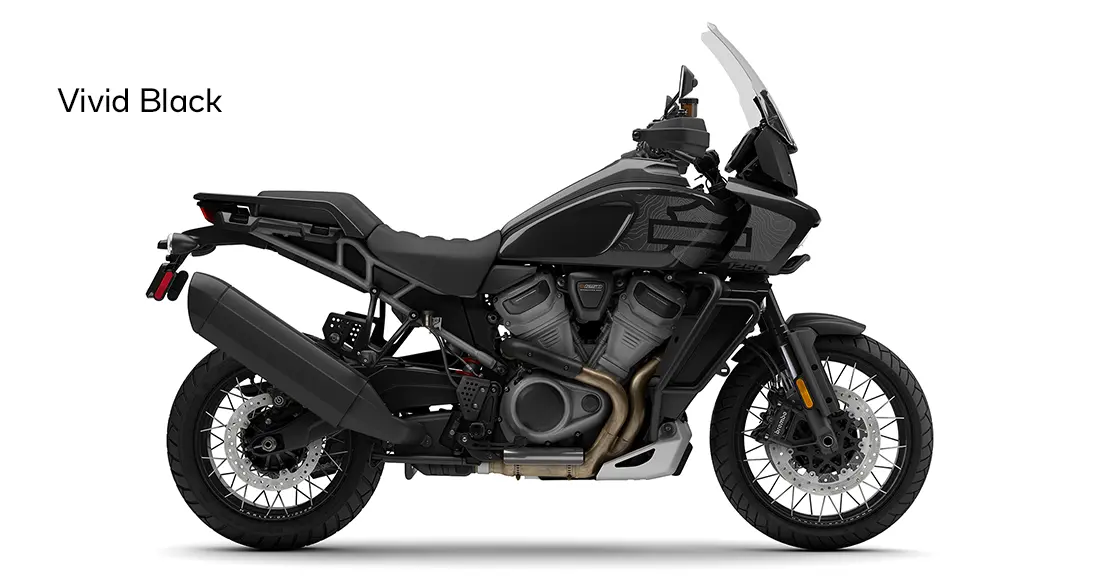

Vivid Black w/Laced Wheels
| ฿943,000 |

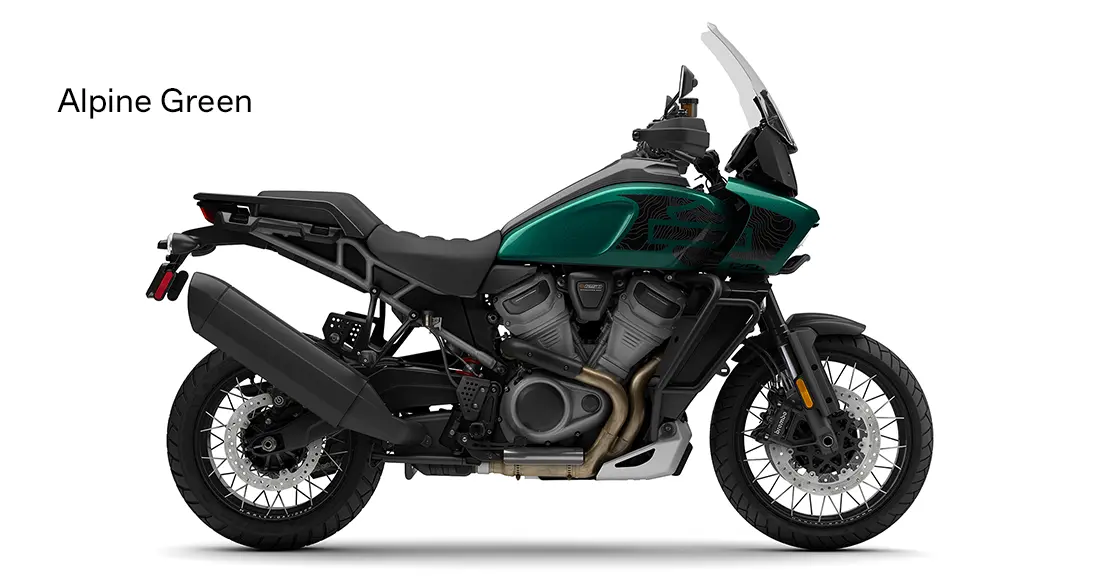

Alpine Green w/Laced Wheels | ฿945,000 |

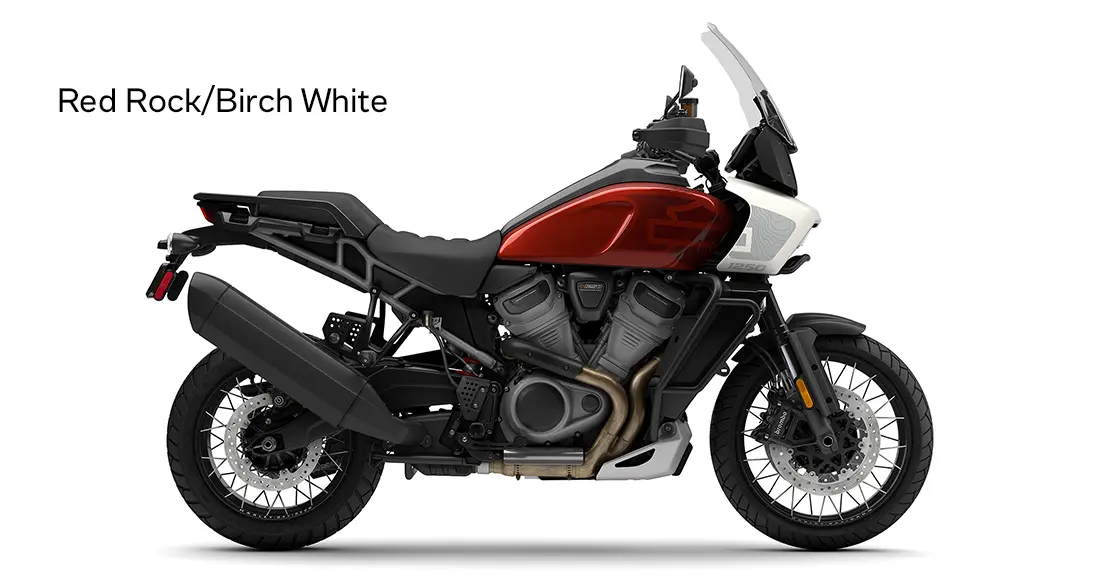

Red Rock / Birch White w/Laced Wheels | ฿946,000 |
