2024 Nightster™
Designed to inspire riders of all skill levels, the Harley-Davidson® Nightster introduces a new narrative in the Sportster® story.
KEY FEATURES

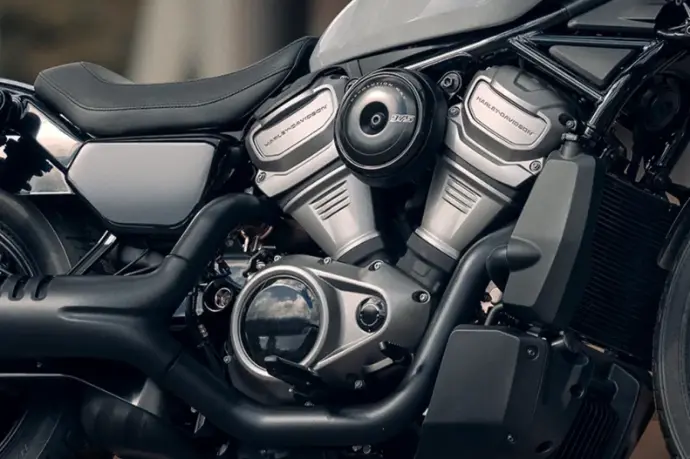

Revolution® Max 975 Engine
A liquid-cooled V-Twin tuned to deliver more torque at low RPM, with strong acceleration from the start and robust power through the mid-range.
Exposed Dual Rear Shocks
Modeled after a previous Sportster chassis, the Nightster features exposed dual rear shocks that give the bike sharp handling and provide a critical style line.
Frame
The engine is a stressed member of the chassis, significantly reducing overall weight and improving stiffness compared to a traditional chassis.
DETAILED SPECS
Dimensions
Length | 2,250 mm. |
Seat height when not loaded | 705 mm. |
Height from ground | 110 mm. |
Front fork offset | 30 |
Rear range | 137 mm. |
Wheelbase | 1,545 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series Black Sidewall Bias Tires |
Front tire specifications | 100/90-19 57H |
Rear tire specifications | 150/80B16 77H |
Fuel capacity | 11.7 liters |
Engine oil capacity (with filter) | 4.5 liters |
Shipping weight | 211 kg. |
Ready to ride weight | 221 kg. |
Engine
Engine | Revolution ™ Max 975T |
Cylinder size | 97 mm. |
Stroke duration | 66 mm. |
Engine capacity | 975 cc |
Compression ratio | 12:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | 2-into-1 exhaust pipe |
Capacity
How to test engine torque | EC 134/2014
|
Engine torque | 95 Nm |
Engine torque (rpm) | 5750 |
Horsepower | 89 hp / 66 kW at 7500 rpm |
Right turning angle (degrees) | 32 |
Left turning angle (degrees) | 32 |
How to test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive System
Main propulsion system
| Gear ratio 49/89 |
Gear Ratios (overall) 1st | 12.21 |
Gear Ratios (overall) 2nd | 9.022 |
Gear Ratios (overall) 3rd | 6.994 |
Gear Ratios (overall) 4th | 5.641 |
Gear Ratios (overall) 5th | 4.731 |
Gear Ratios (overall) 6th | 4.131 |
Chassis
Front shock
| SHOWA ™ 41mm Dual Bending Valve Standard Shock Triple Clamp Aluminum Fork Set |
Rear shock | The rear suspension is a twin external shock absorber with direct-link emulsion technology (no link) with coil springs and threaded collars for preload adjustment. |
Type of front wheel | Satin Black Aluminum |
Type of rear wheel | Satin Black Aluminum |
Types of brake calipers | Front wheel: 4-piston caliper, mounted on axle, Rear wheel: Single-piston floating caliper |
Brake disc type | Front: Single floating disc brake, center mounted, Rear: Constant expansion push disc brake |
Electric
Lights (as per country regulation), indicator
| All LED headlights, low and high beams with unique positioning, all LED taillights, Bullet-shaped LED turn signals
|
Gauges
| 4-inch round analog meter display with speedometer, left/right turn signals, traction control indicator, coolant temperature warning, ABS warning, fog lamp indicator, battery voltage warning, high beam indicator, low fuel indicator, rear ABS disabled indicator, failure indicator warning, neutral indicator, low tire pressure warning, check engine light, oil pressure warning, service indicator |
Infotainment system
Screen size
| 4” analog instrument panel with separate LCD display (102 mm) |
Type
|
Analog display
|
Language | English (default) |
Color Options

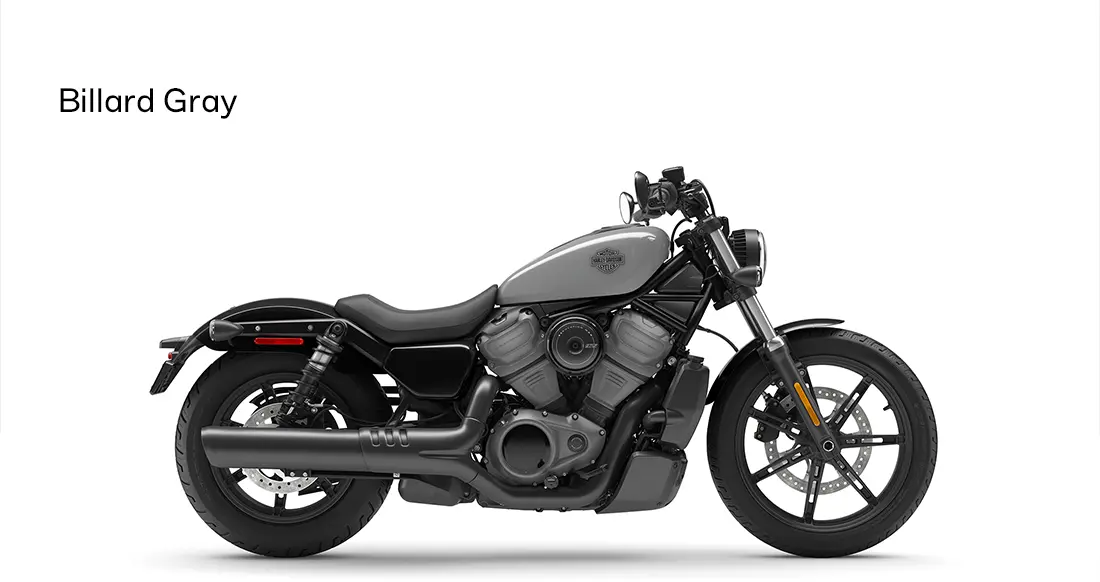

| Billiard Grey
| ฿513,000 |

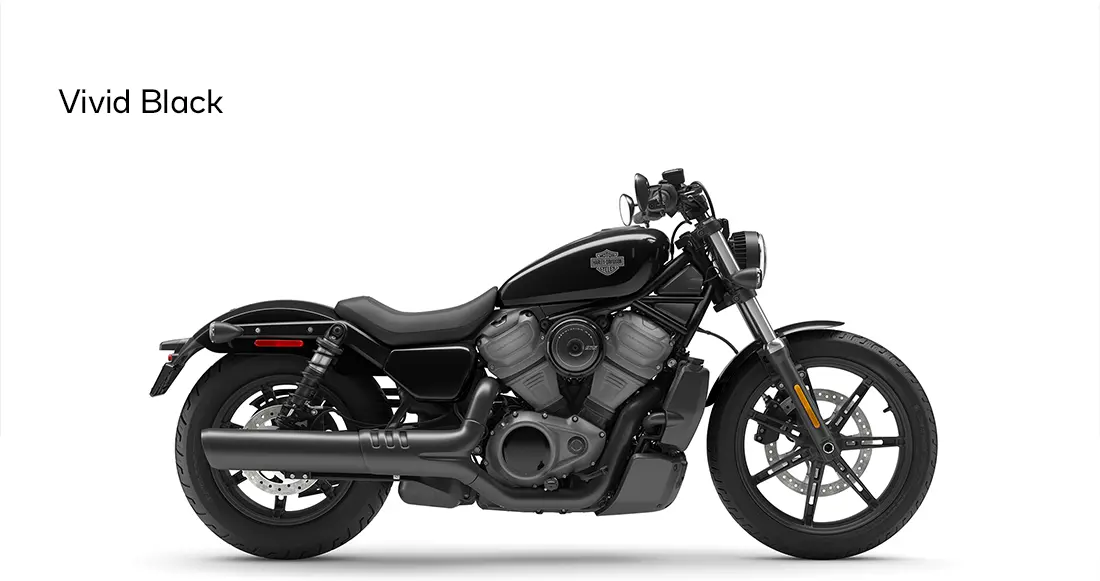

| Vivid Black | ฿516,000 |
