COLOR OPTIONS

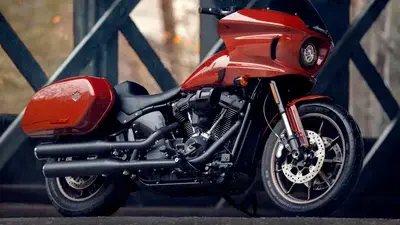

2024 Low Rider™ ST
The Harley-Davidson® Low Rider ST is a sport-touring bike for those who appreciate bold styling
outrageous performance, and cannot wait until the weekend to escape.
KEY FEATURES

MILWAUKEE-EIGHT ™ 117 ENGINE
The high-performance, oil- and air-cooled engine delivers the ultimate in torque and displacement in a standard Harley-Davidson factory-installed engine and transmission.

Top performance

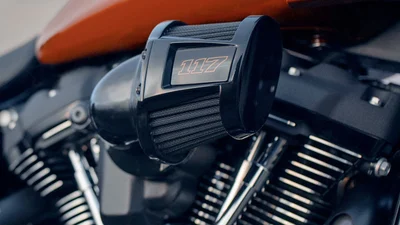

A finely tuned Heavy Breather intake system with high-flow exhaust system maximizes engine performance.

Sport touring profile

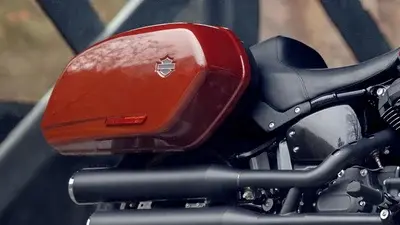

Efficient riding position with full rear suspension, high handlebars and compact, removable side bags.

Deep recessed single seat
Secures the rider's position during aggressive acceleration and cornering.

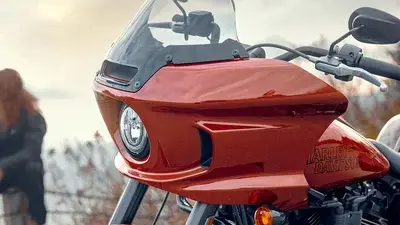

Frame mounted fairing
A legendary design that has now been tweaked to fit the Low Rider ST perfectly.
DETAILED SPECS
Dimensions
Length | 2,365 mm.
|
Seat Height, Laden |
720 mm.
|
Height from ground |
150 mm.
|
Front fork offset | 28 |
Rear range |
145 mm.
|
Wheelbase |
1,615 mm.
|
Types of tires |
Michelin ™ Scorcher "31" front and rear tires |
Front tire specifications |
110/90B19,62H,BW
|
Rear tire specifications |
180/70B16,77H,BW
|
Fuel capacity |
18.9 liters
|
Engine oil capacity (with filter) |
4.7 liters
|
Shipping weight | 315 kg. |
Ready to ride weight |
327 kg.
|
Luggage capacity - volume | 0.05 m. 3 |
Engine
Engine | Milwaukee-Eight ™ 117
|
Cylinder size |
103.5 mm. |
Stroke duration | 114.3 mm. |
Engine capacity | 1,923 cc |
Compression ratio |
10.2:1
|
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust |
2-in-2 shotgun catalytic converter
|
Capacity
How to test engine torque |
EC 134/2014
|
Engine torque |
168 Nm
|
Engine torque (rpm) |
3500
|
Horsepower |
105 hp / 78 kW at 5020 rpm
|
Right turning angle (degrees) |
31.3
|
Left turning angle (degrees) | 31.3 |
How to test fuel economy |
EU 134/2014
|
Fuel economy |
5.6 liters/100 km.
|
Drive System
Main propulsion system
|
Chain gear ratio 34/46
|
Gear Ratios (overall) 1st |
9.311 |
Gear Ratios (overall) 2nd |
6.454
|
Gear Ratios (overall) 3rd |
4.793
|
Gear Ratios (overall) 4th |
3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
|
43mm inverted cartridge single shock with three aluminum shock clamps; integrated three-value spring
|
Rear shock |
Independent hidden piston, single shock with spring, 56 mm stroke and hydraulic preload adjustment.
|
Type of front wheel |
Dark bronze radial aluminum wheels
|
Type of rear wheel |
Dark bronze radial aluminum wheels
|
Types of brake calipers |
4 front pistons fixed and 2 rear pistons floating
|
Brake disc type |
7-spoke black floating front and rear brake discs
|
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and unique position lights, combination LED multi-functional stop/tail/turn signals, Bullet style incandescent turn signals |
Gauges
| 2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip meter and odometer and tachometer. |
Color Options

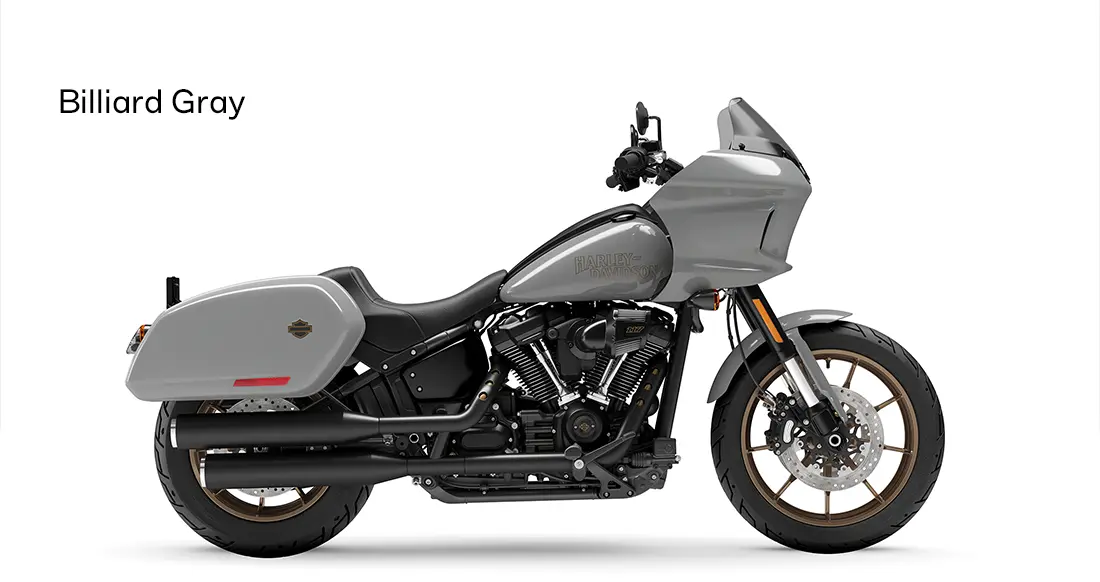

Billiard Grey
| ฿1,260,000 |

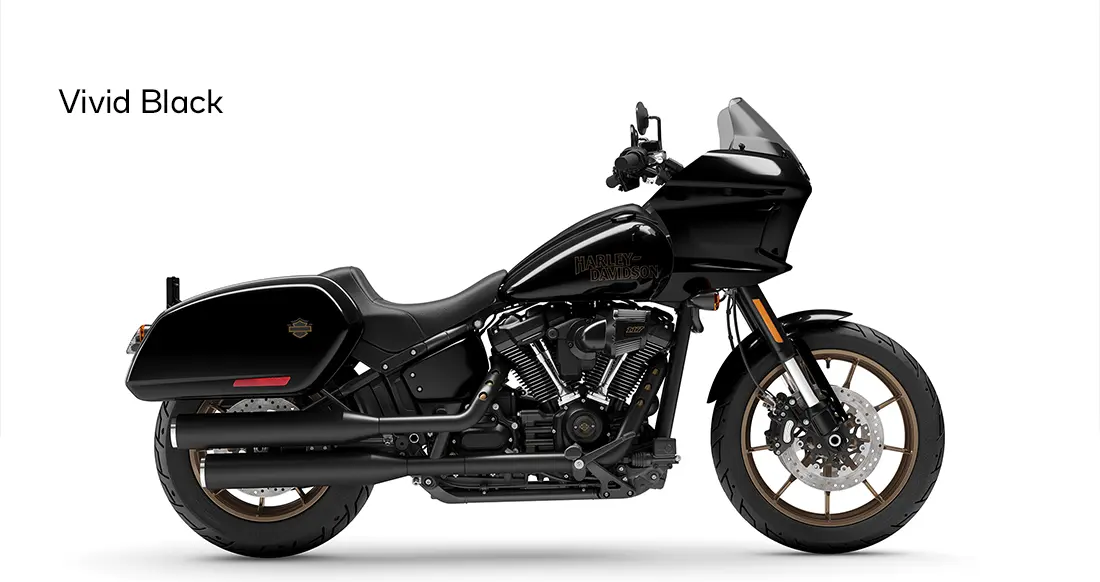

Vivid Black | ฿1,265,000 |

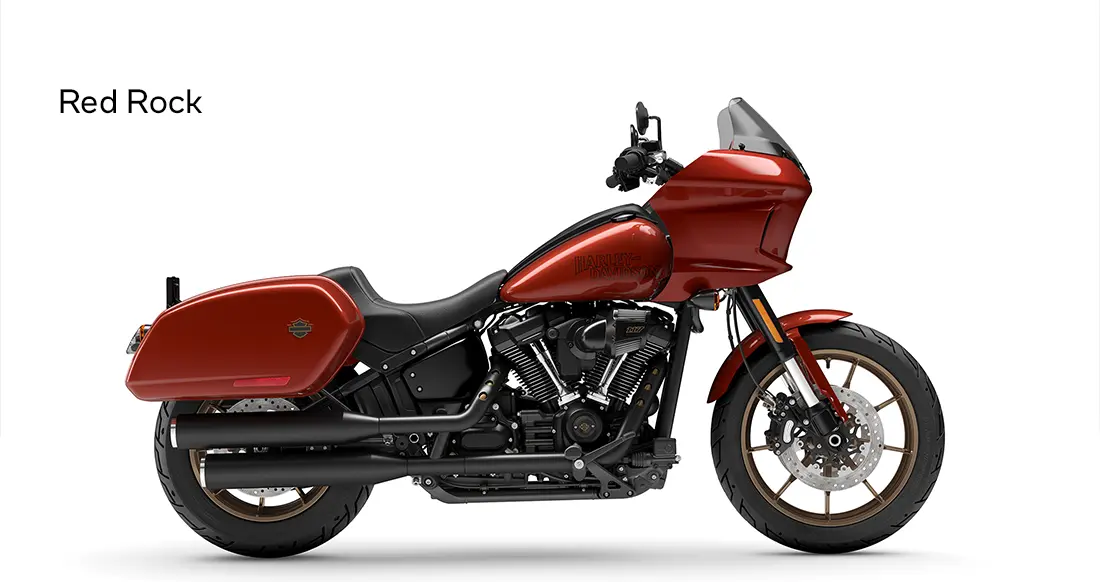

Red Rock | ฿1,266,000 |

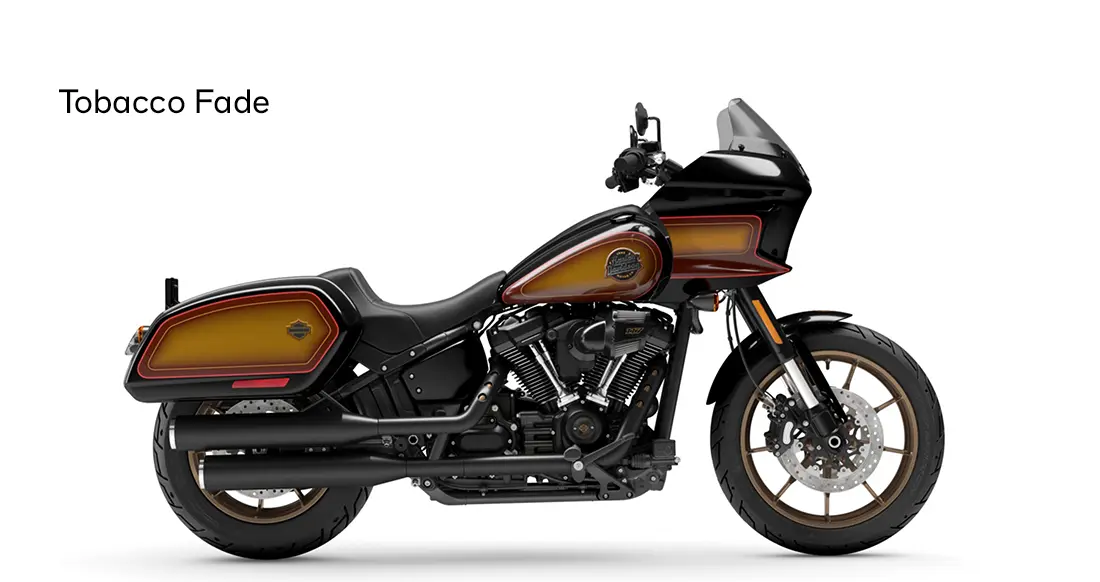

Tobacco Fade | ฿1,328,000 |
