COLOR OPTIONS
2024 Heritage Classic
A quintessential American cruiser, the Harley-Davidson® Heritage Classic 114 has showstopping vintage details and pure rock ‘n’ roll style.
KEY FEATURES

MILWAUKEE-EIGHT ™ 114 ENGINE
Full-throttle torque for the power you want, which you can feel every time you twist the throttle, along with the most exciting HD sound.

High-performance single rear shock
Easily adjustable monoshock rear suspension provides powerful cornering while maintaining the hardtail look.

Removable windshield
Whether you're touring or cruising in your heart's content, you can attach a windshield for longer journeys or remove it in seconds for a completely different look and feel on your ride.

Lockable and sealed rear bag
Sleek look with enough space to store your riding essentials.
DETAILED SPECS
Dimensions
Length | 2,415 mm. |
Seat Height, Laden | 680 mm. |
Height from ground | 120 mm. |
Front fork offset | 30 |
Rear range | 140 mm. |
Wheelbase | 1,630 mm. |
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 130/90B16,73H,BW |
Rear tire specifications | 150/80B16,77H,BW |
Fuel capacity | 18.9 liters |
Engine oil capacity (with filter) | 4.7 liters |
Shipping weight | 316 kg. |
Ready to ride weight | 330 kg. |
Engine
Engine | Milwaukee-Eight ™ 114 |
Cylinder size | 102 mm. |
Stroke duration | 114.3 mm. |
Engine capacity | 1,868 cc |
Compression ratio | 10.5:1 |
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | Short catalytic converter 2-into-2 |
Capacity
How to test engine torque | EC 134/2014 |
Engine torque | 155 Nm |
Engine torque (rpm) | 3250 |
Horsepower | 94 hp / 70 kW at 5020 rpm |
Right turning angle (degrees) | 27.3 |
Left turning angle (degrees) | 28.5 |
How to test fuel economy | EU 134/2014 |
Fuel economy | 5.5 liters/100 km. |
Drive System
Main propulsion system
| Chain gear ratio 34/46 |
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.454
|
Gear Ratios (overall) 3rd | 4.793
|
Gear Ratios (overall) 4th | 3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
| 49mm Dual Bending valved telescopic fork with triple clamp aluminum shock column; Integrated dual-value spring; "beer can" cap |
Rear shock | Independent hidden piston, single shock with spring, 56 mm stroke and hydraulic preload adjustment. |
Type of front wheel | Black or chrome spoked wheels (depending on the rim) |
Type of rear wheel | Black or chrome spoked wheels (depending on the rim) |
Types of brake calipers | 4 front pistons fixed and 2 rear pistons floating |
Brake disc type | Constant expansion brake disc |
Selectable wheel style types | Black or chrome, steel laced (based on trim) |
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and unique position lights, Zeppelin style tail lights, Bullet style tail lights, Bullet style light bar |
Gauges
| 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer. |
Color Options
Billiard Grey
| ฿1,218,000 |

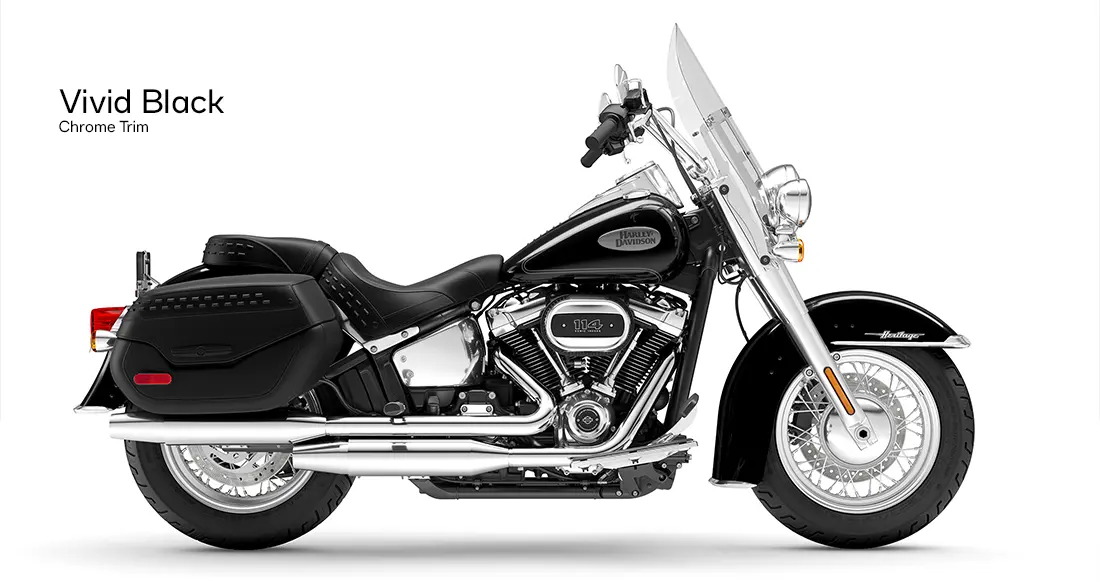

Vivid Black | ฿1,223,000 |
Alpine Green | ฿1,225,000 |
Red Rock / Vivid Black | ฿1,235,000 |

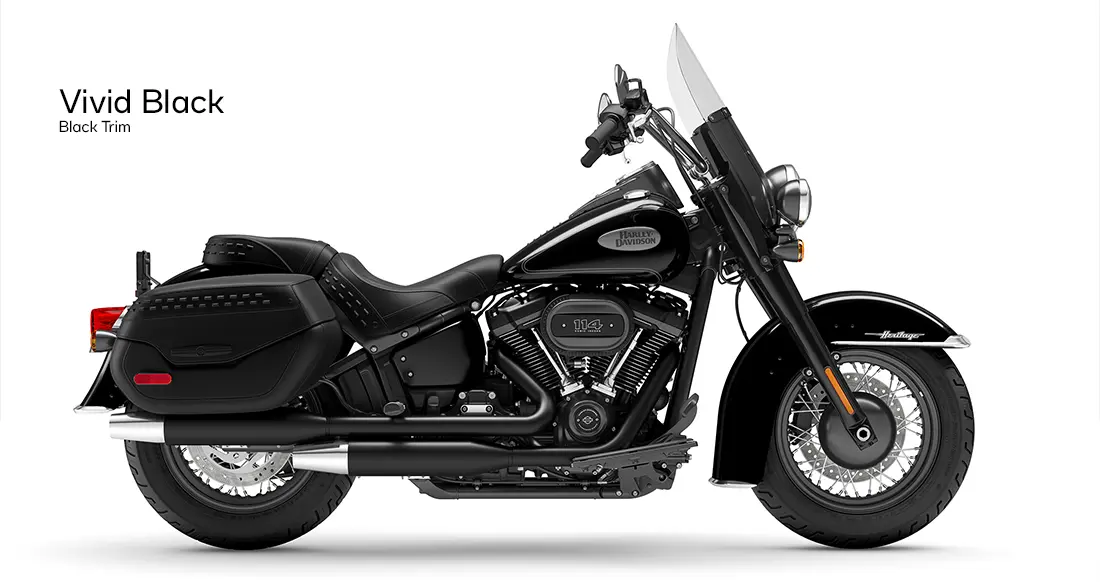

Vivid Black - Black Finish | ฿1,263,000 |

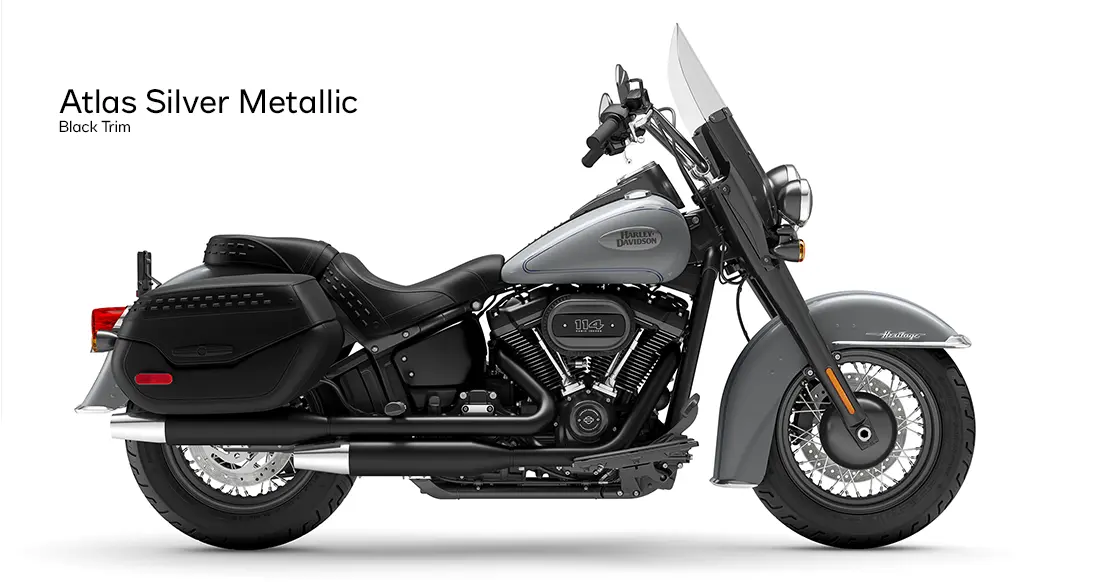

Atlas Silver Metallic - Black Finish | ฿1,265,000 |

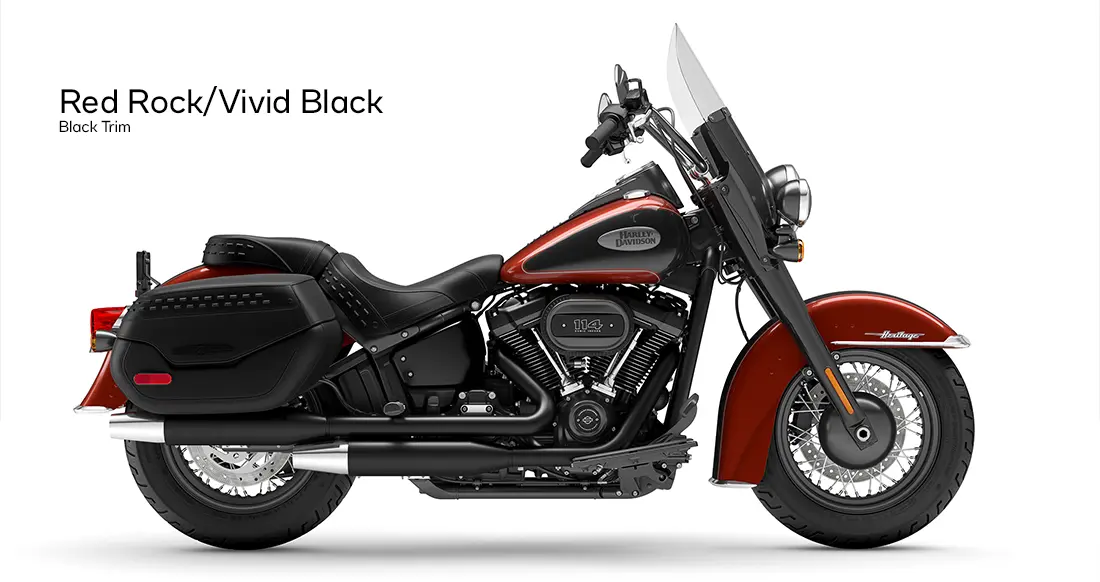

Red Rock / Vivid Black - Black Finish | ฿1,275,000 |
