2024 Fat Bob™ 114
A street-eater with an appetite for power, the Harley-Davidson® Fat Bob 114 is built with muscular style and brutish performance.
KEY FEATURES

MILWAUKEE-EIGHT ™ 114 ENGINE
Full-throttle torque for the power you want, which you can feel every time you twist the throttle, along with the most exciting HD sound.

Electronic cruise control system
For long distance running, nothing beats letting your bike do all the work.

Dual front disc brakes
High-performance dual disc brakes keep you in control

Racing style suspension
The racing-style inverted front forks feature single-cartridge technology that enhances handling and control performance.

2-into-2 exhaust pipe
Performance-focused upswept exhaust with custom contrasting paint finish
DETAILED SPECS
Dimensions
Length |
2,340 mm.
|
Seat Height, Laden |
710 mm.
|
Height from ground |
120 mm.
|
Front fork offset | 28 |
Rear range |
132 mm.
|
Wheelbase |
1,615 mm.
|
Types of tires | Dunlop ™ Harley-Davidson Series black-side bias front and rear tires |
Front tire specifications | 150/80-16,71H,BW |
Rear tire specifications | 180/70B16,77H,BW |
Fuel capacity |
13.2 liters
|
Engine oil capacity (with filter) |
4.7 liters
|
Shipping weight | 296 kg. |
Ready to ride weight |
306 kg.
|
Engine
Engine | Milwaukee-Eight ™ 114 |
Cylinder size |
102 mm.
|
Stroke duration |
114.3 mm.
|
Engine capacity | 1,868 cc |
Compression ratio |
10.5:1
|
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | Short catalytic converter 2-into-2 |
Capacity
How to test engine torque | EC 134/2014
|
Engine torque |
155 Nm
|
Engine torque (rpm) |
3500
|
Horsepower |
93 hp / 69 kW at 5020 rpm
|
Right turning angle (degrees) |
31
|
Left turning angle (degrees) |
32
|
How to test fuel economy | EU 134/2014 |
Fuel economy |
5.5 liters/100 km.
|
Drive System
Main propulsion system
|
Chain gear ratio 34/46
|
Gear Ratios (overall) 1st |
9.311 |
Gear Ratios (overall) 2nd |
6.454
|
Gear Ratios (overall) 3rd |
4.793
|
Gear Ratios (overall) 4th |
3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
| 43mm inverted cartridge single shock with three aluminum shock clamps; integrated three-value spring
|
Rear shock |
Independent hidden piston, single shock with spring, 56 mm stroke and hydraulic preload adjustment.
|
Type of front wheel | Denim Black aluminum frame with laser-engraved graphics |
Type of rear wheel |
Denim Black aluminum frame with laser-engraved graphics
|
Types of brake calipers |
4 front pistons fixed and 2 rear pistons floating
|
Brake disc type |
7-spoke black floating front and rear brake discs
|
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and unique position lights, combination LED multi-functional stop/tail/turn signals, Bullet style incandescent turn signals |
Gauges
| 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, odometer and driving distance measurement. |
Color Options
Billiard Grey
| ฿1,105,000 |

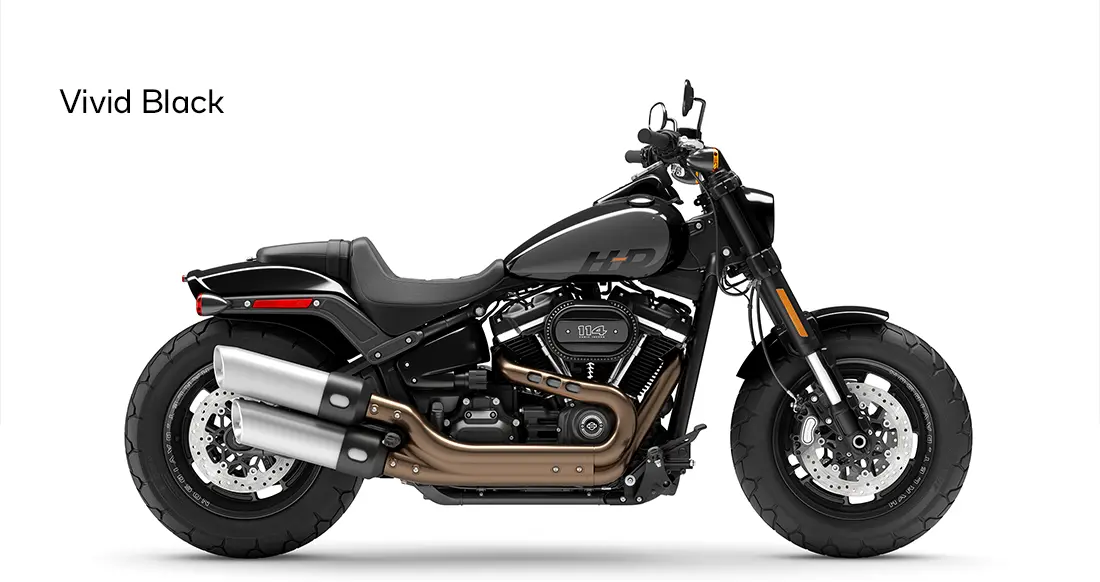

Vivid Black | ฿1,110,000 |
