2024
Breakout™ 117
Awaken your senses and steal the show from everyone.
Starting Price ฿1,240,000
COLOR OPTIONS
2024 Breakout™ 117
The Harley-Davidson Breakout 117 is a raked-out chrome cruiser that’s powered by the Milwaukee-Eight ™ 117 V-Twin engine.
KEY FEATURES
Milwaukee-Eight® 117 Engine
The air/oil-cooled engine is the pinnacle of torque and displacement in a standard Harley-Davidson factory-installed engine and transmission.
Heavy Breather
High-performance Heavy Breather intake with forward-facing exposed filter element flows more air into the engine.
Chrome Appeal
Polished chrome adorns everything from the fender supports, side covers, and muffler shields, to the turn signals, mirrors, and Heavy Breather intake.
Wheels
The 533 mm front and 457 mm centimeter rear cast aluminum wheels have 26 spokes with black finishes and machined details.
Two-Into-Two Exhaust
High-performance, offset shotgun exhaust improves mid-range torque and produces a strong, stirring note.
Chassis
A Softail® chassis reduces weight and improves rigidity while maintaining the classic look of a hard tail.
DETAILED SPECS
Dimensions
Length | 2,340 mm.
|
Seat Height, Laden | 665 mm.
|
Height from ground | 115 mm.
|
Front fork offset | 34
|
Rear range | 145 mm.
|
Wheelbase | 1,695 mm. |
Types of tires | Michelin ™ Scorcher "11" front and rear tires
|
Front tire specifications | 130/60B21,63H,BW
|
Rear tire specifications | 240/40R18,79V,BW
|
Fuel capacity | 18.9 liters
|
Engine oil capacity (with filter) | 4.7 liters
|
Shipping weight | 296 kg. |
Ready to ride weight | 310 kg.
|
Engine
Engine | Milwaukee-Eight ™ 117 |
Cylinder size | 103.5 mm.
|
Stroke duration | 114.3 mm.
|
Engine capacity |
1,923 cc
|
Compression ratio | 10.2:1
|
Fuel system | Sequential Electronic Fuel Injection (ESPFI) |
Exhaust | 2-in-2 stacked cathode pipe
|
Capacity
How to test engine torque | EC 134/2014
|
Engine torque | 168 Nm
|
Engine torque (rpm) | 3500
|
Horsepower | 102 hp / 76 kW at 5020 rpm |
Right turning angle (degrees) | 26.8
|
Left turning angle (degrees) | 26.8
|
How to test fuel economy | EU 134/2014
|
Fuel economy | 5.6 liters/100 km.
|
Drive System
Main propulsion system
| Chain gear ratio 34/46
|
Gear Ratios (overall) 1st | 9.311 |
Gear Ratios (overall) 2nd | 6.454
|
Gear Ratios (overall) 3rd | 4.793
|
Gear Ratios (overall) 4th | 3.882
|
Gear Ratios (overall) 5th | 3.307
|
Gear Ratios (overall) 6th | 2.79
|
Chassis
Front shock
| 49mm Dual Bending valve telescopic fork with three aluminum shock clamps; integrated dual-value spring
|
Rear shock | Independent hidden piston, single shock with spring, 43 mm stroke and hydraulic preload adjustment without tools. |
Type of front wheel | 29 spoke aluminum, Gloss Black color |
Type of rear wheel | 29 spoke aluminum, Gloss Black color |
Types of brake calipers | 4 front pistons fixed and 2 rear pistons floating
|
Brake disc type | 7-spoke black floating front and rear brake discs |
Electric
Lights (as per country regulation), indicator
| All LED lights, low beam, high beam and unique position lights, combination LED stop/tail/turn signals, bullet incandescent turn signals, combination LED stop/tail/turn signals
|
Gauges
| 2.14 inch LCD display with speedometer, gear, odometer, fuel level, clock, trip, range indicator and tachometer. |
Color Options

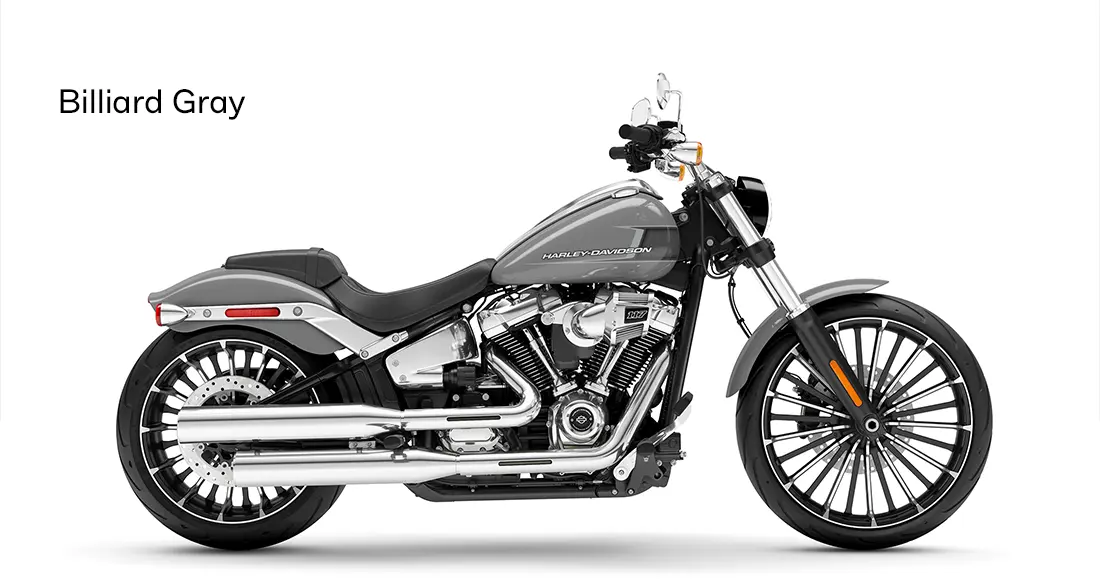

| Billiard Grey
| ฿1,240,000 |

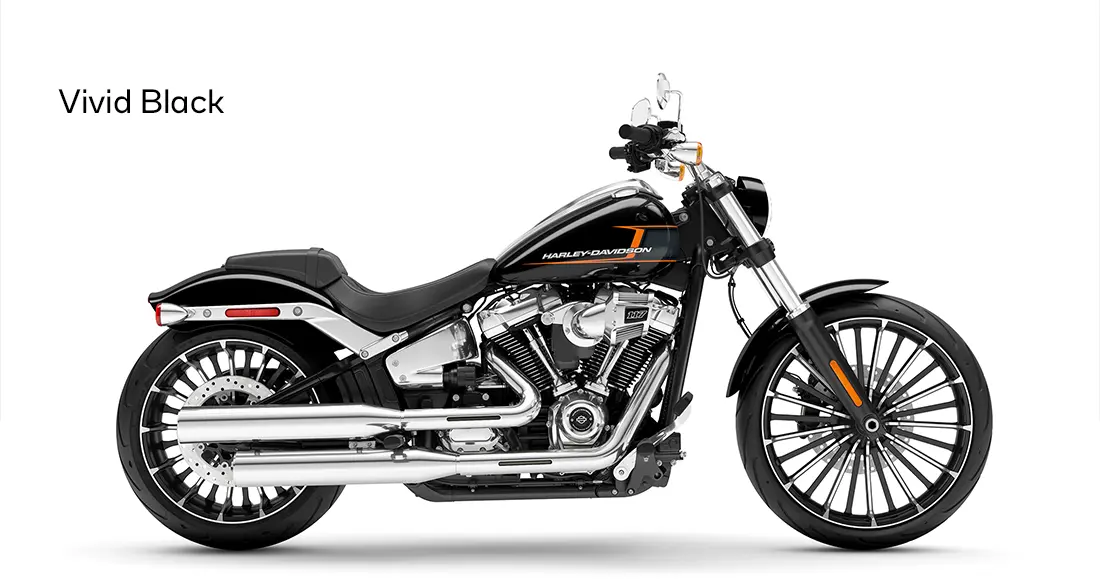

| Vivid Black | ฿1,245,000 |
| Alpine Green | ฿1,247,000 |
| Blue Burst | ฿1,247,000 |

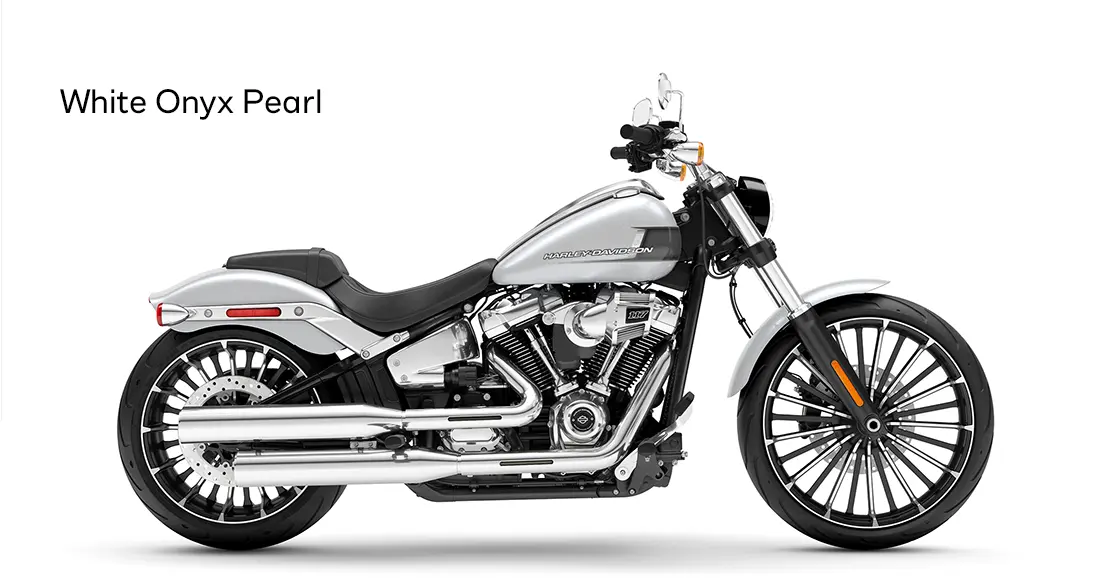

| White Onyx Pearl | ฿1,247,000 |
