2026
FAT BOY®
“Every time I park it, I catch myself looking back at it.
I’ve never done that with any other bike I’ve owned,
but there’s something about the Fat Boy
that makes you want to take it in for a second before you walk away.
COLOUR OPTIONS
Built in the Image of Bold
Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson's most legendary silhouettes. The 2026 Fat Boy is bold by design.
คุณสมบัติหลัก

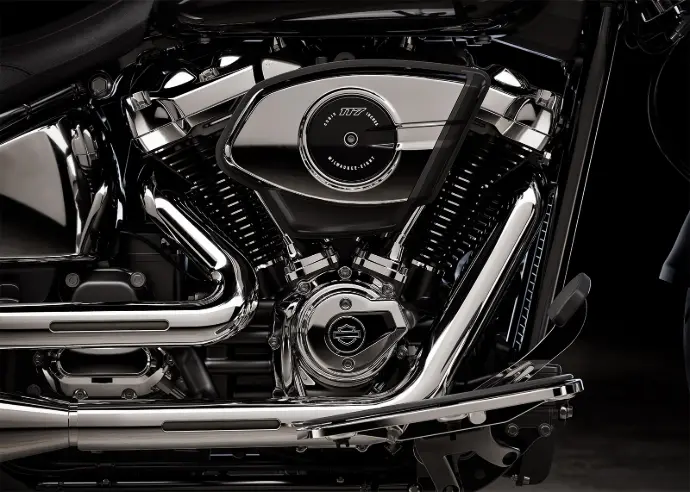

Punchy Milwaukee-Eight 117 Custom Motor
The Milwaukee-Eight 117 feeds the Fat Boy exactly what it was built for: big torque and roll-on power that turns its solid, planted stance into something that moves with surprising quickness.

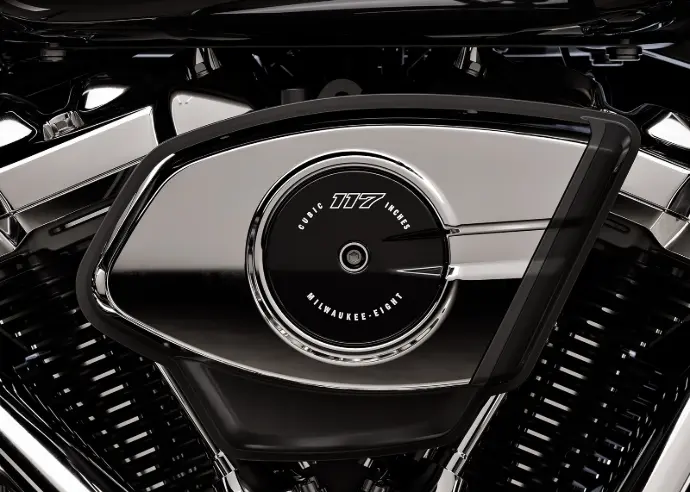

Airflow-Optimized Touring Intake
Designed to move more air through the Milwaukee-Eight 117, the Touring Intake helps maintain steady power and smooth throttle response mile after mile.

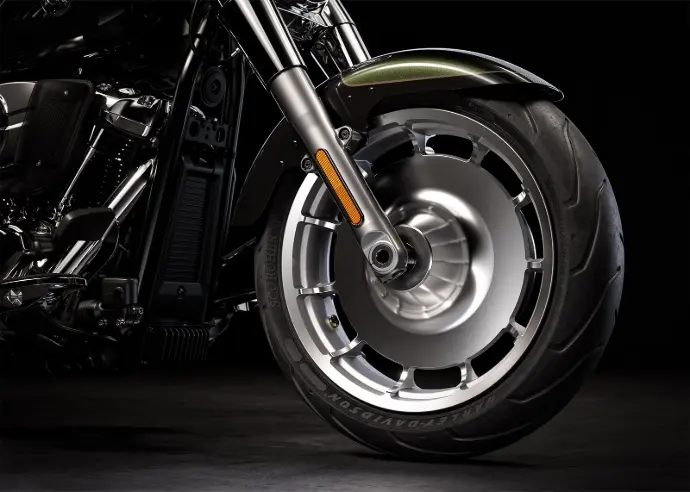

Classic Machined Lakester Wheels
Solid Lakester cast aluminum wheels, paired with wide front and rear tires, give the Fat Boy its unmistakable steamroller stance and planted look from every angle.

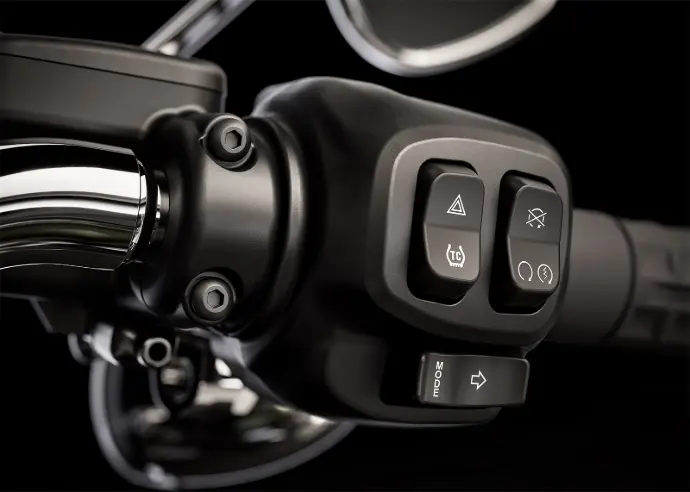

Ride-Ready Hand Control
With a thumb’s flick, you’ve got more command than ever. Switch between Road, Rain, and Sport modes on the fly, set cruise control when the highway stretches out, and trust built-in Rider Safety Enhancements — Cornering ABS, Traction Control, Drag-Torque Slip Control, and TPMS — to hold the line so you can focus on what’s in front of you.

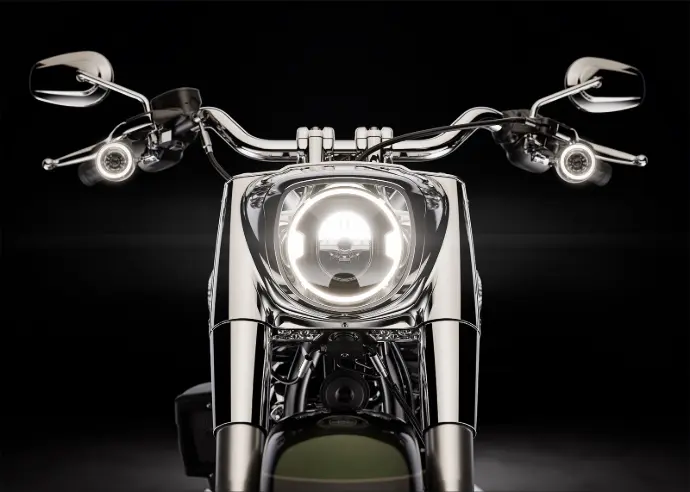

Signature Headlamp Nacelle + LED Lighting All Around
A sculpted chrome nacelle frames the front end of the Fat Boy, lit by a powerful 7" LED headlamp. Bright LED signals complete the bike’s all-around LED lighting package, blending timeless style with modern visibility. It’s a classic face, sharpened through a modern lens.
DETAILED SPECS
ขนาดตัวรถ
ความยาว |
93.1 in. |
ความกว้าง | 40 in. |
Seat Height, Unladen
| 25.9 in |
Ground Clearance
| 4.9 in. |
Rake | 30 |
Trail
| 4.1 in. |
ฐานล้อ | 65 in. |
Tire, Type | Michelin® Scorcher 31, front and rear |
Tires, Front Specification
| 160/60R18,70V,BW |
Tires, Rear Specification
| 240/40R18,79V,BW |
ความจุเชื้อเพลิง | 5 gal. |
Oil Capacity (w/filter)
| 5 qt. |
Weight, In Running Order
| 694 lb. |
เครื่องยนต์
Engine +
| Milwaukee-Eight® 117 Custom |
Bore
| 4.075 in. |
Stroke
| 4.5 in. |
Displacement
| 117 cu in |
อัตราส่วนการอัด | 10.3:1 |
ระบบน้ำมันเชื้อเพลิง | Electronic Sequential Port Fuel Injection (ESPFI) |
ไอเสีย | 2-into-2 staggered; catalyst in muffler |
สมรรถนะ
วิธีทดสอบแรงบิดเครื่องยนต์ | J1349 |
แรงบิดเครื่องยนต์+ |
126 ft-lb |
แรงบิดเครื่องยนต์ (รอบต่อนาที) | 3000 |
แรงม้า | 103 HP / 77 kW @ 4800 rpm |
มุมเลี้ยวขวา (องศา) | 25.6 |
มุมเลี้ยวซ้าย (องศา) | 25.6 |
วิธีทดสอบการประหยัดเชื้อเพลิง | Estimated City/Hwy |
การประหยัดเชื้อเพลิง | 47 mpg
|
ระบบขับเคลื่อน
ระบบขับเคลื่อนหลัก | Chain, 34/46 ratio |
อัตราทดเกียร์ 1 (ทั้งหมด) | 9.311 |
อัตราทดเกียร์ 2 (ทั้งหมด) | 6.45 |
อัตราทดเกียร์ 3 (ทั้งหมด) | 4.793 |
อัตราทดเกียร์ 4 (ทั้งหมด) | 3.882 |
อัตราทดเกียร์ 5 (ทั้งหมด) | 3.307 |
อัตราทดเกียร์ 6 (ทั้งหมด) |
2.79 |
แชสซี
โช้คหน้า | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers |
โช้คหลัง | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
ประเภทของล้อหน้า+ | Machined, Lakester cast aluminum |
ประเภทของล้อหลัง+ | Machined, Lakester cast aluminum |
| Brakes, Caliper Type | 4-piston fixed front and 2-piston floating rear |
Brakes, Rotor Type | Front and rear black, Split 7-spoke floating rotors |
หลอดไฟ
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals+
| Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals |
มาตรวัด |
4-inch (102 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
|
ตัวเลือกสี

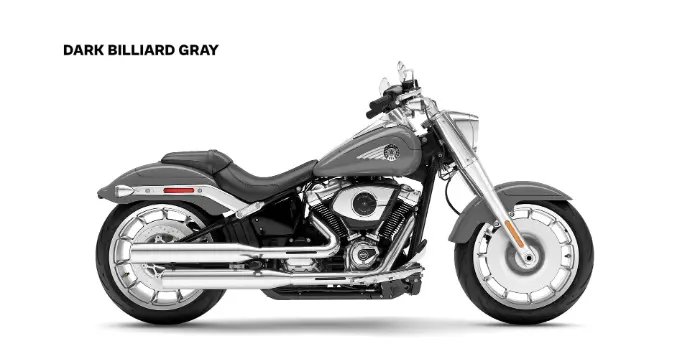

Dark Billiard Gray
| 1,283,000 ฿ |

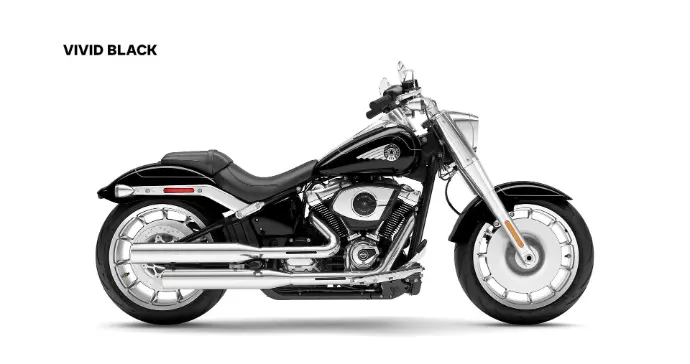

| Vivid Black | 1,289,000 ฿ |

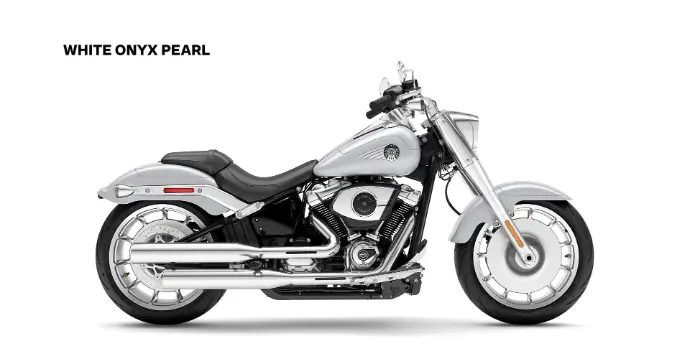

| White Onyx Pearl | 1,291,000 ฿ |
Brilliant Red
| 1,291,000 ฿ |

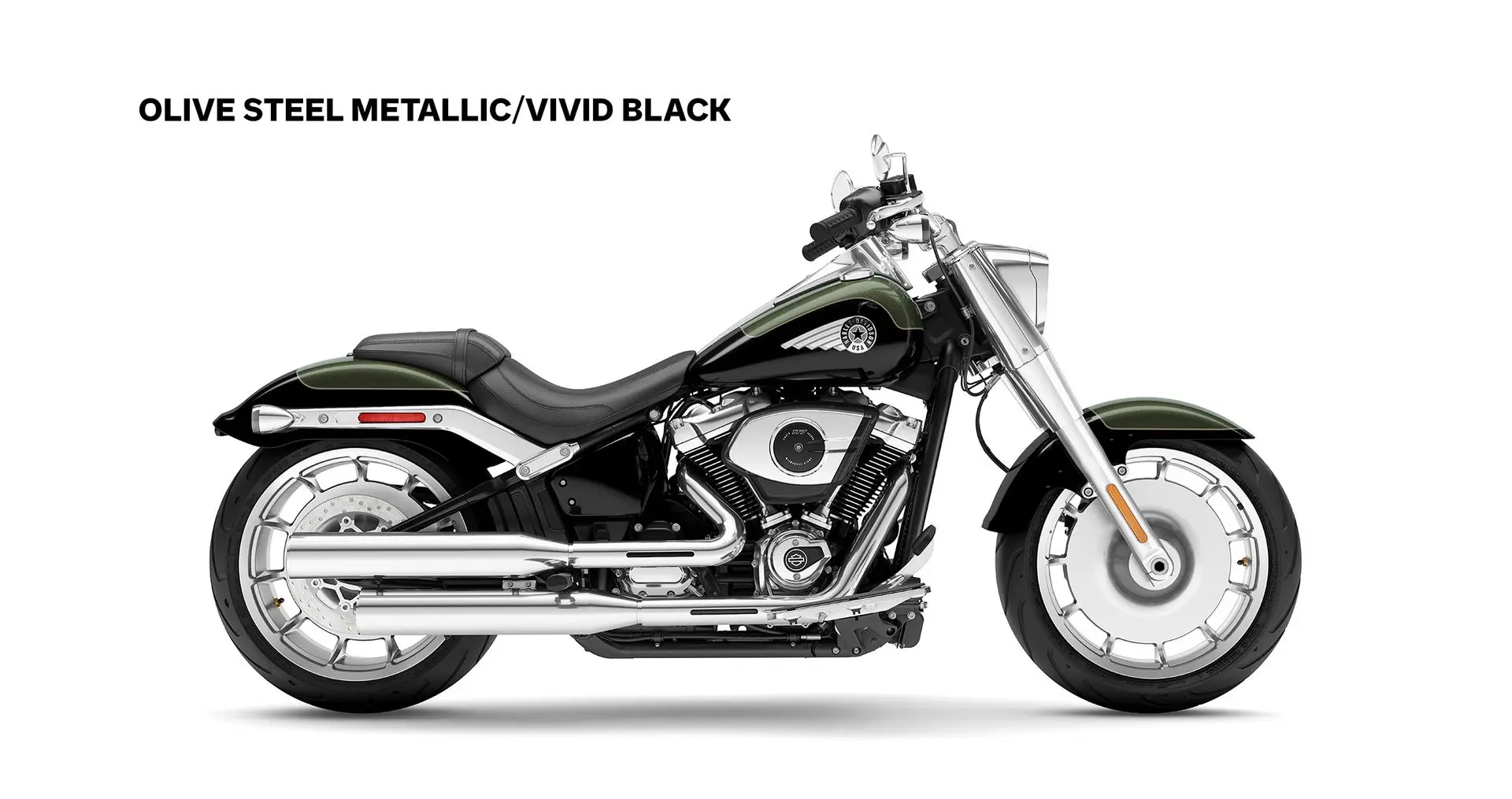

Olive Steel Metallic/Vivid Black | 1,300,000฿ |
